Part Number:
Status:
Description:
0190390010
Active
Avikrimp™ Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter
4.57mm (.180")
Series
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Documents:
Drawing (PDF)
Agency Certification
CSA
UL
LR18689
E152602
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19039
Fits Male Plug Dia. 4.57mm (.180")
Yes
Avikrimp™
Snap Receptacle
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Packaging Type
Tab Thickness
Tab Width
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
Nylon (PA)
None
Brass
Tin
Tin
Nylon
Straight
Bag
N/A
N/A
-40°C to +105°C
Crimp or Compression
3.81mm (.150") max.
14, 16
1.00 - 2.50
Search Parts in this Series
19039Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640012100
Crimp Head for the 0640052100
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
Per Wire Specification
Material Info
Old Part Number
BRB-8180N

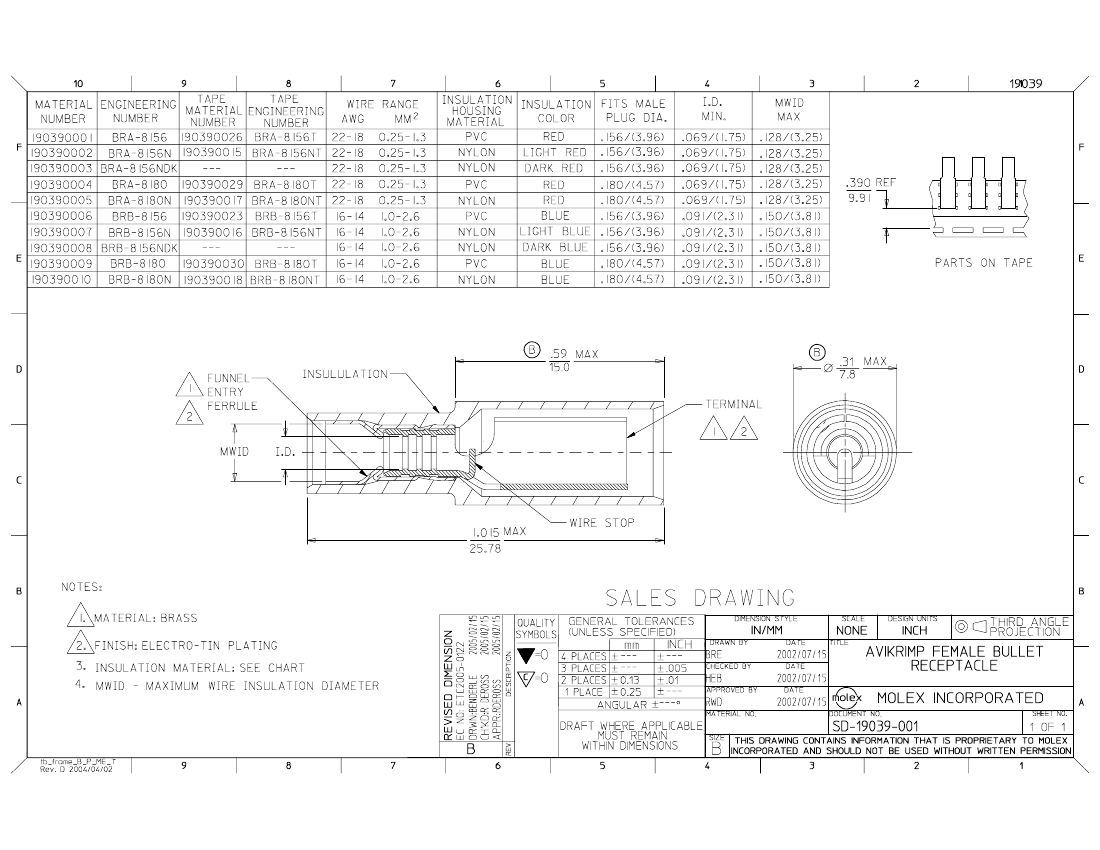

Reference - Drawing Numbers
Sales Drawing
SD-19039-001
