C-340-38 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> C-340-38

Preview

C-340-38: DescriptionVersaKrimpâ¢ Ring Tongue Terminal for 10-12 AWG Wire,; CategoryThe connector terminals; File Size78KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

C-340-38 Overview

VersaKrimpâ¢ Ring Tongue Terminal for 10-12 AWG Wire,

C-340-38 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	5 mm2
Wire gauge	10 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0191930137

Active

VersaKrimp™ Ring Tongue Terminal for 10-12 AWG Wire, 3/8" (M9) Stud Size

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR18689

E32244

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19193

Type I Noninsulated; Class 1 and 2

Yes

AS20659-128, MS20659-128

VersaKrimp™

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Wire Size AWG

Wire Size mm²

Closed - Brazed

None

Tin

Bag

100

2.5

100

2.5

3/8" (M9)

10, 12

3.30 - 5.00

Material Info

Old Part Number

C-340-38

Search Parts in this Series

19193Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640030100

Crimp Head for the 0640070100

AT-200™ Pneumatic

Hand Tool

Reference - Drawing Numbers

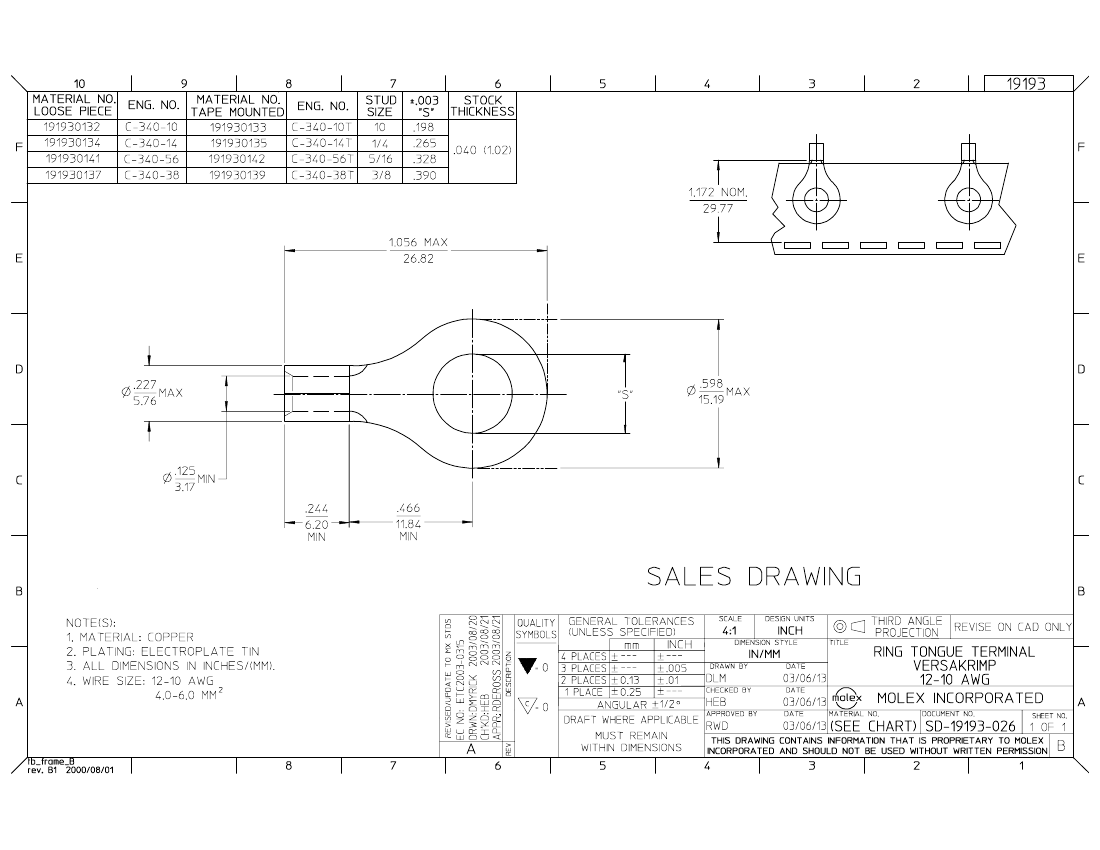

Sales Drawing

SD-19193-026

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

C-340-38 Related Products

	C-340-38	191930137
Description	VersaKrimpâ¢ Ring Tongue Terminal for 10-12 AWG Wire,	versakrimp? ring tongue terminal for 10-12 awg wire, 3/8" (M9) stud size
Reach Compliance Code	unknow	compliant
ECCN code	EAR99	EAR99
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL
Conductor cross section	5 mm2	6 mm2
Wire gauge	10 AWG	10 AWG
Base Number Matches	1	1
