Product manual
Vandal-proof MSM switches
CONTENTS
1. DESCRIPTION
2. DATA AND DIMENSIONAL DRAWINGS
2.1. Data
2.2. Dimensions Mounting Diameter 16mm
Dimensions Mounting Diameter 19mm
Dimensions Mounting Diameter 22mm
Dimensions Mounting Diameter 30mm
2.3. Actuator tolerance range
2.4. Cut out
2.5. Tightening torque
2.6. Switching_symbols
2.7. Accessories
3. ORDER NUMBER
3.1. Lettering
4. PACKAGING
5. QUALIFICATION TESTS
5.1. IP degree of protection
5.2. IK protection class
5.3. Salt spray test
6. Approvals
7. ROHS COMPLIANT
Changes that contribute to technical improvement are subject to alternations
Page
1 of 17
Production date:
05.11.2004
Produced by:
Ullmer
Modification date:
26.04.2006
Modified by:
Birmelin
Modification No. Data sheet No.
Index
9224
105.9502
f
Print date: 26.04.2006 11:47
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com
1
Description
Both the housing and the actuator of the vandal-proof MSM switch are made of high-quality stainless
steel. Use of this stable and weather-resistant material means that the switch is particularly suitable
for use in harsh environments. The MSM is available with mounting diameters of 16, 19, 22 and
30mm. Different types of contact cover a permissible switching voltage range from 5 to 250 V AC, and
switching currents are permissible from 0.1 to 10 Ampere. The MSM is equipped with flat-pin plugs to
permit fast connection. The cables are plugged onto the micro switch, and this is subsequently
plugged onto the previously screwed-in switch. Point and ring-illuminated versions are available for
applications at night or as an optical status display.
2
Data and dimensional drawings
Technical data
Micro switch for
electrical rating
Electrical data
Contact material
Switching voltage max. (V)
Switching voltage min.
Switching current max.
Rated braking capacity
(V)
(A)
(W)
Gold
30
3
0.1
3
200,000
Silver
125 / 250
5
5/3
1250
200,000
1,500,000
< 50 mOhm
< 150 mOhm
> 100,000 kOhm
< 5 ms
< 30 mOhm
< 90 mOhm
> 100,000 kOhm
< 5 ms
< 30 mOhm
< 90 mOhm
> 100,000 kOhm
< 5 ms
Silver
250
5
10
2500
50,000
0.1 A
30 V DC
5A
3A
125 VAC 250 VAC
10 A
250 V AC
Lifetime (
rated braking capacity )
Lifetime
(160 mA at 48 V DC)
Initial contact resistance, new
Initial contact resistance
after 1 million cycles
Insulation resistance
(IEC 512-2)
Contact bounce time
Changes that contribute to technical improvement are subject to alternations
Page
2 of 17
Production date:
05.11.2004
Produced by:
Ullmer
Modification date:
26.04.2006
Modified by:
Birmelin
Modification No. Data sheet No.
Index
9224
105.9502
f
Print date: 26.04.2006 11:47
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com
Micro switch for
electrical rating
Mechanical data
Actuating force
Actuating travel
Degree of protection
(N)
(mm)
(IP)
0.1 A
30 V DC
5A
3A
125 VAC 250 VAC
10 A
250 V AC
3.7
0.8
67
06
07
3.7
0.8
67
06
07
3.7
0.8
67
06
07
Shock resistance DIN EN 50102
(IK), mounting diameter 16
Shock resistance DIN EN 50102
(IK), mounting diameter 19; 22; 30
Climatic data
Operating/storage temp.
(°C)
- 25 to + 85
- 25 to + 85
- 25 to + 85
Ring illumination
Supply voltage
Ring illumination
(V DC)
24
24
24
Point illumination
Characteristics
red LED
Point illumination
Forward current max.
40 mA
Forward voltage at
10 mA = 1.6 V DC
Forward voltage max.
= 2.0 V DC
Forward current max.
40 mA
Forward voltage at
10 mA = 2.0 V DC
Forward voltage max.
= 2.6 V DC
Forward current max.
20 mA
Forward voltage at
10 mA = 3.2 V DC
Forward voltage max.
= 3.7 V DC
Forward current max.
40 mA
Forward voltage at
10 mA = 1.6 V DC
Forward voltage max.
= 2.0 V DC
Forward current max.
40 mA
Forward voltage at
10 mA = 2.0 V DC
Forward voltage max.
= 2.6 V DC
Forward current max.
20 mA
Forward voltage at
10 mA = 3.2 V DC
Forward voltage max.
= 3.7 V DC
Forward current max.
40 mA
Forward voltage at
10 mA = 1.6 V DC
Forward voltage max.
= 2.0 V DC
Forward current max.
40 mA
Forward voltage at
10 mA = 2.0 V DC
Forward voltage max.
= 2.6 V DC
Forward current max.
20 mA
Forward voltage at
10 mA = 3.2 V DC
Forward voltage max.
= 3.7 V DC
Characteristics
green LED
Point illumination
Characteristics
blue LED
Point illumination
Material
Individual component
Housing
Actuator
Light conductor
(point illumination)
Illuminated ring
(ring illumination)
gasket
Page
3 of 17
Production date:
05.11.2004
Produced by:
Ullmer
Modification date:
26.04.2006
material
Stainless steel 1.4305
Stainless steel 1.4305
PC
PC
NBR70
Changes that contribute to technical improvement are subject to alternations
Modified by:
Birmelin
Modification No. Data sheet No.
Index
9224
105.9502
f
Print date: 26.04.2006 11:47
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com
Component dimensions

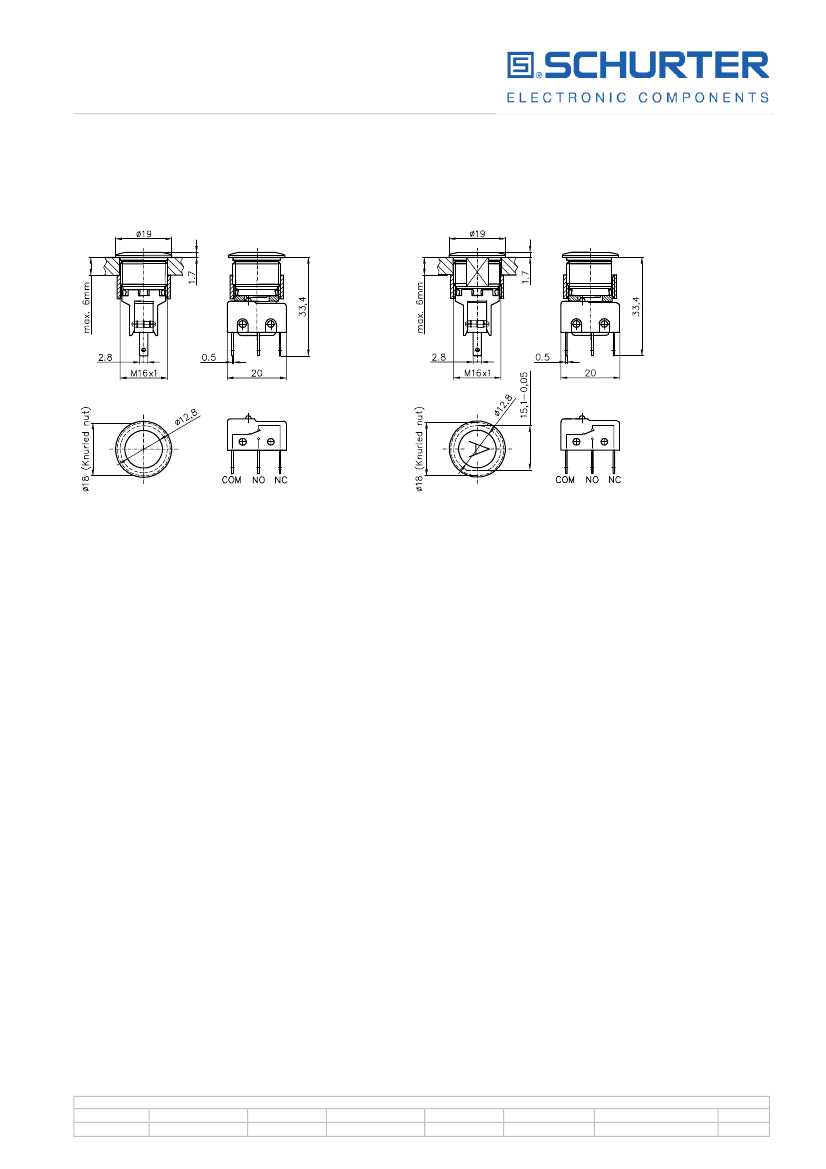

MSM16 ST
MSM16 LE
Changes that contribute to technical improvement are subject to alternations
Page
4 of 17
Production date:
05.11.2004
Produced by:
Ullmer
Modification date:
26.04.2006
Modified by:
Birmelin
Modification No. Data sheet No.
Index
9224
105.9502
f
Print date: 26.04.2006 11:47
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com

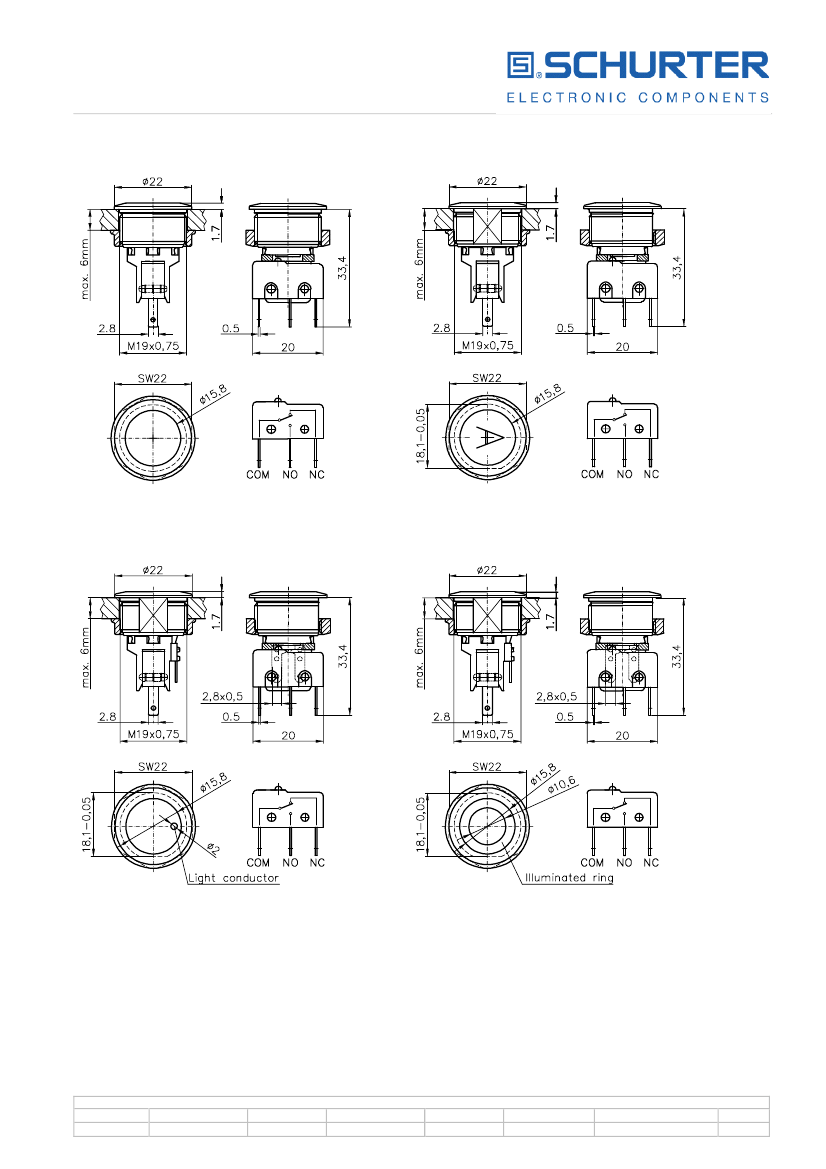

MSM19 ST
MSM19 LE
MSM19 PI
MSM19 RI
Changes that contribute to technical improvement are subject to alternations
Page
5 of 17
Production date:
05.11.2004
Produced by:
Ullmer
Modification date:
26.04.2006
Modified by:
Birmelin
Modification No. Data sheet No.
Index
9224
105.9502
f
Print date: 26.04.2006 11:47
