Q9020018 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> Q9020018

Preview

Q9020018: DescriptionParallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size209KB，3 Pages; ManufacturerPETERMANN-TECHNIK; Websitehttps://www.petermann-technik.de/; Environmental Compliance

Download Datasheet Parametric View All

Q9020018 Overview

Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN

Q9020018 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PETERMANN-TECHNIK
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	AT-CUT; TR, 7 INCH
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

FEATURES

- HIGH RELIABILITY FOR LOW COST

- CHEAPEST AVAILABLE SMD-CRYSTAL IN CERAMIC PACKAGE WITH GLASS SEALED CERAMIC COVER

- EXCELLENT CLOCK SIGNAL GENERATUR FOR CPU'S

MINIATURE SMD-CRYSTAL SERIES

PACKAGE DIMENSIONS

FREQUENCY

MODE OF VIBRATION

RESONANCE RESISTANCE

FREQUENCY TOLERANCE AT 25°C

WORKING TEMPERATURE RANGE

TEMPERATURE STABILITY

AGING

LOAD CAPACITANCE

SHUNT CAPACITANCE C0

DRIVE LEVEL

INSULATION RESISTANCE

STORAGE TEMPERATURE RANGE

RoHS

DELIVERY FORM

MARKING

MANUFACTURER

AVM PART NUMBER

CUSTOMER PART NUMBER

ORDERING CODE

PETERMANN-TECHNIK P/N

SMD03025/4CC

4pad ceramic body with glass sealed ceramic cover

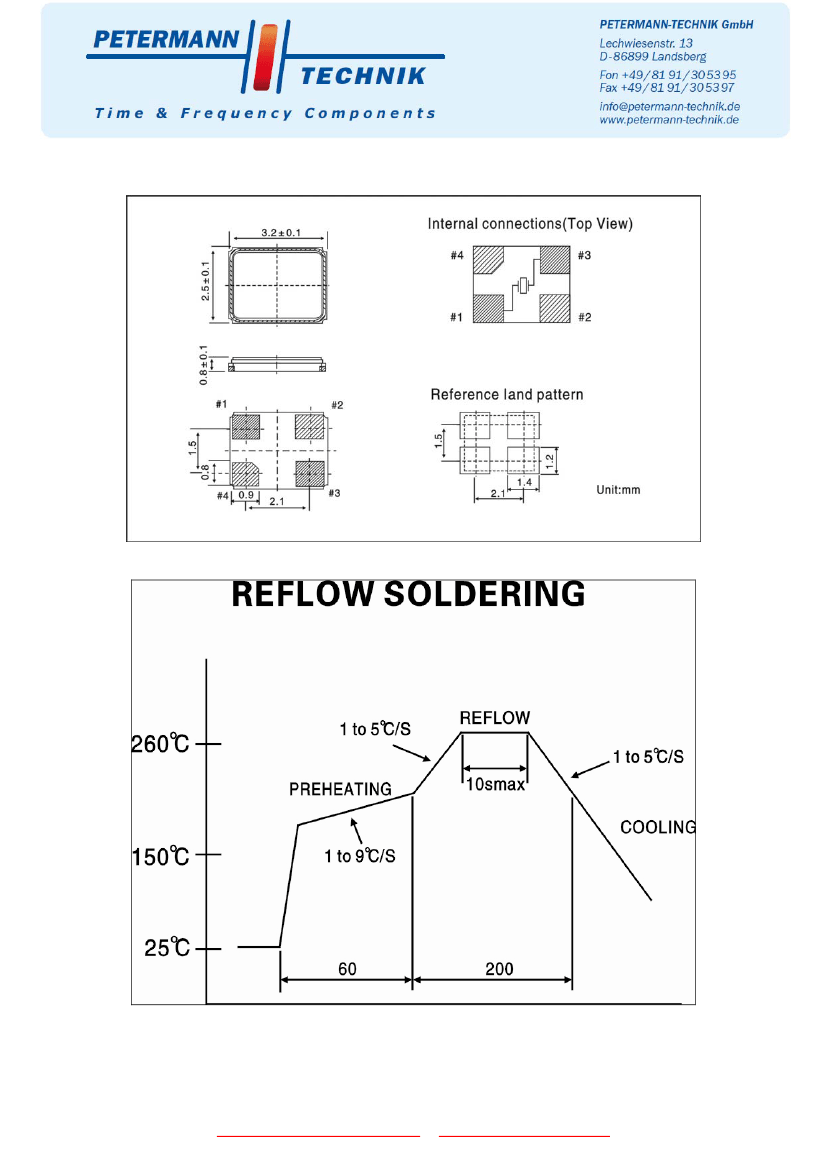

see drawing

25.000 MHz

AT-FUNDAMENTAL

40

max.

+-30 ppm

0/+70°C

+-30 ppm (over 0/+70°C, reference +25°C)

+-3 ppm max. per year

18 pF

2.0 pF max.

100 µW max.

>500 M DC/100V +-10%

-55/+125°C

In accordance with the RoHS guideline 2002/95EC.

Glass seal contain low share of Pb.

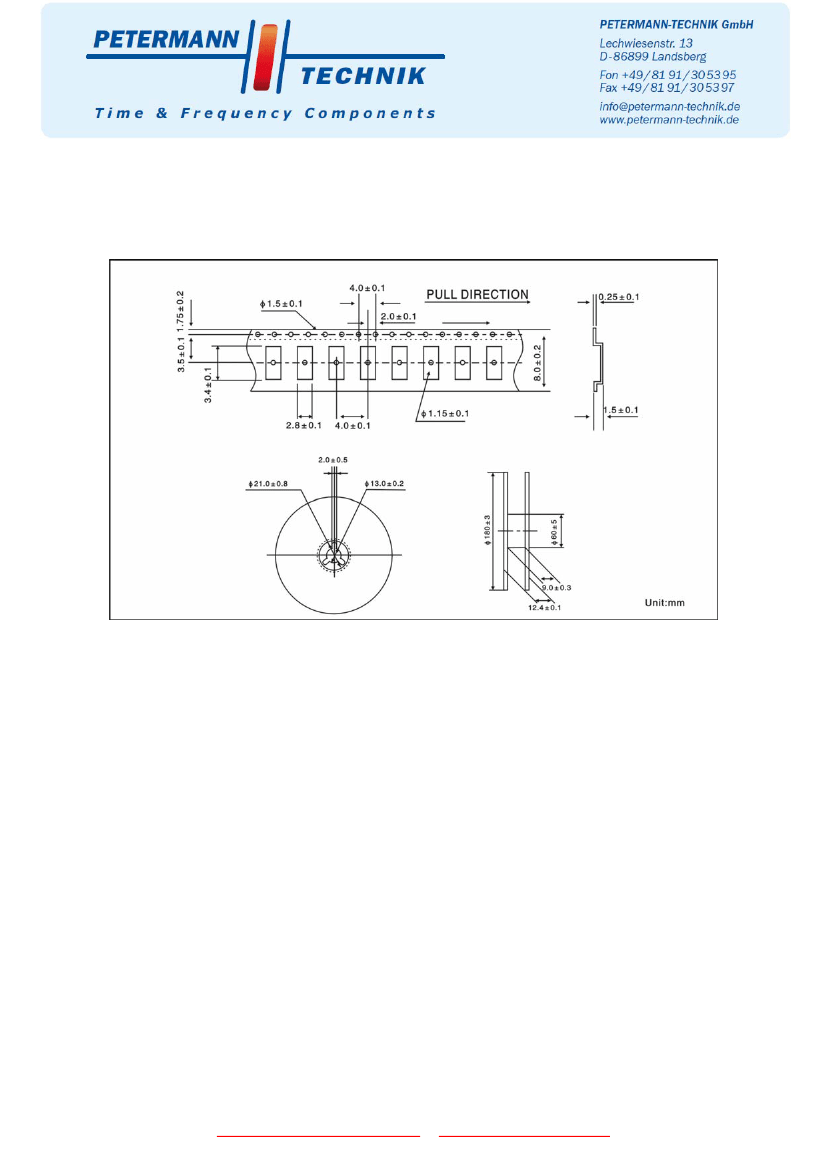

Tape & Reel (3.000 pcs per reel)

Line 1 = 25181

Line 2 = xxxx (date code)

TJE / CHINA (TS16949/ISO14001 qualified)

124QFS113

SMD03025/4CC 25.000 MHz Q9020018

Q9020018

Compared to the basic specification Version 01 / REV. 00 of November 21, 2012, following has been changed for the

specification Version 01 / REV. 01 of January 14, 2013:

-

Part number of AVM has been added.

Specification: Version 01 / REV. 01 / January 14, 2013

http://www.petermann-technik.de | info@petermann-technik.de

Page 1 / 3
