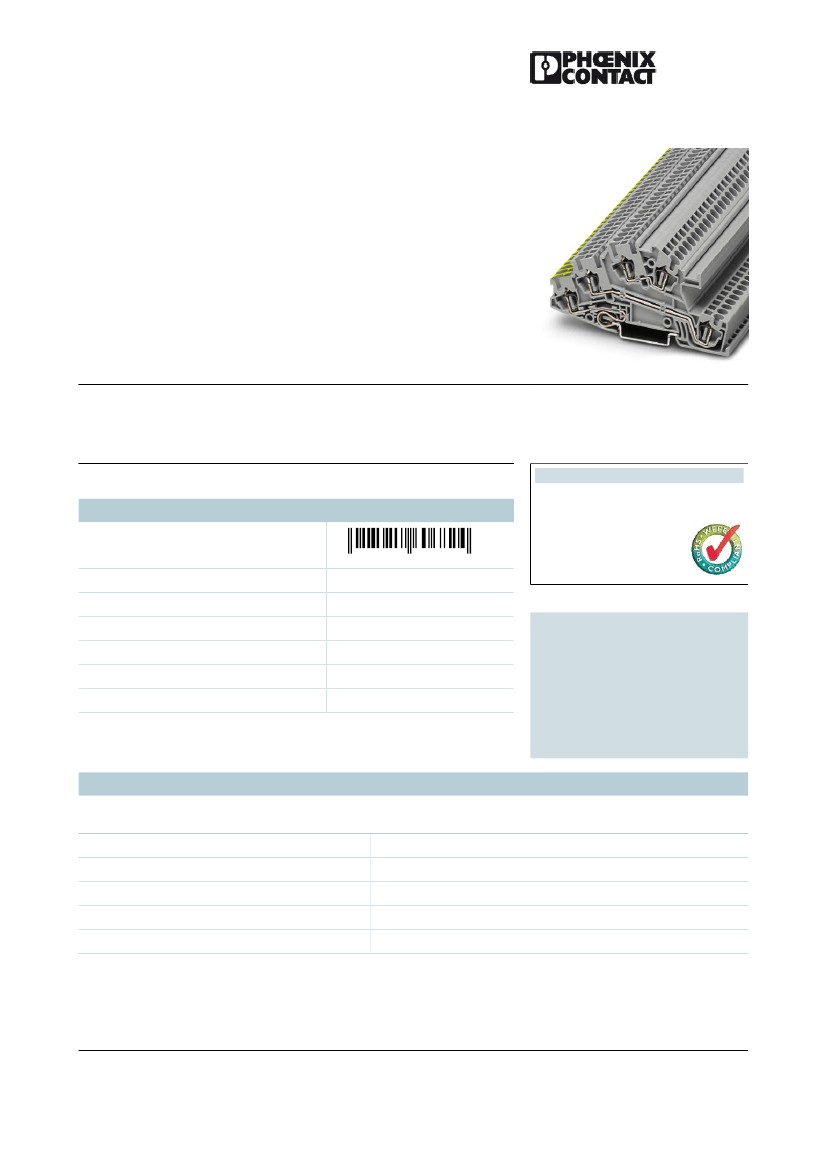

Extract from the online
catalog
STI 2,5-PE/L/L
Order No.: 3031830
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3031830
Installation ground terminal block, Spring-cage connection, Cross
section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Color: gray,
Mounting type: NS 35/7,5, NS 35/15
Product notes
Commercial data
EAN
4
017918
606824
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
A622
50 Pcs.
85369010
0.01661 KG
0.015482 KG
Page 288 (C-3-2013)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
3
5
gray
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 9
Aug 13, 2014
STI 2,5-PE/L/L
Order No.: 3031830
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3031830
General
Maximum load current
Current carrying capacity of the neutral busbar
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current (lower level)
Additional text
Nominal current I
N
(lower level)
Nominal voltage U
N
24 A (with 4 mm² conductor cross section)
140 A
4 kV
3
III
I
IEC 60947-7-1 / IEC 60947-7-2
24 A
with 4 mm² conductor cross section
24 A
400 V (phase conductor/phase conductor)
250 V (phase conductor/PE)
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Power frequency withstand voltage setpoint
Result of power-frequency withstand voltage test
Checking the mechanical stability of terminal
points (5 x conductor connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
ja
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.08 mm² / 0.1 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Test passed
0.08 mm²
5N
2.5 mm²
50 N
4 mm²
60 N
Test passed
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 9
Aug 13, 2014
STI 2,5-PE/L/L
Order No.: 3031830
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3031830
Tight fit on carrier
Setpoint
Result of tight fit test
Requirements, voltage drop
Result of voltage drop test
Temperature-rise test
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Ageing test for screwless modular terminal block
temperature cycles
Result of aging test
Proof of thermal characteristics (needle flame)
effective duration
Result of thermal test
Temperature index, insulating material (DIN EN
60216-1 (VDE 0304-21))
Static insulating material application in cold
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
2.5 mm²
0.3 kA
Test passed
192
Test passed
30 s
Test passed
125 °C
-60 °C
5.2 mm
97 mm
50.5 mm
58 mm
0.08 mm²
4 mm²
0.08 mm²
4 mm²
28
12
0.14 mm²
2.5 mm²
0.14 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 9
Aug 13, 2014
STI 2,5-PE/L/L
Order No.: 3031830
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3031830
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Certificates / Approvals
2.5 mm²
0.5 mm²
Spring-cage connection
10 mm
A3
Certification
CSA, cULus Recognized, GOST, VDE Zeichengenehmigung,
IECEE CB Scheme
Certifications applied for:
Certification Ex:
Accessories
Item
Assembly
3030831
3030857
0801704
1206560
0801762
0801733
0801681
1204119
1204122
AB-STI/3
ATP-STI/3
NS 35/ 7,5 AL UNPERF
2000MM
NS 35/ 7,5 CAP
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 WH PERF 2000MM
NS 35/ 7,5 WH UNPERF
2000MM
Support bracket, Bracket for busbars, set every 20 cm, Length: 97
mm, Width: 2 mm, Height: 52 mm, Color: blue
Partition plate, Length: 107 mm, Width: 2.2 mm, Height: 55 mm,
Color: gray
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm,
Length: 2000 mm, Color: silver
DIN rail end piece, for DIN rail NS 35/7.5
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail 35 mm (NS 35)
DIN rail 35 mm (NS 35)
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 9
Aug 13, 2014
STI 2,5-PE/L/L
Order No.: 3031830
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3031830
1206421
1206434
NS 35/ 7,5 ZN PERF 2000MM
NS 35/ 7,5 ZN UNPERF
2000MM
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width
35 mm, length: 2 m
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
3033702
3033710
3001591
3001592
3001593
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBSR 2-5
FBSR 10-5
FBSR 3-5
FBSR 4-5
FBSR 5-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Connector/Adapter
3002843
3002856
3002869
3032871
Covers
3030844
D-STI/3
End cover, Length: 97 mm, Width: 2.2 mm, Height: 50.5 mm,
Color: gray
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
PAI-4-N GY
Insulating sleeve, Color: white
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Test plugs, Color: gray
General
3039900
Marking
0818108
UC-TM 5
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, for terminal block
width: 5.2 mm, Lettering field: 10.5 x 4.6 mm
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into tall marker groove, for terminal block width: 5.2 mm, Lettering
field: 10.5 x 4.6 mm
ST-IL
Operating decal for the ST terminal block
0824581
UC-TM 5 CUS
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 9
Aug 13, 2014
