Panel feed-through terminal block - PT 4-WE/25 - 3044930
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-
in connection, number of connections: 50, number of positions: 25, cross section: 0.14 mm² - 4 mm²,
AWG: 26 - 12, width: 133.8 mm, height: 26.6 mm, color: gray, mounting type: Wall mounting
The figure shows a version of the
article
Your advantages
Easy grouping with engagement pin versions
Easy connection of the conductors, thanks to fast Push-in spring connection
CLIPLINE complete accessories for easy bridging, testing, and marking
Highly flexible, thanks to alignable single terminal blocks
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626461069
22.220 g
85369010
Poland
10 pc
10 pc
Technical data
General
Note
Number of positions
Number of levels
Number of connections
Potentials
Assembly instruction: Minimum distance to other conductive surfaces:
min 5 mm
25
1
50
25
01/22/2019 Page 1 / 10
https://www.phoenixcontact.com/in/products/3044930
Panel feed-through terminal block - PT 4-WE/25 - 3044930
Technical data
General
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Degree of pollution
Overvoltage category
Maximum power dissipation for nominal condition
Ambient temperature (operation)
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test conductor cross section/weight
2.5 mm²
gray
PA
V0
3
III
1.02 W (the value is based on one connection block and is multiplied
according to the pin assignment)
-50 °C ... 85 °C
30 A (with 4 mm² conductor cross section)
24 A
500 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
0.14 mm² / 0.2 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Test passed
0.14 mm²
10 N
2.5 mm²
50 N
4 mm²
60 N
Test passed
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
2.5 mm²
01/22/2019 Page 2 / 10
https://www.phoenixcontact.com/in/products/3044930
Panel feed-through terminal block - PT 4-WE/25 - 3044930
Technical data
General
Short-time current
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Ageing test for screwless modular terminal block temperature cycles
Proof of thermal characteristics (needle flame) effective duration
Result of aging test
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
0.15 kA
4 mm²
0.15 kA
2.5 mm²
0.3 kA
4 mm²
0.3 kA
2.5 mm²
0.5 kA
Test passed
192
30 s
Test passed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.964 (m/s ) /Hz
0.58 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
01/22/2019 Page 3 / 10
2 2
https://www.phoenixcontact.com/in/products/3044930
Panel feed-through terminal block - PT 4-WE/25 - 3044930
Technical data
General
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Plate thickness
Pitch
133.8 mm
51.3 mm
26.6 mm
1 mm ... 2.5 mm
5.2 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Derating curve on request.
Push-in connection
IEC 60947-7-1
0.14 mm²
4 mm²
26
12
0.14 mm²
4 mm²
26
12
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
0.5 mm²
10 mm ... 12 mm
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
01/22/2019 Page 4 / 10
https://www.phoenixcontact.com/in/products/3044930
Panel feed-through terminal block - PT 4-WE/25 - 3044930
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

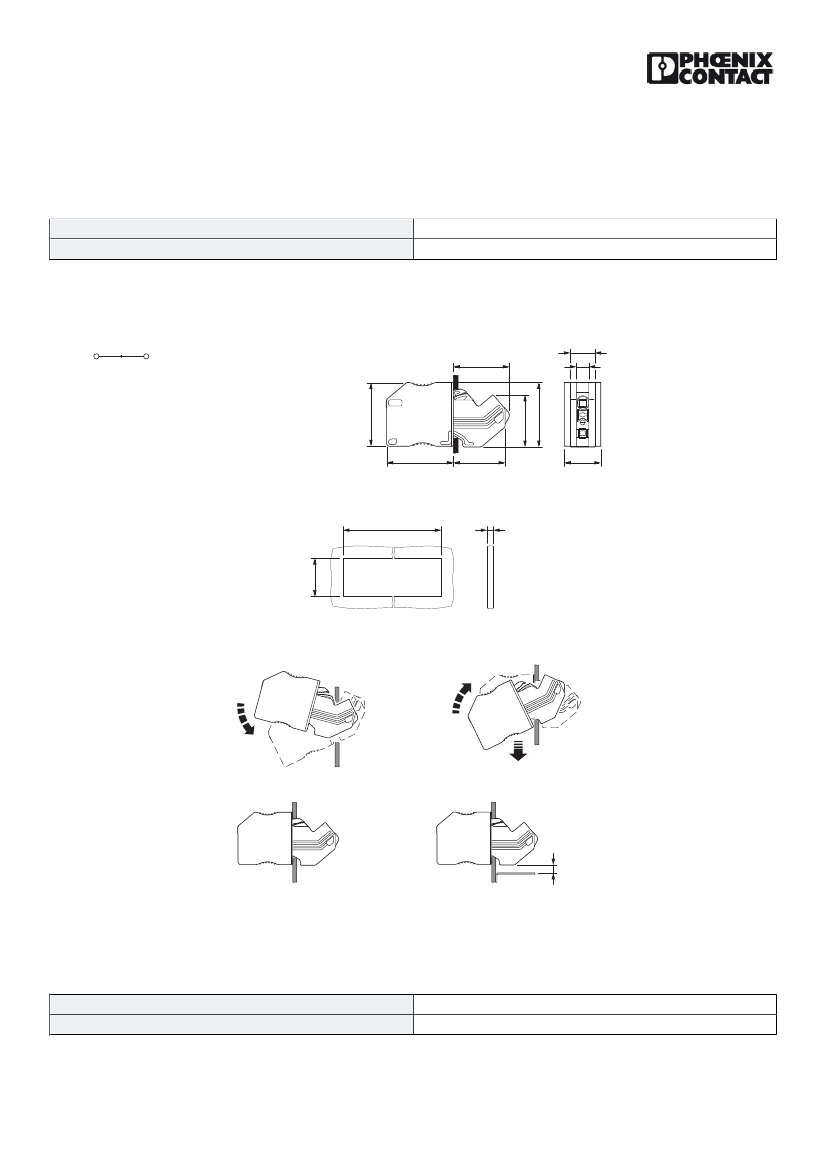

Drawings
Circuit diagram
Dimensional drawing
10,2
23,3
5,2
26,6
27,8
21,6
21,7
26,9
15,2
Dimensional drawing
133,8
+0,2
1...2,5
20
+0,2
Schematic diagram
A
B
B2
B1
C
D
X
X ≥5
Assembly drawing
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27141111
27141111
01/22/2019 Page 5 / 10
