Extract from the online
catalog
UPBV 2,5/11
Order No.: 3045509

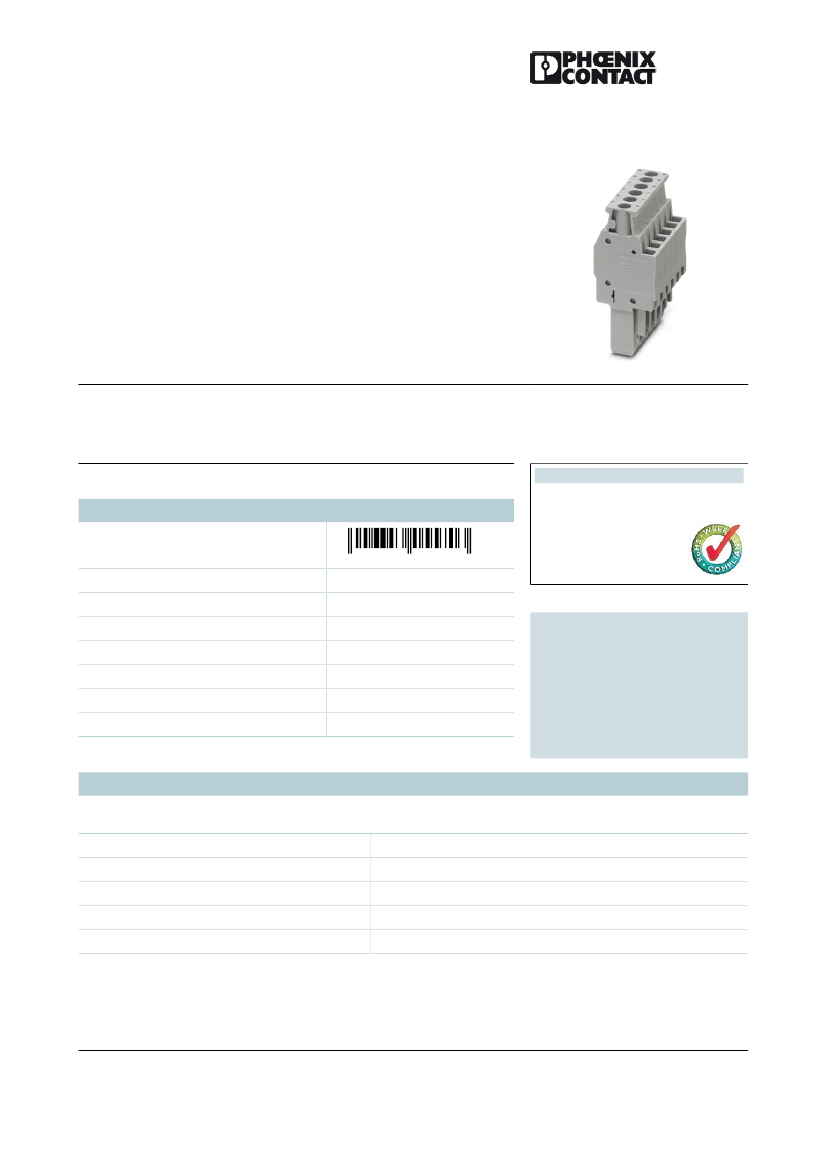

The illustration shows the 6-position version
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3045509
Plug, Connection method: Screw connection, Number of positions: 11,
Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 57.2 mm,
Height: 47 mm, Color: gray
Product notes
Commercial data
EAN
4
046356
055703
WEEE/RoHS-compliant since:
11/03/2004
Note
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
Made-to-order
A871
10 Pcs.
85366990
0.058 KG
0.058 KG
Page 408 (C-3-2013)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
11
gray
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 6
Aug 13, 2014
UPBV 2,5/11
Order No.: 3045509
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3045509
General
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current (lower level)
Additional text
Nominal current I
N
(lower level)
Nominal voltage U
N
Number of positions
Dimensions
Width
Length
Height
Connection data
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
IEC 61984
Screw connection
0.14 mm²
4 mm²
26
12
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.14 mm²
57.2 mm
20.5 mm
47 mm
24 A (with 4 mm² conductor cross section)
6 kV
3
III
I
IEC 61984
24 A
with 4 mm² conductor cross section
24 A
500 V
11
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 6
Aug 13, 2014
UPBV 2,5/11
Order No.: 3045509
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3045509
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
1.5 mm²
0.14 mm²
1.5 mm²
0.5 mm²
1 mm²
0.14 mm²
1.5 mm²
9 mm
A3
M3
0.5 Nm
0.6 Nm
Certification
Certifications applied for:
Certification Ex:
cULus Recognized
Accessories
Item
Assembly
3040591
3040601
3045567
3045570
3045554
PSH 3- 6
PSH 5-10
UPR/ 2
UPRZ
UPZ/ 2
Shield connection clamp, Color: black
Shield connection clamp, Color: black
Latching, Number of positions: 2, Color: orange
Latching, Number of positions: 2, Color: orange
Strain relief, Number of positions: 2, Color: black
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 6
Aug 13, 2014
UPBV 2,5/11
Order No.: 3045509
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3045509
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
3038930
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBS 50-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
Connector/Adapter
0201731
0201689
0201702
0201728
0201676
0201663
0201692
0201744
3032871
3030983
3038723
Covers
3060432
3036725
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
DF-UPBV 2,5/ 4
DP PS-5
Flange cover, Length: 45.7 mm, Width: 4.5 mm, Height: 32 mm,
Color: gray
Spacer plate, Color: red
MPS-IH BK
MPS-IH BU
MPS-IH GN
MPS-IH GY
MPS-IH RD
MPS-IH WH
MPS-IH YE
MPS-MT
PAI-4-N GY
PS-5
PS-5/2,3MM RD
Insulating sleeve, Color: black
Insulating sleeve, Color: blue
Insulating sleeve, Color: green
Insulating sleeve, Color: gray
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Insulating sleeve, Color: yellow
Test plugs, Color: silver
Test plugs, Color: gray
Test plugs, Color: red
Test plugs, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 6
Aug 13, 2014
UPBV 2,5/11
Order No.: 3045509
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3045509
Drawings
Diagram

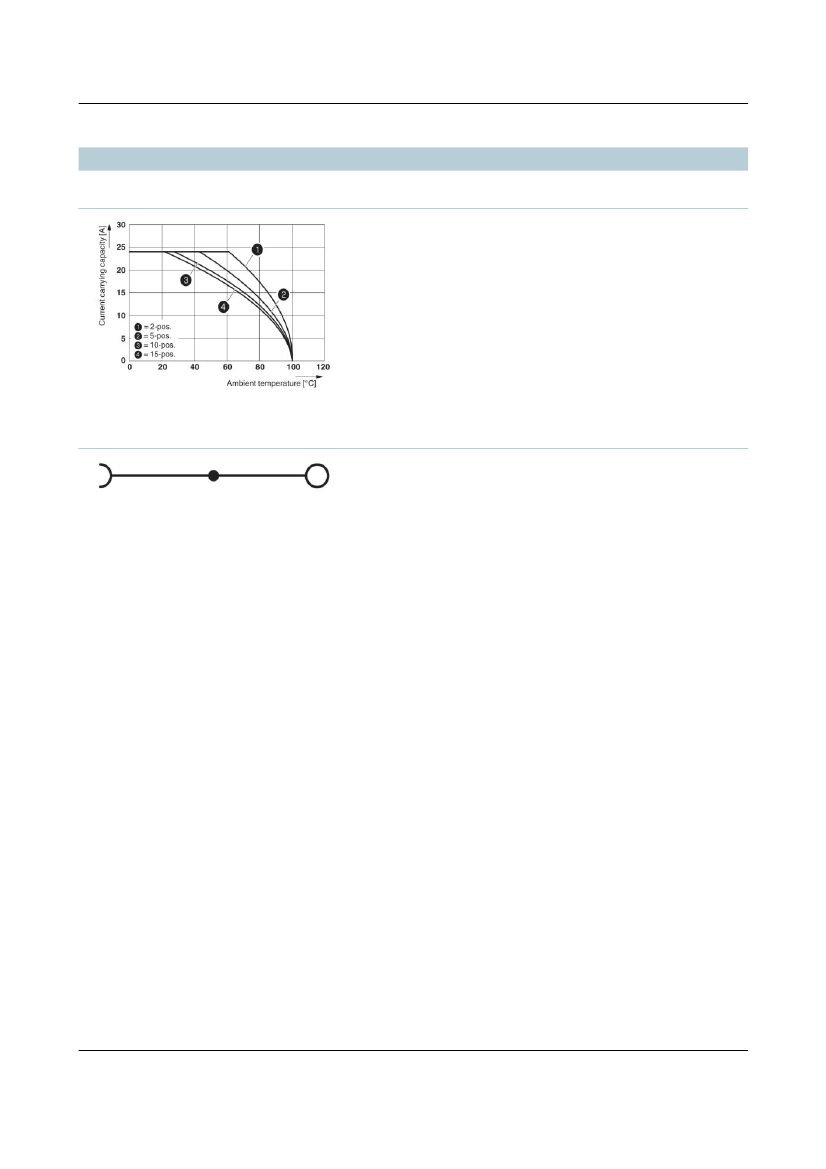

The figure shows the derating curve of the UT 2,5/1P... terminal
block in connection with the UPBV 2,5 plug
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 6
Aug 13, 2014
