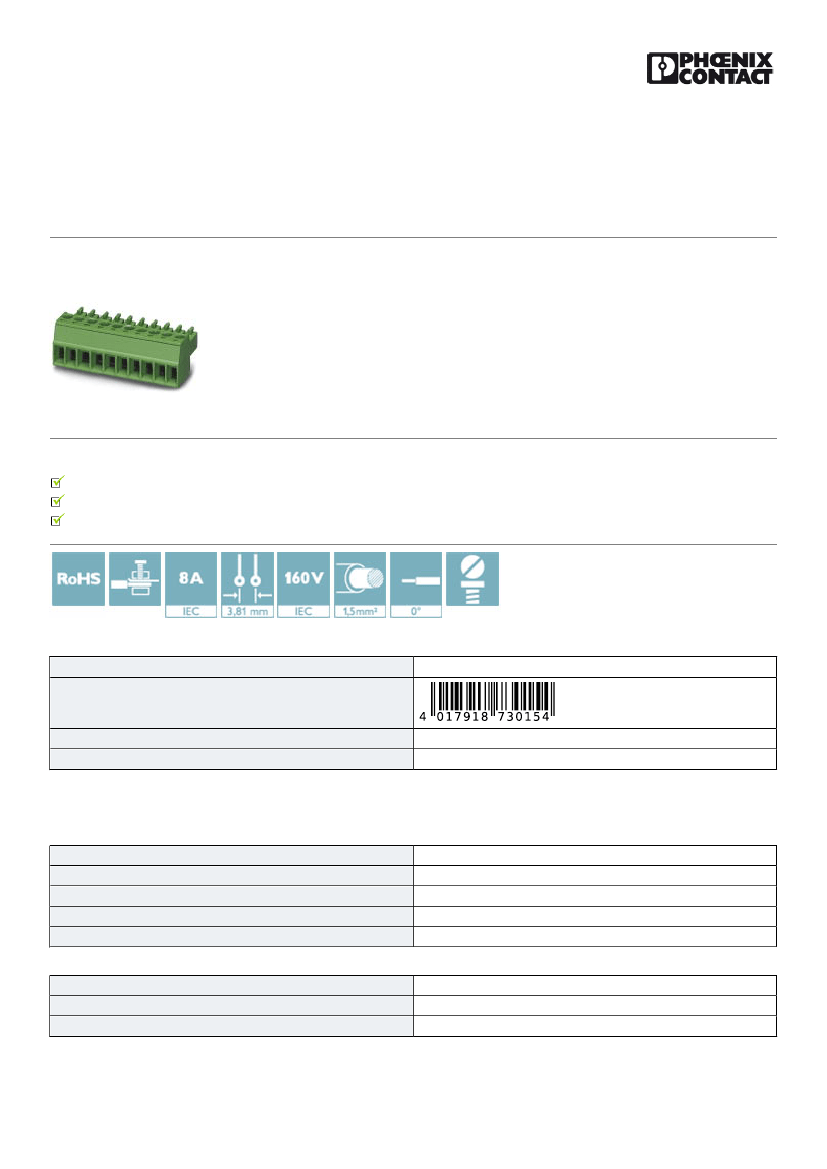

Printed-circuit board connector - MC 1,5/ 9-ST-3,81 GY
BD:12-4SO - 1937088
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 9, pitch: 3.81 mm,
connection method: Screw connection with tension sleeve, color: gray, contact surface: Tin
The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4017918730154
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
16.1 mm
35.08 mm
11.1 mm
3.81 mm
30.48 mm
General
Range of articles
Number of positions
Connection method
MC 1,5/..-ST
9
Screw connection with tension sleeve
12/30/2018 Page 1 / 5
https://www.phoenixcontact.com/in/products/1937088
Printed-circuit board connector - MC 1,5/ 9-ST-3,81 GY
BD:12-4SO - 1937088
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
I
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
EN-VDE
8A
1.5 mm²
8 A (with 1.5 mm² conductor cross section)
PA
V0
A1
7 mm
M2
0.22 Nm
0.25 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
0.25 mm²
0.5 mm²
28
16
0.08 mm²
0.5 mm²
0.08 mm²
0.75 mm²
0.25 mm²
0.34 mm²
0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
12/30/2018 Page 2 / 5
https://www.phoenixcontact.com/in/products/1937088
Printed-circuit board connector - MC 1,5/ 9-ST-3,81 GY
BD:12-4SO - 1937088
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.5 mm²
30
14
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002638
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
12/30/2018 Page 3 / 5
https://www.phoenixcontact.com/in/products/1937088
Printed-circuit board connector - MC 1,5/ 9-ST-3,81 GY
BD:12-4SO - 1937088
Approvals
Approvals
Approvals
CSA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
8A
28-16
http://www.csagroup.org/services-industries/product-listing/
B
300 V
8A
28-16
13631
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-60987-B1B2
160 V
8A
0.2-1.5
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40011723
EAC
B.01742
12/30/2018 Page 4 / 5
https://www.phoenixcontact.com/in/products/1937088
Printed-circuit board connector - MC 1,5/ 9-ST-3,81 GY
BD:12-4SO - 1937088
Approvals
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
300 V
8A
30-14
300 V
8A
30-14

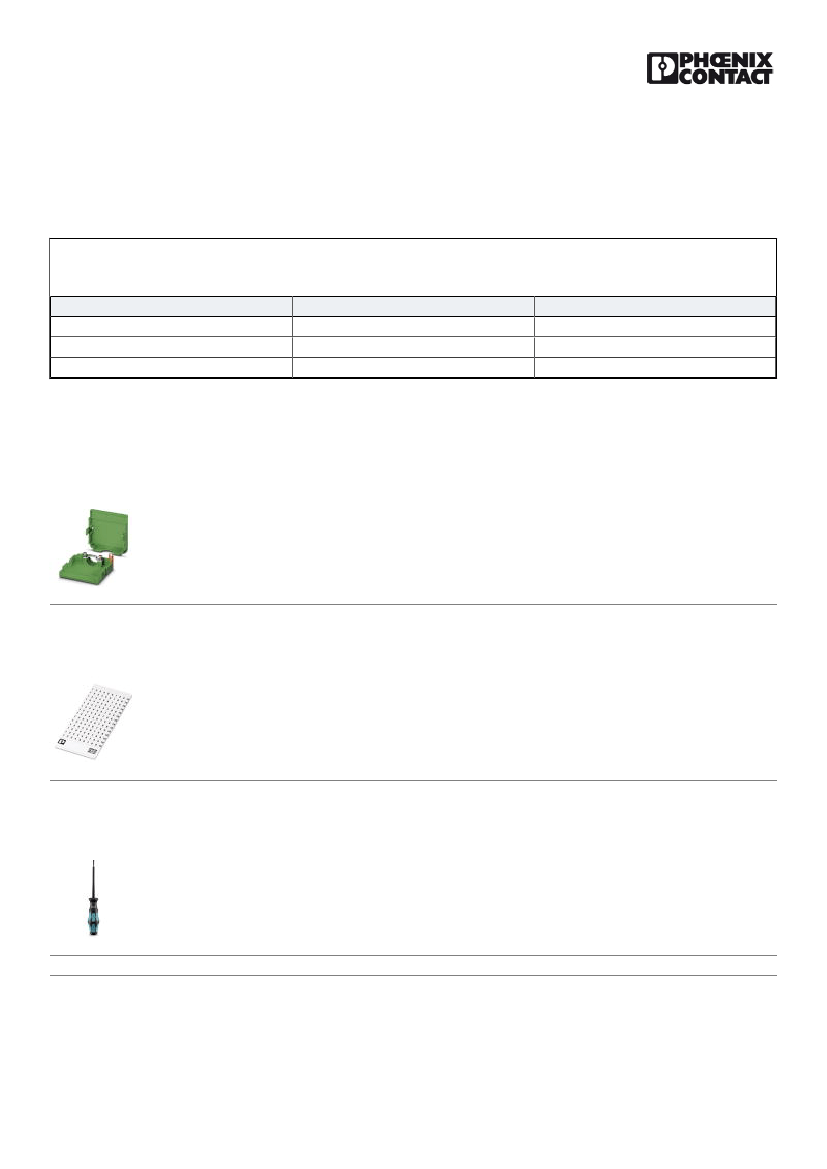

Accessories
Accessories
Cable housing
Cable housing - KGG-MC 1,5/ 9 - 1834411
Cable housing, pitch: 3.81 mm, number of positions: 9, dimension a: 36.68 mm, color: green
Labeled terminal marker
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100,
mounting type: adhesive, for terminal block width: 3.81 mm, lettering field size: 3.81 x 2.8 mm
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
12/30/2018 Page 5 / 5
