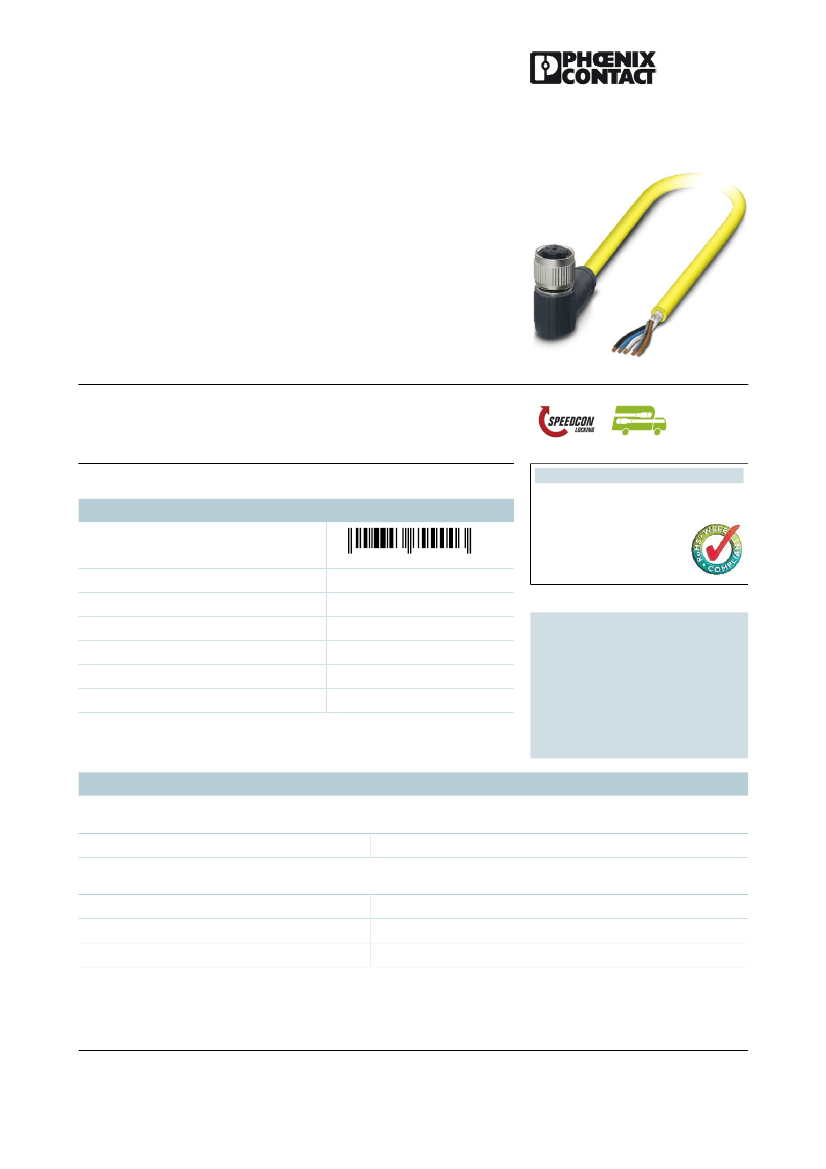

SAC-5P-10,0-542/ FR SH SCO BK
Order No.: 1406150
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1406150
Sensor/Actuator cable, 5-position, PVC, Yellow RAL 1021, shielded,
free cable end, on Socket angled M12 SPEEDCON, A-coded, Cable
length: 10 m
Product notes
Commercial data
EAN
4
046356
799003
WEEE/RoHS-compliant since:
04/03/2012
Note
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Made-to-order
D117
1 Pcs.
85444290
0.1685 KG
0.1666 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Length of cable
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
10 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 6
Aug 13, 2014
SAC-5P-10,0-542/ FR SH SCO BK
Order No.: 1406150
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1406150
General
Rated current at 40°C
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
Torque
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
PVC yellow 105 °C
542
2517 (105°C/300 V)
22
1.27 mm ±0.03 mm
Brown, blue, black, white, gray
5 wires around filler to the core
Tinned copper braided shield
85 %
yellow
5.9 mm ±0.2 mm
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
4A
60 V
5
≤ 5 mΩ
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
3
≥ 100
0.4 Nm (M12 connector)
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 6
Aug 13, 2014
SAC-5P-10,0-542/ FR SH SCO BK
Order No.: 1406150
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1406150
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Nominal voltage, cable
Special properties
Other resistance
Ambient temperature (operation)
Certificates / Approvals
12 x D
57 kg/km
PVC
PP
PVC
Tin-plated Cu litz wires
300 V
UL standards PLTC and ITC
UV resistant
-30 °C ... 105 °C (cable, fixed installation)
Certification
Certifications applied for:
Certification Ex:
cULus Listed
Accessories
Item
Fuse
1558991
SAC-M12-EXCLIP-F
Fuse clip for the socket side of sensor/actuator cables with M12
connector and M12 connectors which can be assembled with
QUICKON fast connection technology, prevents the disconnection
of plug-in connections without tools
Designation
Description
Protection and sealing elements
1430899
PROT-M12 MS-PA-CHAIN
M12 sealing cap with fixing band, for sensor cables, for free M12
sockets
Tools
1208432
SAC BIT M12-D15
Nut for assembling sensor/actuator cables with M12 connector
and for M12 connectors with QUICKON fast connection
technology, for 4 mm hexagonal drive
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 6
Aug 13, 2014
SAC-5P-10,0-542/ FR SH SCO BK
Order No.: 1406150
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1406150
1208429
1212224
1212600
TSD 04 SAC
TSD-M 1,2NM
TSD-M SAC-BIT ADAPTER
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm
hexagonal drive for M12 connectors
Torque screw driver, accuracy as per EN ISO 6789 standard,
adjustable from 0.3 ‑ 1.2 Nm
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm
hexagon to accommodate SAC bits
Drawings

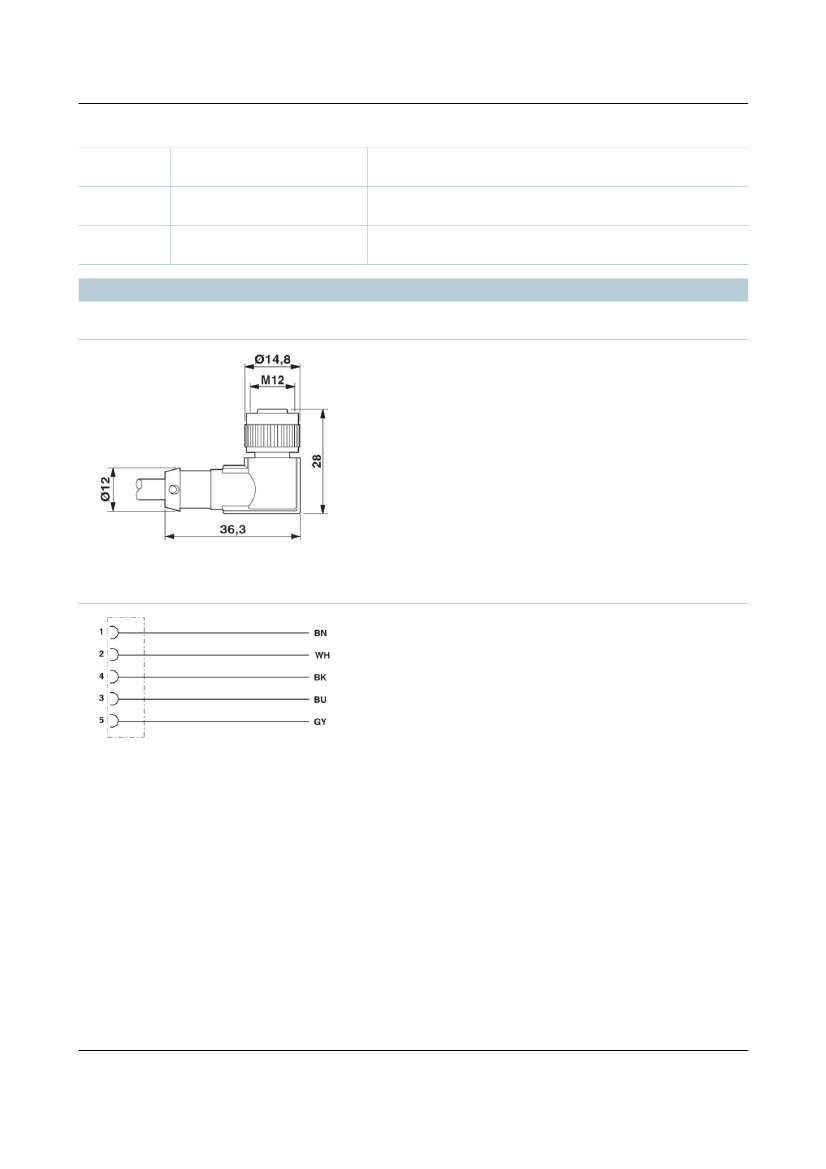

Dimensioned drawing
M12 x 1 socket, angled, shielded
Circuit diagram
Contact assignment of the M12 socket
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 6
Aug 13, 2014
SAC-5P-10,0-542/ FR SH SCO BK
Order No.: 1406150
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1406150

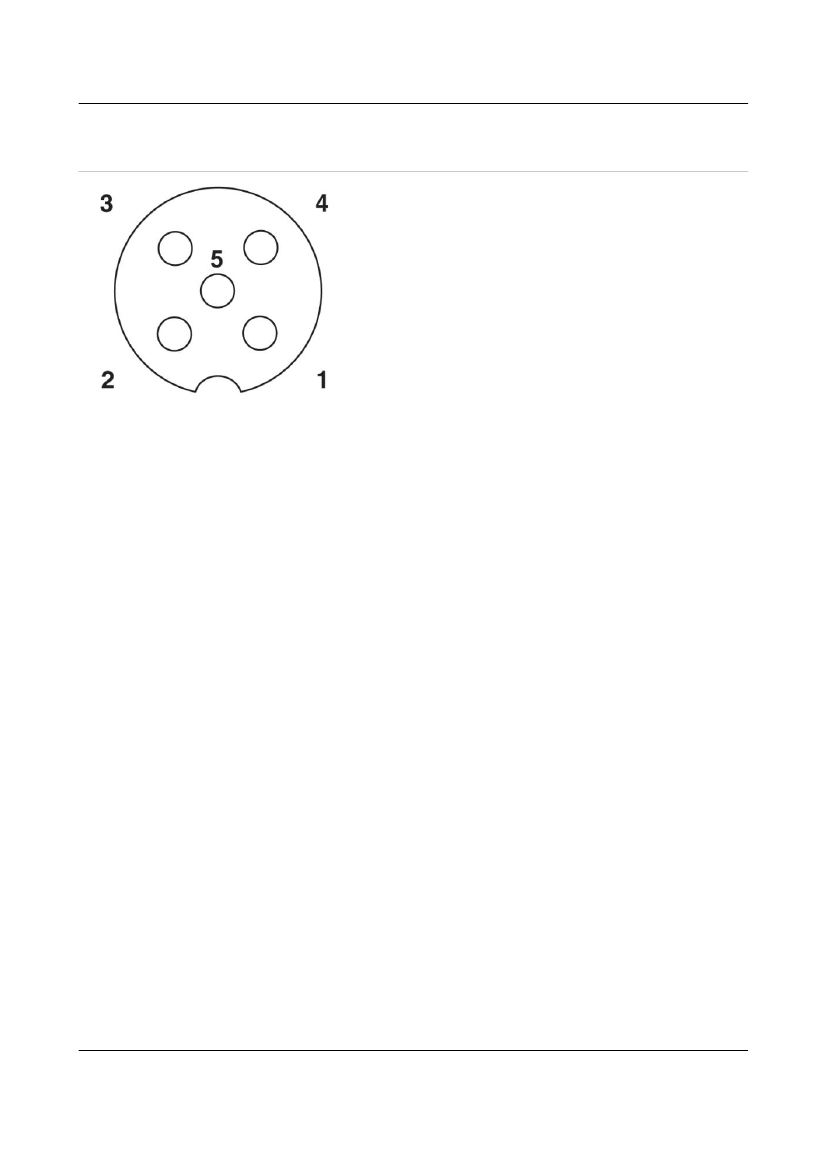

Schematic diagram
Pin assignment M12 socket, 5-pos., A-coded, socket side view
