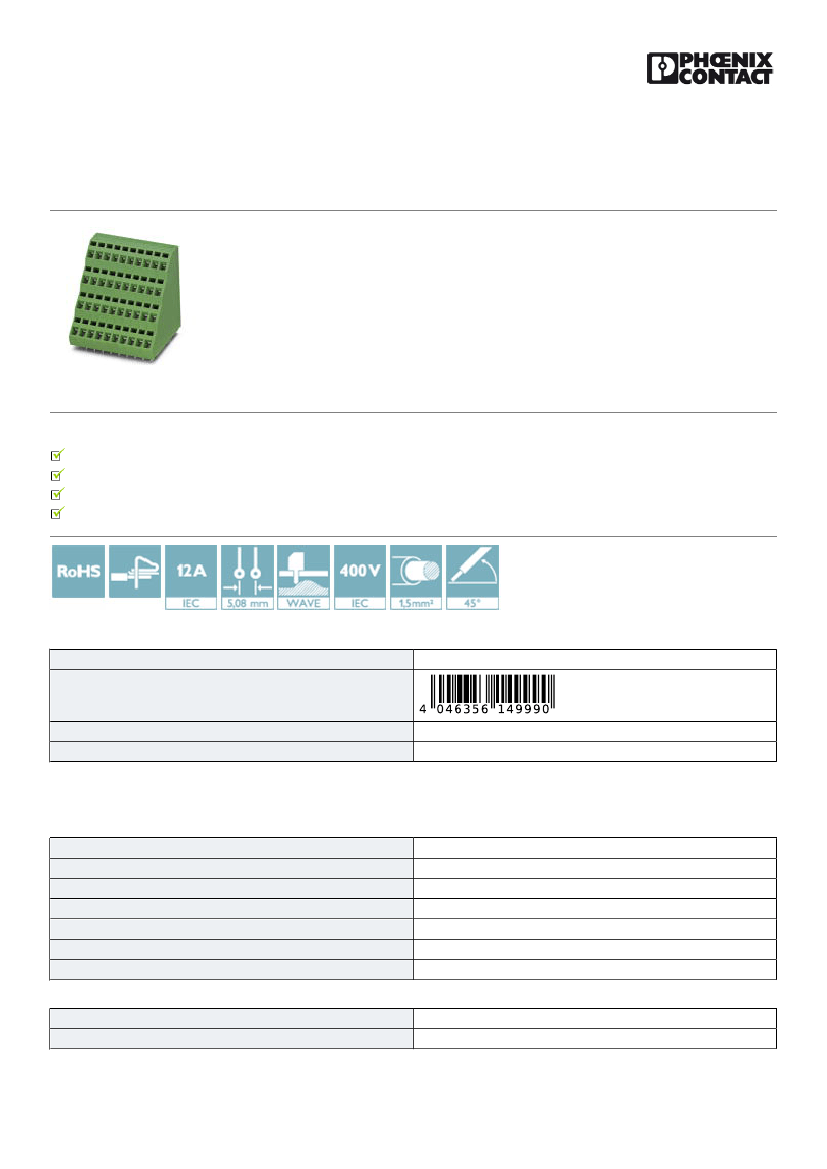

PCB terminal block - ZFK4DS 1,5-5,08 GY - 1729577
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 12 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 1,
connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction:
45 °, color: gray. Single module for the custom grouping of different numbers of positions. An end terminal
block is also needed to terminate the block (see accessories). Blocked items with different numbers of
positions are also available.
The figure shows an 10-position
version
Your advantages
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Conductor connection on several levels enables higher contact density
The latching on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356149990
85369010
1
Technical data
Dimensions
Length [ l ]
Pitch
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Hole diameter
42.4 mm
5.08 mm
5.08 mm
48 mm
51.2 mm
3.4 mm
1.3 mm
General
Range of articles
Insulating material group
ZFK4DS(A) 1,5
I
01/15/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1729577
PCB terminal block - ZFK4DS 1,5-5,08 GY - 1729577
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Contact material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
12 A
1.5 mm²
12 A
PA
Sn
V0
A1
7.5 mm
1
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
24
14
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27261100
27261100
27440401
27440401
27440401
01/15/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1729577
PCB terminal block - ZFK4DS 1,5-5,08 GY - 1729577
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
EAC
D
300 V
10 A
26-12
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
B
250 V
10 A
26-12
