50120020170G

Description
Barrier Strip Terminal Block
CategoryThe connector

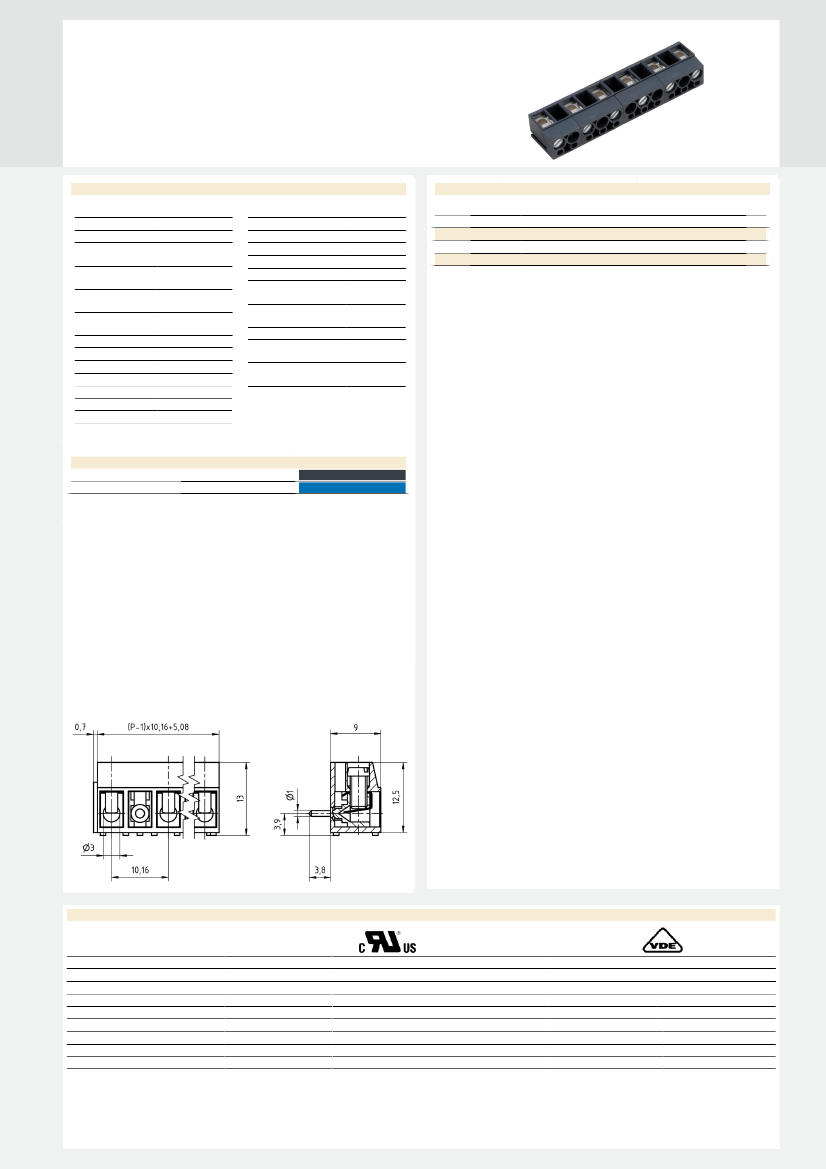

File Size227KB,1 Pages
ManufacturerAPEM
Download Datasheet Parametric View All

50120020170G Overview

Barrier Strip Terminal Block

50120020170G Parametric

Parameter NameAttribute value
MakerAPEM
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number501200
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire Guard |
Spacing 10.16 mm
AKZ120/..DS-10.16-H-GREY
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
4.0 mm²
0.2 mm²
2.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
Width (mm)
15.94
26.10
36.26
46.42
56.58
Article Designation
AKZ120/2DS-10.16-H-GREY
AKZ120/3DS-10.16-H-GREY
AKZ120/4DS-10.16-H-GREY
AKZ120/5DS-10.16-H-GREY
AKZ120/6DS-10.16-H-GREY
Article Number
50120020170G
50120030170G
50120040170F
50120050170E
50120060170E
PU
250
250
200
100
100
Stranded with Ferrule 0.2 mm²
min
Stranded with Ferrule 2.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Wire Guard
Screw
Brass
Stainless Steel
Steel
7.0 mm
1.3 mm
Colours
GREY
BLUE
RAL7016
RAL5015
RAL7016
RAL5015
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
20 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
C
-
-
-
-
-
-
-
D
300 V
-
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
min
0.5 mm²
0.5 mm²
1000 V
24 A
max
2.5 mm²
2.5 mm²
0.50 Nm
M3
3.5 kV
