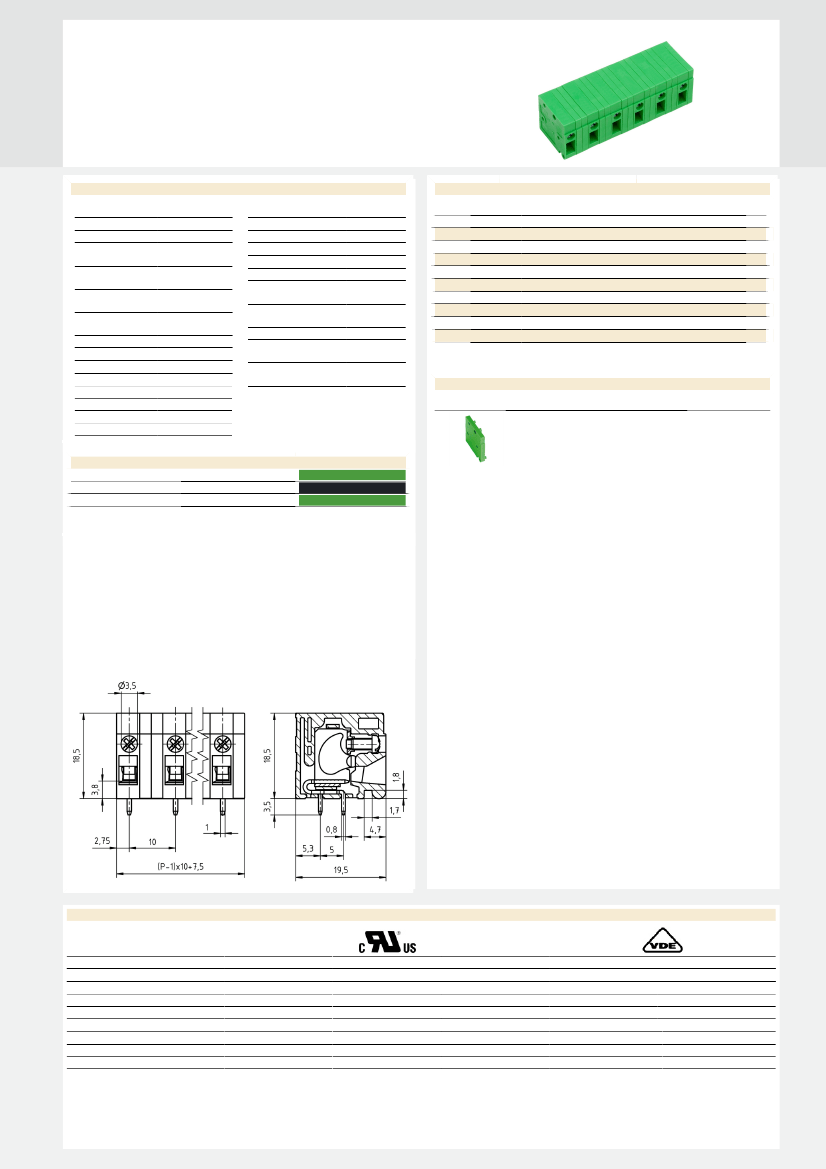

Excenter |
Spacing 10.0 mm
AK2200/..-10.0-H-GREEN
1- to n-poles
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
4.0 mm²
0.2 mm²
2.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing 10.0 mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
17.50
27.50
37.50
47.50
57.50
67.50
77.50
87.50
97.50
107.50
117.50
Article Designation
AK2200/2-10.0-H-GREEN
AK2200/3-10.0-H-GREEN
AK2200/4-10.0-H-GREEN
AK2200/5-10.0-H-GREEN
AK2200/6-10.0-H-GREEN
AK2200/7-10.0-H-GREEN
AK2200/8-10.0-H-GREEN
AK2200/9-10.0-H-GREEN
AK2200/10-10.0-H-GREEN
AK2200/11-10.0-H-GREEN
AK2200/12-10.0-H-GREEN
Article Number
52200020091D
52200030091D
52200040091D
52200050091D
52200060091D
52200070091D
52200080091D
52200090091D
52200100091D
52200110091D
52200120091D
PU
50
50
50
50
50
50
50
50
50
50
50
Stranded with Ferrule 0.25 mm²
min
Stranded with Ferrule 2.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Screw
Solder Tag
Clamp Cage
Excenter
Steel
Copper Alloy
Stahl
Steel
9.0 mm
1.3 mm
Accessories
Figure
Designation
Spacer SPC-AK2200-GREEN
Article Number
52200000002
Colours
GREEN
BLACK
LIGHT GREEN
RAL6018
RAL9011
similar RAL 6018
RAL6018
RAL9011
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
600 V
20 A
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
2.2 kV
C
-
-
-
-
-
-
-
D
600 V
5A
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
2.2 kV
min
0.5 mm²
0.5 mm²
250 V
24 A
max
2.5 mm²
2.5 mm²
0.50 Nm
M2.5
2.0 kV
