R129301215 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R129301215

R129301215: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R129301215 Overview

RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack

R129301215 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	unknown
Other features	STANDARD: DIN 47295
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	1.6/5.6
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	1 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
voltage standing wave ratio	1.35

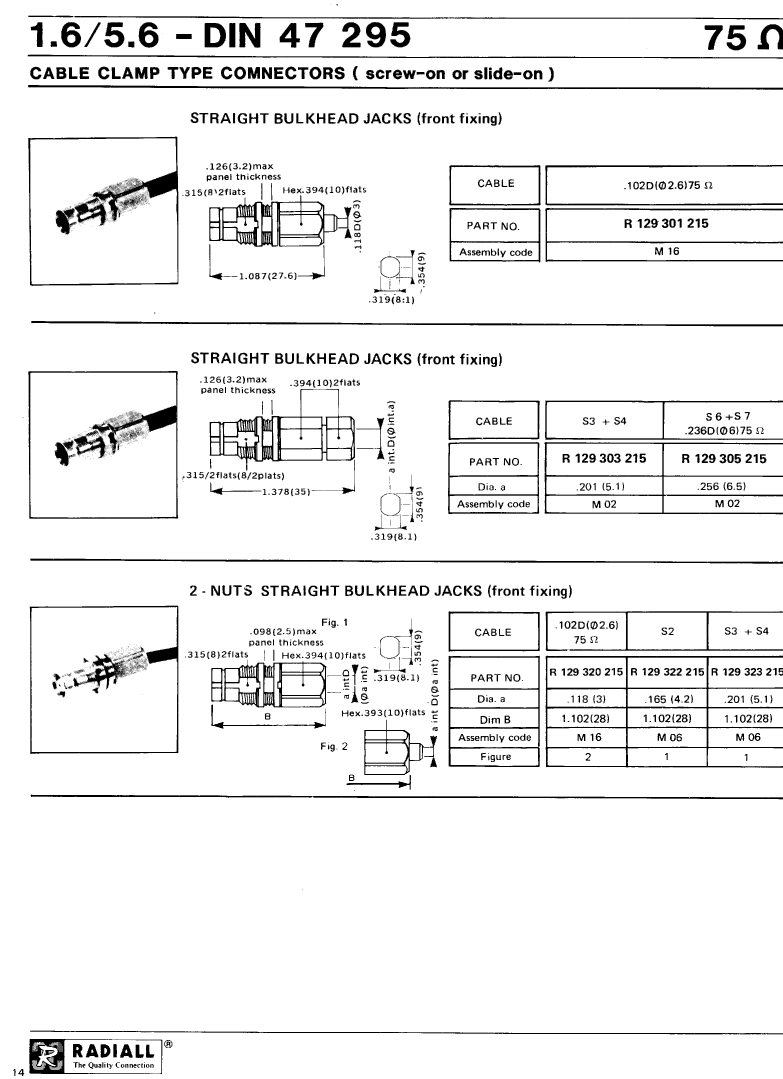

Preview

Download Datasheet

View All

R129301215 Related Products

	R129301215	R129305215	R129.305.215	R129323215	R129320215
Description	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
Other features	STANDARD: DIN 47295	STANDARD: DIN 47295	STANDARD: DIN 47295	STANDARD: DIN 47295	STANDARD: DIN 47295
Body/casing type	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	1.6/5.6	1.6/5.6	1.6/5.6	1.6/5.6	1.6/5.6
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	1 GHz	1 GHz	1 GHz	1 GHz	1 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES
Termination type	CLAMP	CLAMP	CLAMP	CLAMP	CLAMP
voltage standing wave ratio	1.35	1.35	1.2	1.35	1.35
Contact material	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER	-	-
Base Number Matches	-	1	1	1	-
