R574393200: DescriptionRF Coaxial Relay, SP12T, Latched, 0.5A (Coil), 28VDC (Coil), 14000mW (Coil), 3000MHz, 240W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size296KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R574393200 Overview

RF Coaxial Relay, SP12T, Latched, 0.5A (Coil), 28VDC (Coil), 14000mW (Coil), 3000MHz, 240W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT

R574393200 Parametric

Parameter Name	Attribute value
Maker	Radiall
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH INDICATOR, SELF CUT-OFF, AUTO RESET AND SUPPRESSION DIODE
body height	60 mm
Body length or diameter	68.3 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.5 A
Coil power	14000 mW
Coil resistance	56 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Electrical life	2000000 Cycle(s)
Maximum input power	240 W
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Manufacturer's serial number	R574393200
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP12T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	50 ms
Termination type	CONNECTOR AND SOLDER
voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

TECHNICAL DATA SHEET

Description :

Options :

50 Ohms Terminated SP12T 3GHz SMA LATCHING 28V SWITCH

INDICATOR / SELF CUT-OFF / AUTO RESET / SUPP. DIODES

R574393200

Issue 12.12.12

Page 1/2

RF CHARACTERISTICS

Number of ways

Frequency range

Impedance

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

0-3

1.20

0.20 dB

80 dB

240 W

: 50 Ohms

: 1 W per termination

3 W total power

: 12

: 0 - 3 GHz

: 50 Ohms

TERMINATION IMPEDANCE

TERM. AVG. POWER AT 25° C

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

Self cut-off time

:

LATCHING

500 mA

28V (24 to 30V) / NEGATIVE COMMON

solder pins (250°C max. / 30 sec.)

1 W / 30 V / 100 mA

40 ms < CT < 120 ms

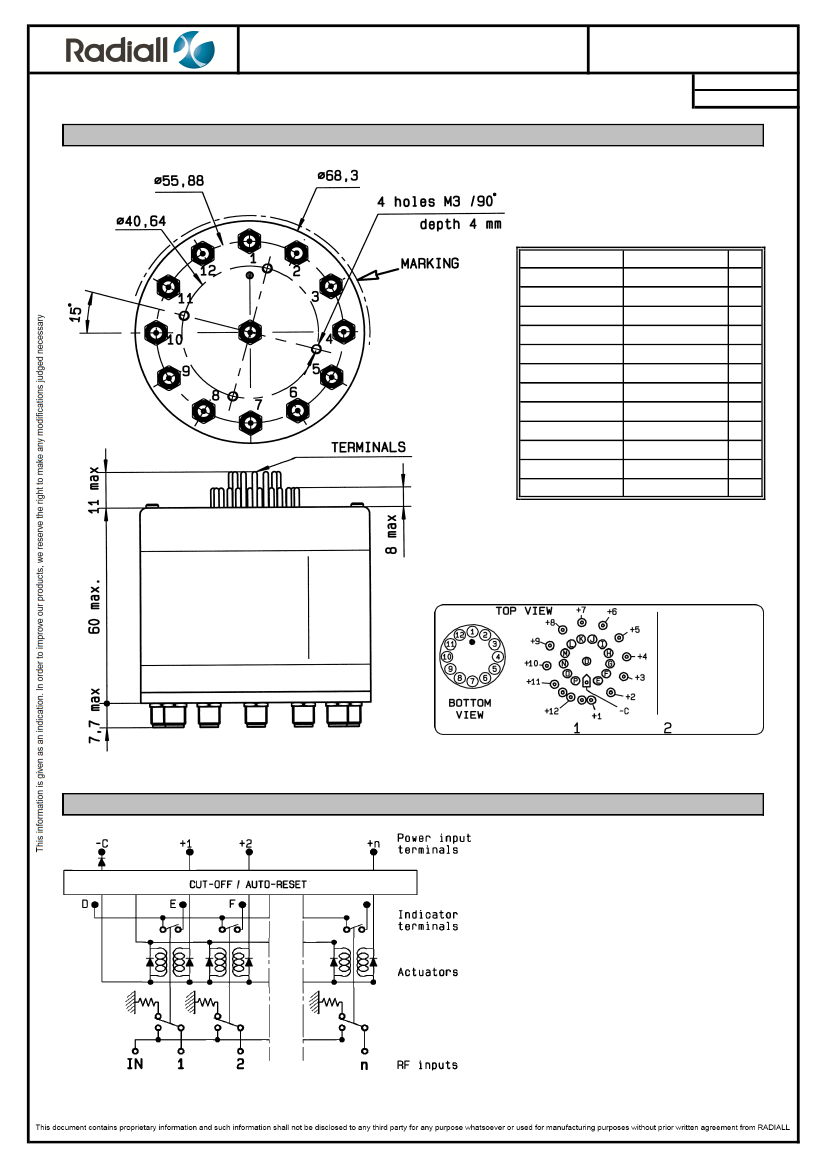

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

:

SMA female per MIL-C 39012

2.000.000 cycles per position

< 50 ms

Splashproof

< 400 g

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

: -40°C to +85°C

: -55°C to +85°C

(*

(**

(***

Average power at 25°C per RF Path)

At 25° C ±10%)

Nominal voltage ; 25° C)
