SPnT Coaxial Subminiature Switches DC to 6 GHz, DC to 26.5 GHz, DC to 40 GHz

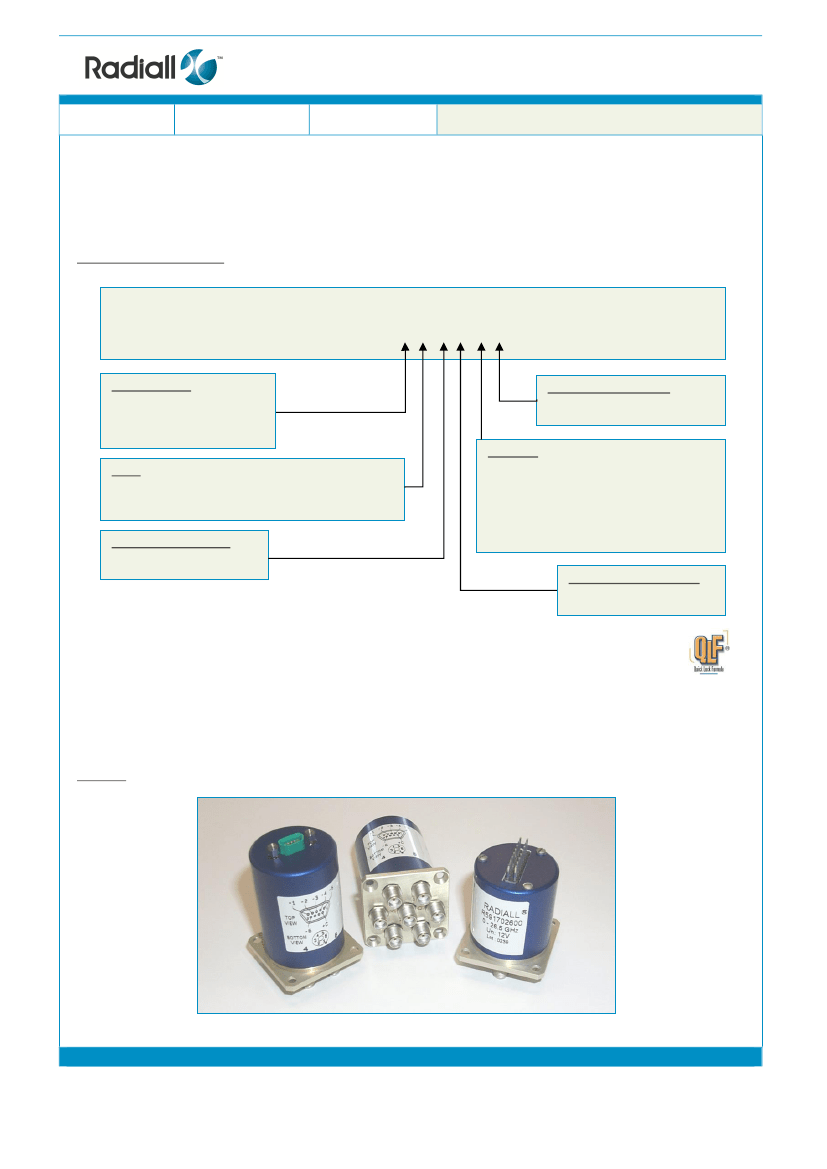

R591 RADIALL coaxial subminiature switches have a typical operating life exceeding 25 million cycles. Excellent RF & repeatability
characteristics along with a guaranteed life of 10 million cycles make these switches ideal for Automated Test Equipment (ATE) and
other measurement applications. These miniature switches are also an excellent choice for Mil/Aero applications due to their small
size, light weight, as well as outstanding shock and vibration handling capabilities.
PART NUMBER SELECTION
R591______
RF Connectors :
3 : SMA up to 6 GHz
E : QMA up to 6 GHz (1)
7 : SMA up to 26.5 GHz
8 : SMA 2.9 up to 40 GHz (2)
TYPE :
0 : Normally open
2 : Latching, global reset
6 : Latching, separated reset (3)
ACTUATOR VOLTAGE :
2 : 12Vdc
3 : 28Vdc
ACTUATOR TERMINAL :
0 : Solder pins
5 : Micro-D connector
OPTIONS :
0 : Without option
1 : Positive common
2 : Normally open with TTL driver
(High level) (4) (5)
3 : With suppression diodes
4 : With suppression diodes and positive
common
NUMBER OF POSITIONS :
4 : 4 positions
6 : 6 positions
(1)
(2)
(3)
(4)
(5)
The “QLF” tradermark (quick lock formula®) standard applies to QMA and QN series and guarantees the full
intermateability between suppliers using this tradermark.Using QLF certified connectors also guarantees the
specified level of RF performances.
Connector SMA2.9 is equivalent to “K Connector®”, registered trademark of Anritsu
Available with “solder pins “ models only
Polarity is not relevant to application for switches with TTL driver
Suppression diodes are already included with TTL option
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
COAXIAL SUBMINIATURE MULTIPORT SWITCHES
PAGE
2/8
ISSUE
09-02-17
SERIES
SPnT
PART NUMBER
R591 XXX XXX
GENERAL SPECIFICATIONS
Operating mode
Nominal operating voltage
(Vdc)
(across operating temperature range)
Coil resistance
(+/-10%) (Ohms)
Nominal operating current at 23°C
(mA)
Average power
High Level
TTL input
Low Level
Switching time max
(ms)
Life min for
SMA / QMA
SMA 2.9
Connectors
Actuator
terminals
Solder Pins
9 pin micro-D
Operating temperature range (°C)
Storage temperature range (°C)
Sine vibration
(According to MIL STD 202, Method 204D, Cond. D)
Normally open
12
(10.2 / 13)
48
250
28
(21 / 30)
250
110
Latching
12
(10.2 / 13)
60
200
28
(21 / 30)
285
98
See Power Rating Chart on final page
2.2 to 5.5 Volts
0 to 0.8 V
10
10 million cycles
2 million cycles
SMA – QMA – SMA 2.9
Solder pins double row connector for wrapping, soldering
(250°C max / 30 sec), or connecting to 2.54 mm pitch female connector.
9 pin micro-D receptacle M83513/07-A according to MIL-C-85513.
-40 to +85
-55 to +85
10-2000 Hz, 20g
50-2000 Hz, 20.71grms
100g / 6 ms, ½ sine
operating
operating
operating
Random vibration
(According to MIL STD 202, Method 214A, Profile I, Cond. F)
Shock
(According to MIL STD 202, Method 213B, Cond. C)
RF PERFORMANCES
Connectors Frequency Range GHz
SMA / QMA
DC – 6
DC – 3
3–6
DC – 3
3–8
SMA
DC – 26.5
8 – 12.4
12.4 – 18
18 – 26.5
DC – 3
V.S.W.R.
(max)
1.20
1.30
1.20
1.30
1.40
1.50
1.60
1.20
Insertion Loss
(max) dB
0.20
0.30
0.20
0.30
0.40
0.50
0.60
0.20
Isolation
(min) dB
80
70
80
70
60
60
55
80
Max. average Impedance
power (W) (1)
O
hms
250
170
250
150
120
100
40
60
50
50
3–8
8 – 12.4
SMA2.9
DC – 40
1.30
1.40
1.50
1.70
2.20
0.30
0.40
0.50
0.70
1.10
70
60
60
55
45
35
30
25
15
5
50
12.4 – 18
18 – 26.5
26.5 – 40
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
COAXIAL SUBMINIATURE MULTIPORT SWITCHES
PAGE
3/8
ISSUE
09-02-17
SERIES
SPnT
PART NUMBER
R591 XXX XXX

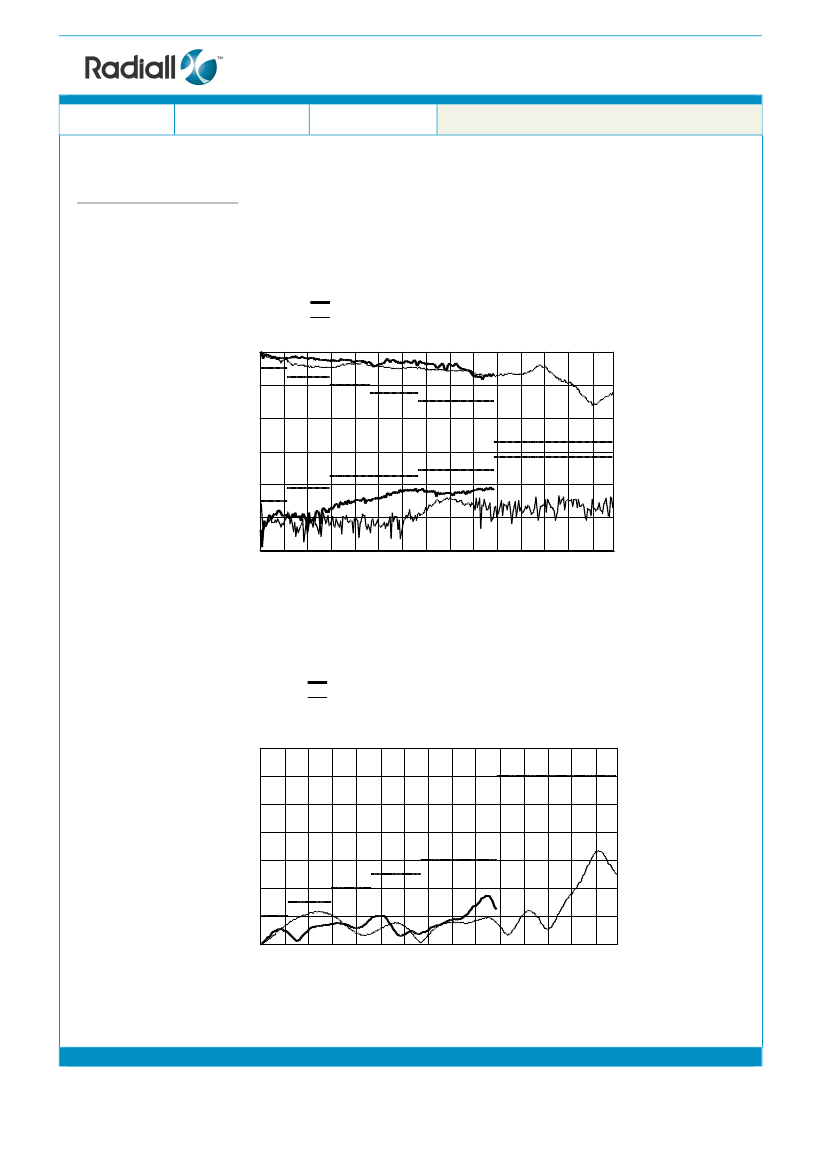

TYPICAL RF PERFORMANCES
Insertion Loss and Isolation :
26.5GHz model with SMA connector
40GHz model with SMA2.9 connector
-0.40
-0.80
-1.20
-1.60
-2.00
-2.40
20
0
-20
-40
-60
-80
-100
-120
IL dB
0.10
GHz
40
V.S.W.R :
26.5GHz model with SMA connector
40GHz model with SMA2.9 connector
2.40
2.20
2.00
1.80
1.60
1.40
1.20
1.00
0.10
GHz
40
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Isolation dB
0.00
40
Technical Data Sheet
COAXIAL SUBMINIATURE MULTIPORT SWITCHES
PAGE
4/8
ISSUE
09-02-17
SERIES
SPnT
PART NUMBER
R591 XXX XXX

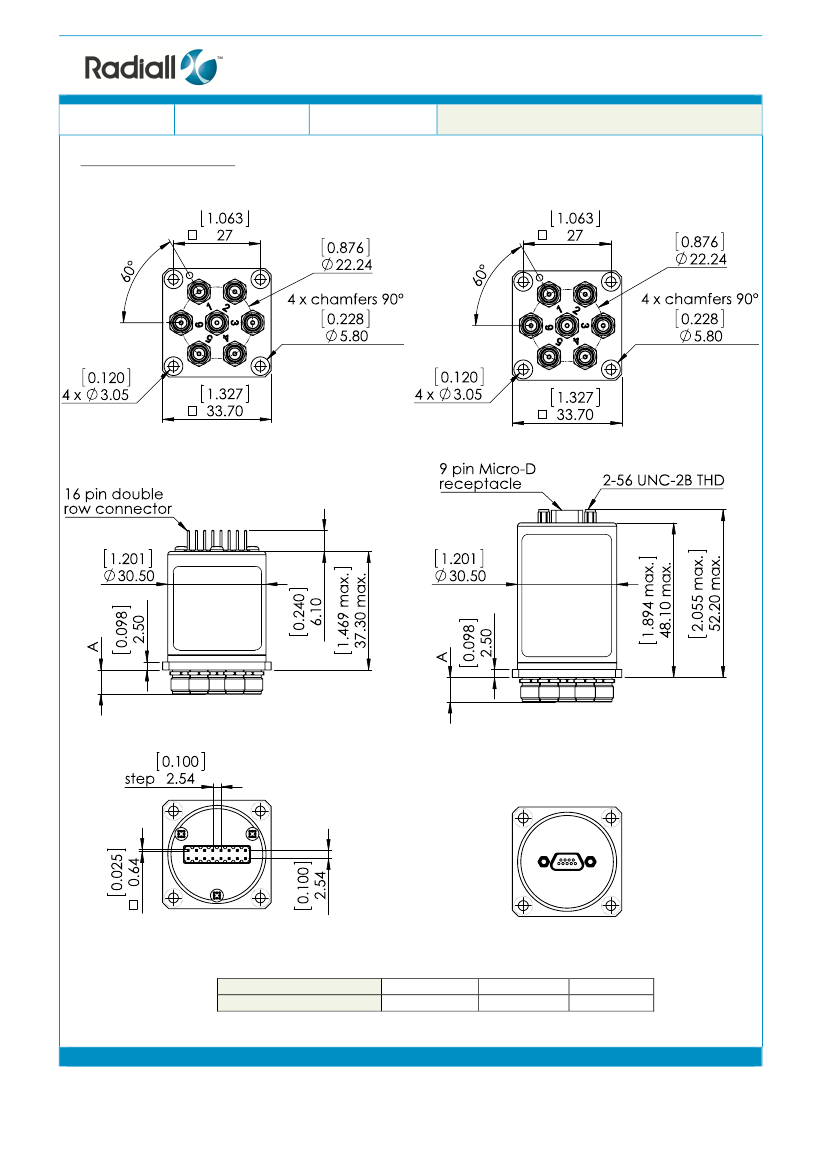

TYPICAL OUTLINE DRAWING
Solder pin model
Micro-D model
All dimensions are in millimetres.[inches]
General tolerances: ±0.5 mm [0.02 in]
Connectors
A max (mm / inches)
SMA
7.7 / 0.303
SMA2.9
6.7 / 0.264
QMA
10.8 / 0.425
Ways 3 and 6 are not connected for SP4T
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
COAXIAL SUBMINIATURE MULTIPORT SWITCHES
PAGE
5/8
ISSUE
09-02-17
SERIES
SPnT
PART NUMBER
R591 XXX XXX

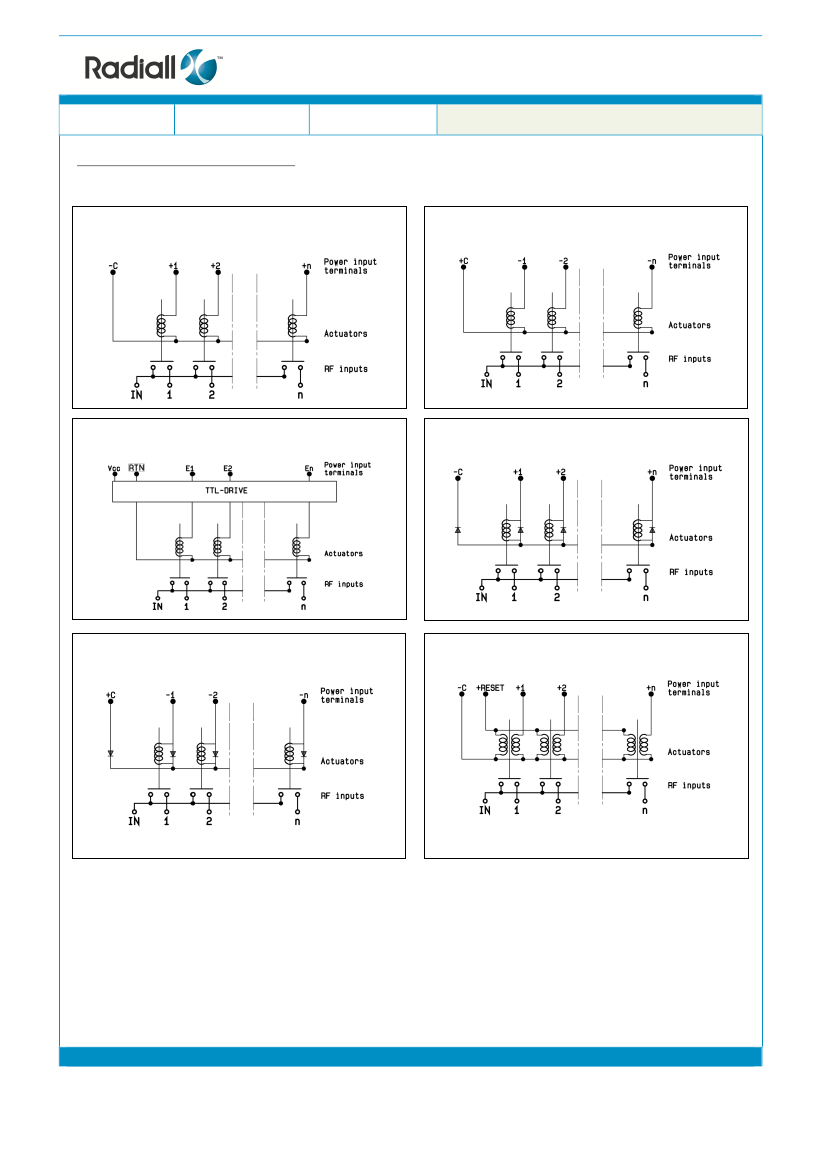

R591 SERIES ELECTRICAL SCHEMATICS
NORMALY OPEN WITHOUT OPTION
NORMALLY OPEN WITH POSITIVE COMMON
R591 -0- -0-
R591 -0- -1-
NORMALLY OPEN WITH TTL DRIVE
NORMALLY OPEN WITH SUPPRESSION DIODES
R591 -0- -2-
R591 -0- -3-
NORMALLY OPEN WITH POSITIVE COMMON AND
SUPPRESSION DIODES
LATCHING GLOBAL RESET WITHOUT OPTION
R591 -0- -4-
R591 -2- -0-
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written agreement
from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
