22-44-6064: Description6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size297KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

22-44-6064 Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

22-44-6064 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SPOX, SHROUDED, POLARIZED
body width	0.15 inch
subject depth	0.41 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN (100)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	17.792 N
Insulation resistance	1000000000 Ω
Insulator color	ORANGE
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	42219
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	1.4734 N

Preview

Download Datasheet

View All

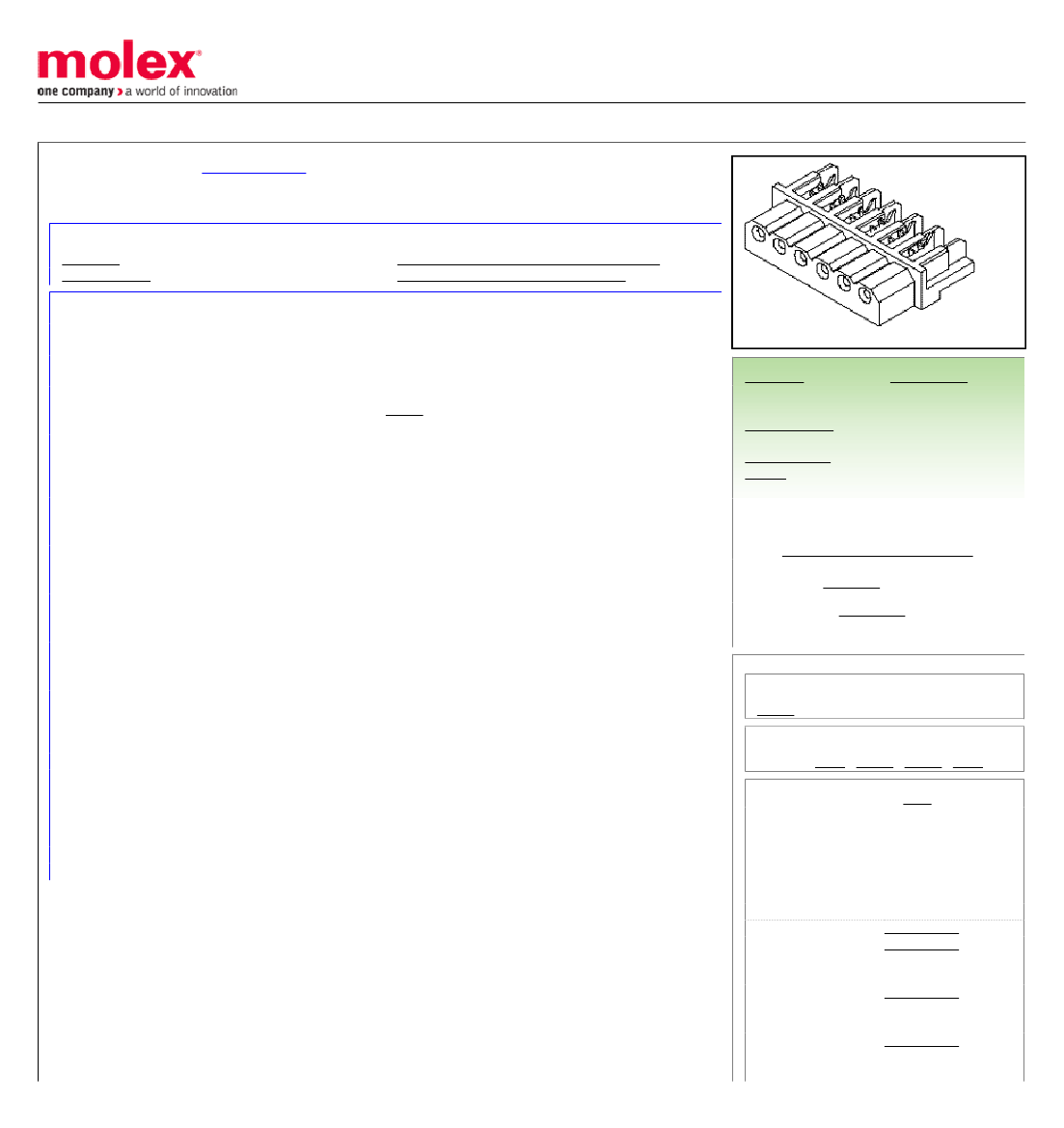

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0022446064

Active

2.5 HEADER ASSY 100

Product Specification PS-42219-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Comments

Crimp Quality Equipment

Product Name

IDT and Solder Connectors

42219

Spring Box|Use with 24 AWG solid

Yes

SPOX™

Physical

Circuits (Loaded)

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Wire Size AWG

94V-0

Female

None

Bag

0.098 In

2.50 mm

0°C to +75°C

24, 26

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

42219Series

Mates With

Headers, 5267 , 42249 , 42267 , 5268

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

IDT - Manual Press 0011219757

Hawk™ Discrete

0623000500

Wire Terminator

Machine 2.5mm

Hawk™ Discrete

0623000700

Wire Terminator

Machine 2.5mm

Changehead

0690080290

for Parallel

Action Handtool

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers

Product Specification

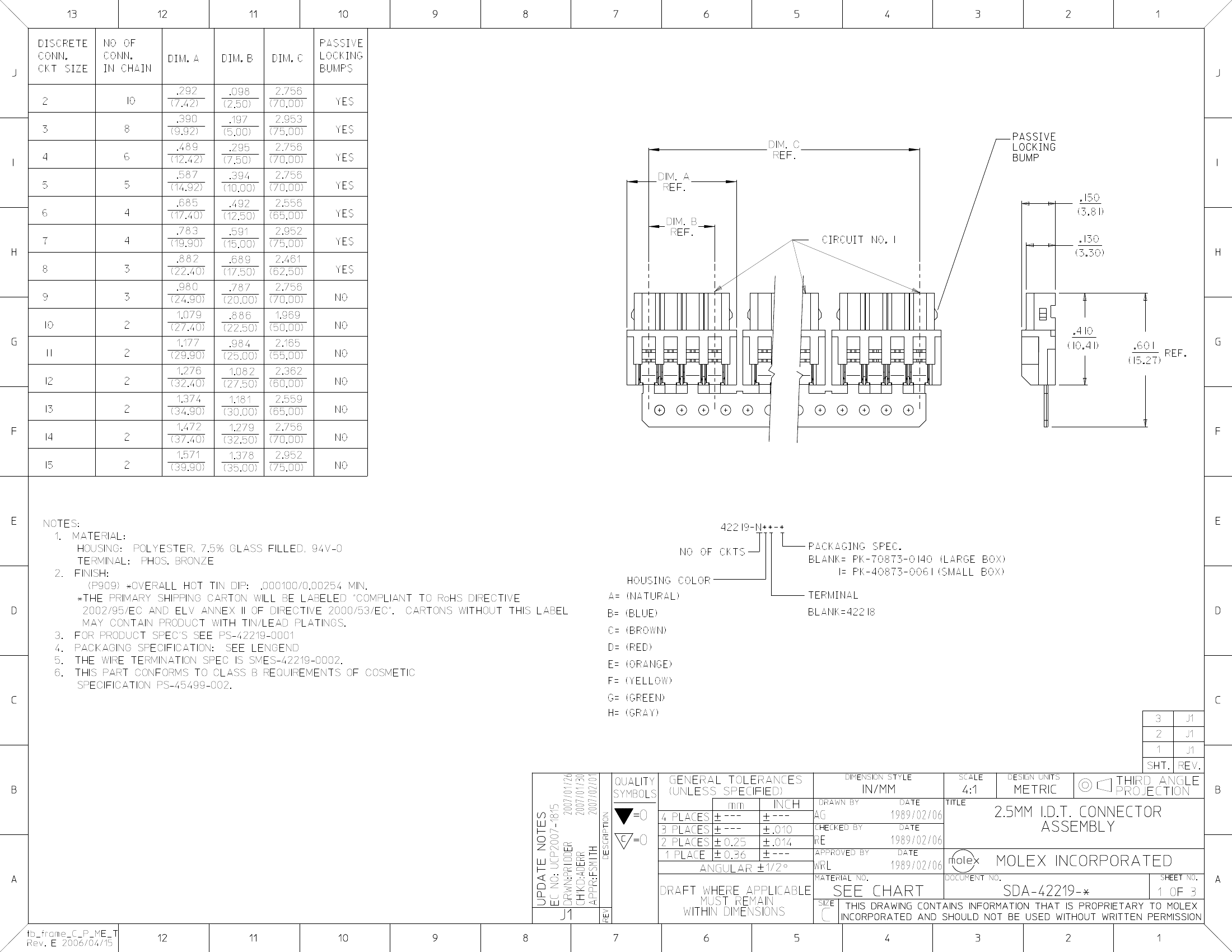

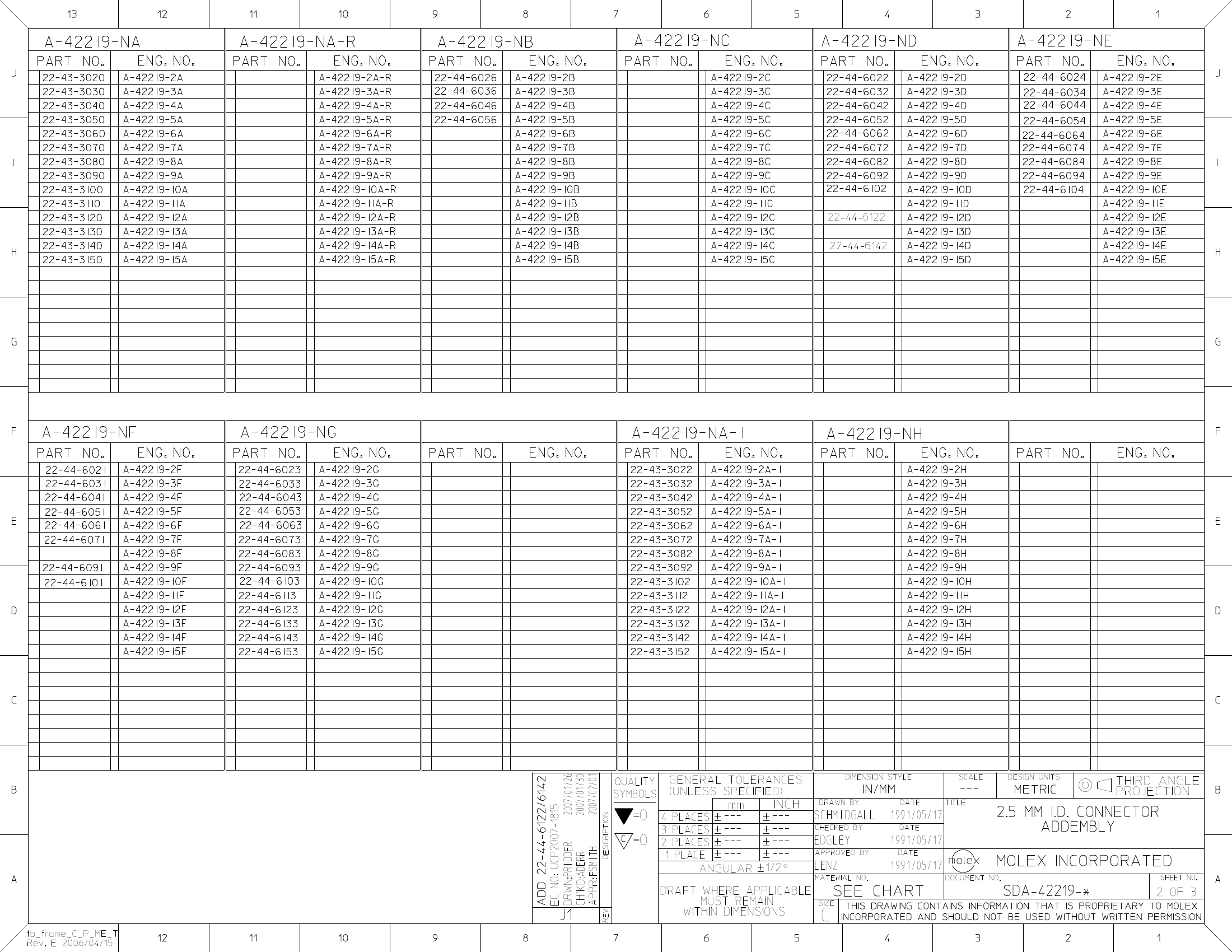

Sales Drawing

PS-42219-0001

SDA-42219-*
