25001-0907 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 25001-0907

25001-0907: Description2.54mm; CategoryThe connector The connector; File Size159KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

25001-0907 Overview

2.54mm

25001-0907 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NO. OF CONTACTS: 9, BOARD, PVC, 26AWG
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0250010907

Active

ribbon_cable_jumpers

2.54mm (.100") Pitch Board-to-Board Ribbon Cable Jumper - 26 AWG, Stranded

Topcoat, 9 Circuits, Strip and Retain, 0.178m (7.00") Length

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Cable

25001

Yes

Asia

ribbon_cable_jumpers

Ribbon

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Geographic Area

Overview

Product Name

Physical

Cable Length

Circuits (Loaded)

Circuits (maximum)

Insulation

Packaging Type

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Temperature Range - Operating

Wire Size AWG

Wire/Cable Type

0.178m (7.00")

PVC

Bag

0.100 In

2.54 mm

-20°C to +105°C

(7x34) Stranded, Topcoat

Electrical

Current - Maximum per Contact

Voltage - Maximum

N/A

300V

Search Parts in this Series

25001Series

Material Info

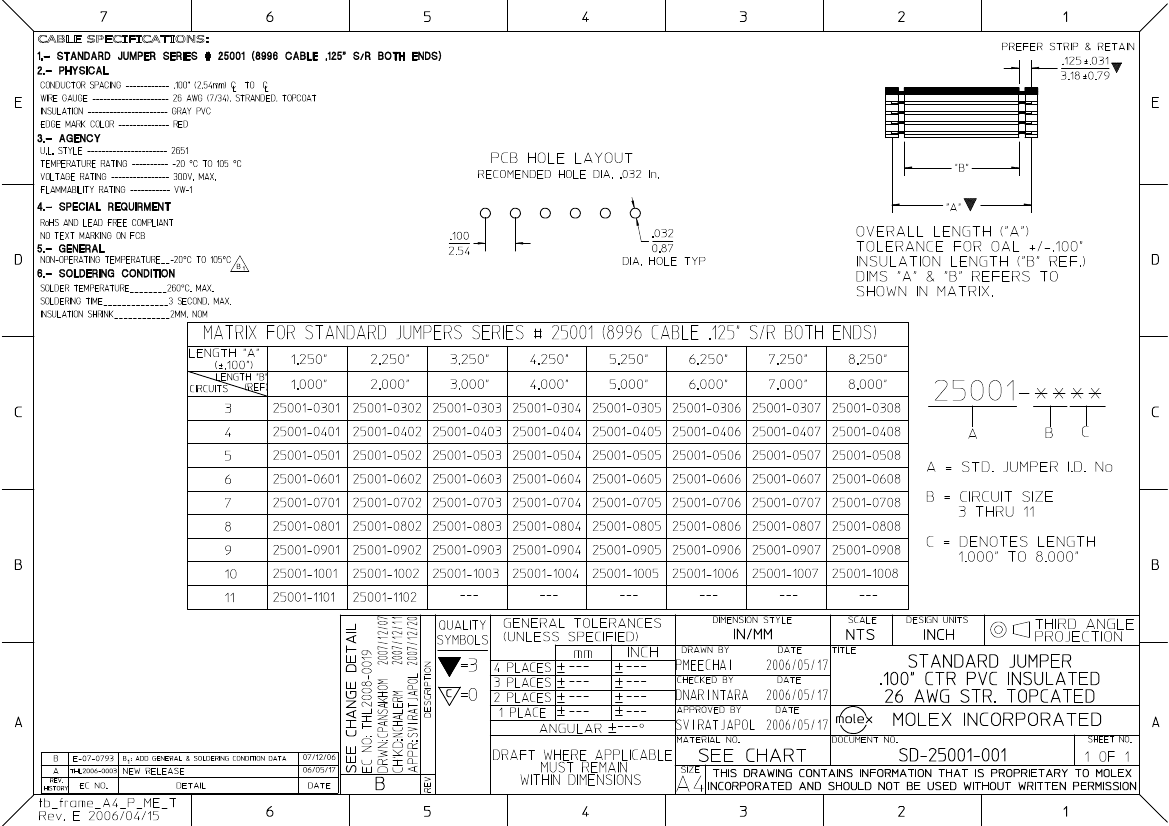

Reference - Drawing Numbers

Sales Drawing

SD-25001-001

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

25001-0907 Related Products

	25001-0907	0250010907
Description	2.54mm	2.54mm
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
