350211001 Overview

BRASS, TIN FINISH, WIRE TERMINAL

350211001 Parametric

Parameter Name	Attribute value
state	Active
erminal_and_terminal_block_type	WIRE TERMINAL
Manufacturer Series	35021
Wire gauge	22 AWG

Preview

Download Datasheet

View All

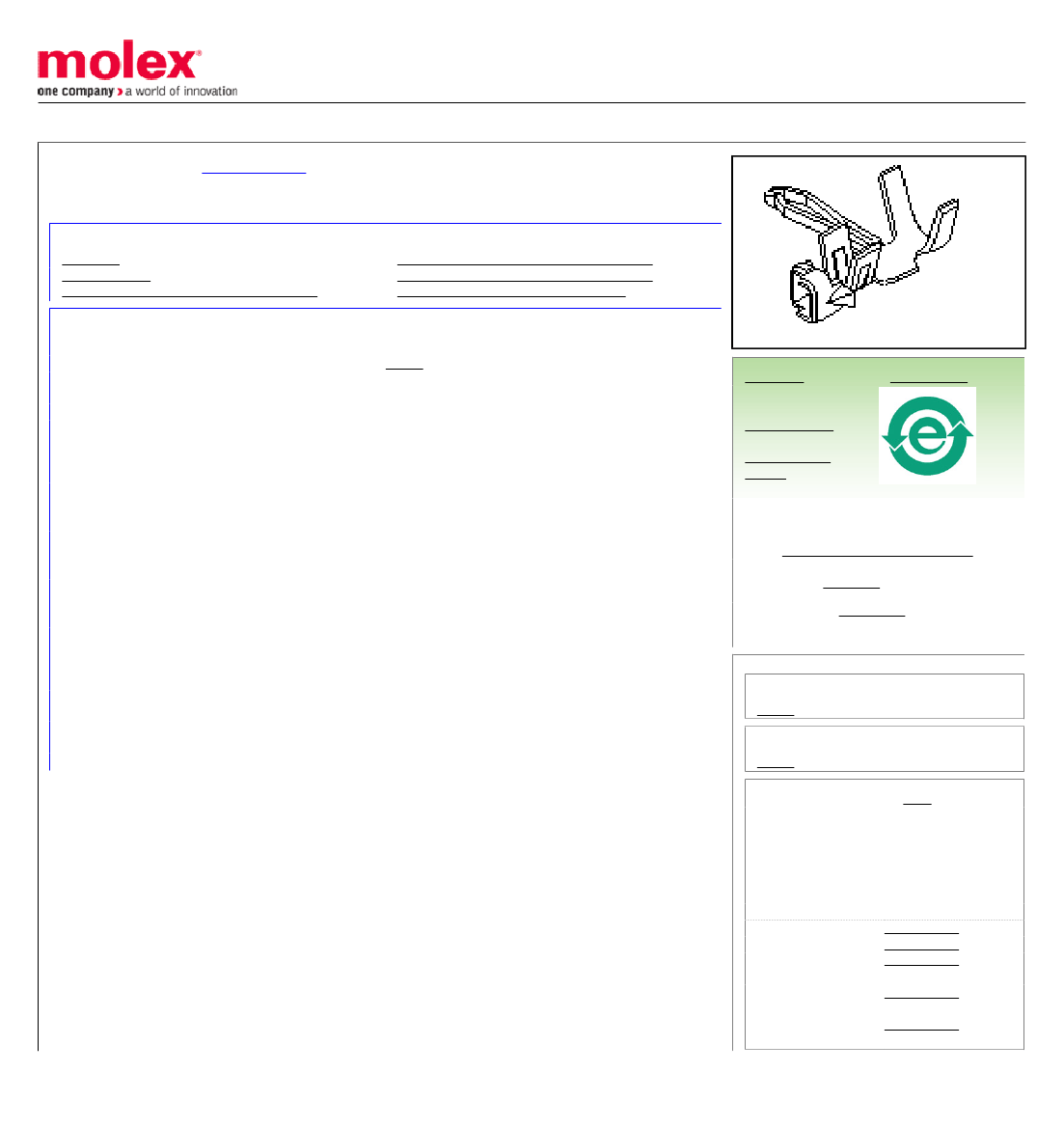

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0350211001

Active

Board-In Right Angle Crimp Terminal 35021, Reel, Brass Tin (Sn)

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35021-001 (PDF)

Product Specification PS-35022-003 (PDF)

Product Specification PS-35808-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Terminals

35021

Right Angle, Use with Housing 35022

Yes

Board-In

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Quality Equipment

Product Name

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Male

Brass

Tin

Reel

32.00

0.800

32.00

0.80

Crimp or Compression

1.9 mm Max (.075" Max)

22, 30

N/A

Material Info

Reference - Drawing Numbers

Product Specification

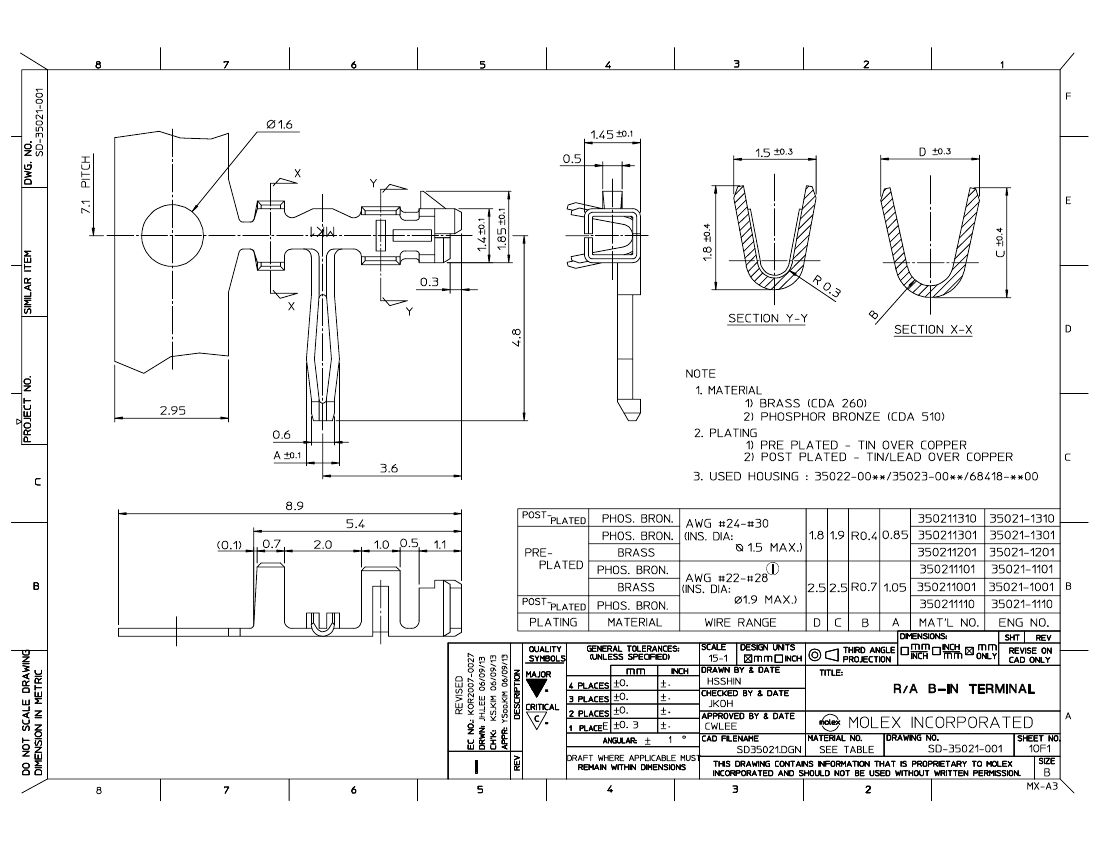

Sales Drawing

PS-35021-001, PS-35022-003, PS-35808-001,

RPS-35022-001

SD-35021-001, SD-35021-1***

Search Parts in this Series

35021Series

Use With

35023 Housing

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

HAND CRIMP TOOL 0638116900

T2 Terminator Die 0638532000

T2 Terminator

0638532100

Tooling Die

FineAdjust™

0638632000

Applicator

FineAdjust™

0638632100

Applicator
