35180-0404 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35180-0404

35180-0404: Description4 CONTACT(S), MALE, POWER CONNECTOR; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35180-0404 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35180-0404	-	-	View	Buy Now

35180-0404 Overview

4 CONTACT(S), MALE, POWER CONNECTOR

35180-0404 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	COMPATIBLE CONTACTS: 3545-0110; 3545-0210; 3545-0310; 3545-0410
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35180
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

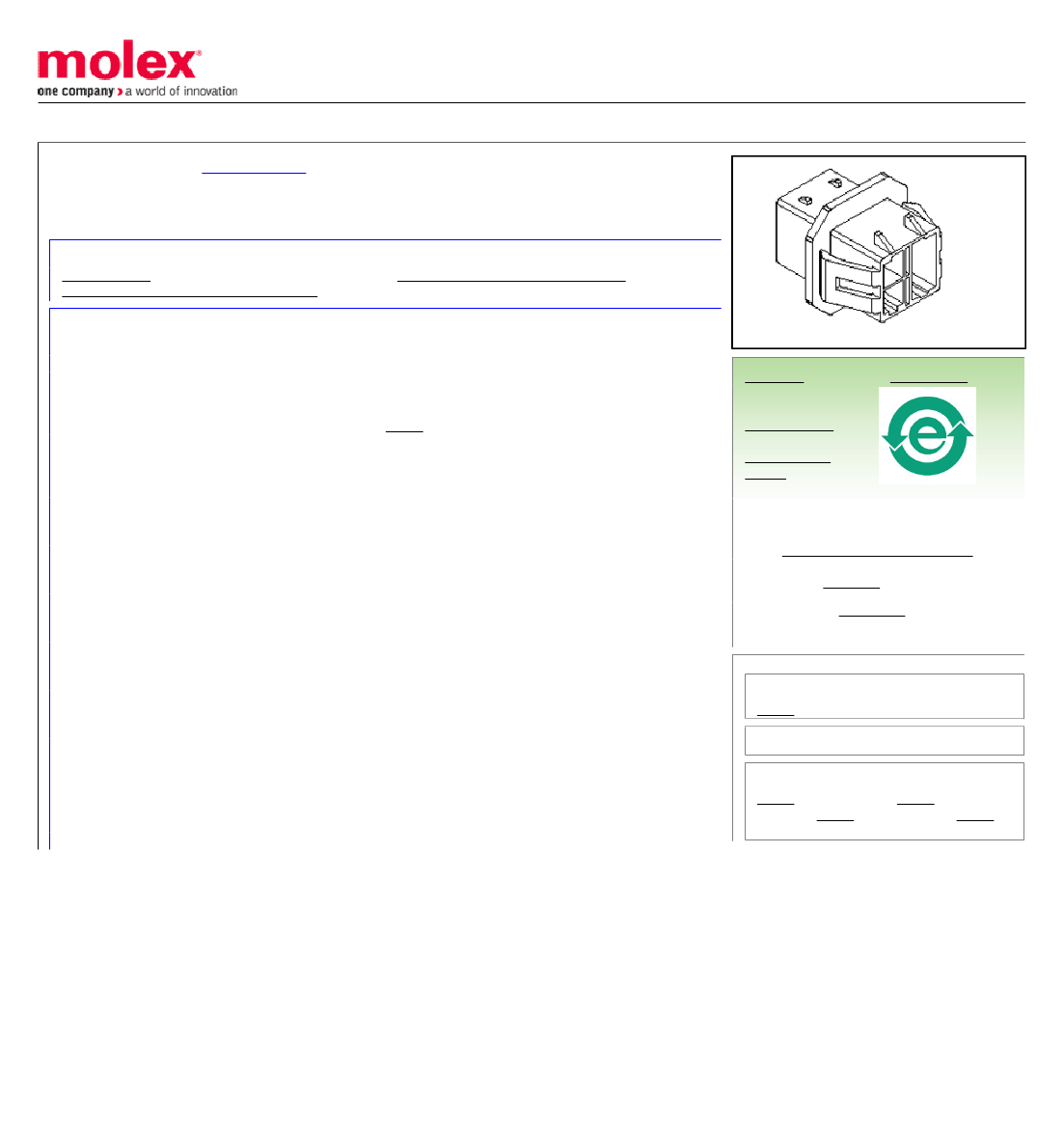

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0351800404

Active

1.78mm (.070") Tab Multiple Wire-to-Wire Male Housing With Ear, 4 Circuits, Vertical,

Polyester UL94V-0, Blue

Documents:

Drawing (PDF)

Product Specification PS-35180-002 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Product Name

Crimp Housings

35180

Polarized to Mating Part

N/A

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Blue

94V-0

Male

None

Yes

Polyester

Bag

Yes

0.315 In, 0.343 In

8.00 mm, 8.70 mm

-40°C to +120°C

Search Parts in this Series

35180Series

Mates With

Use With

35745 Crimp Terminal, 35746 Crimp

Terminal, 35747 Crimp Terminal, 35748

Crimp Terminal

Material Info

Reference - Drawing Numbers

Product Specification

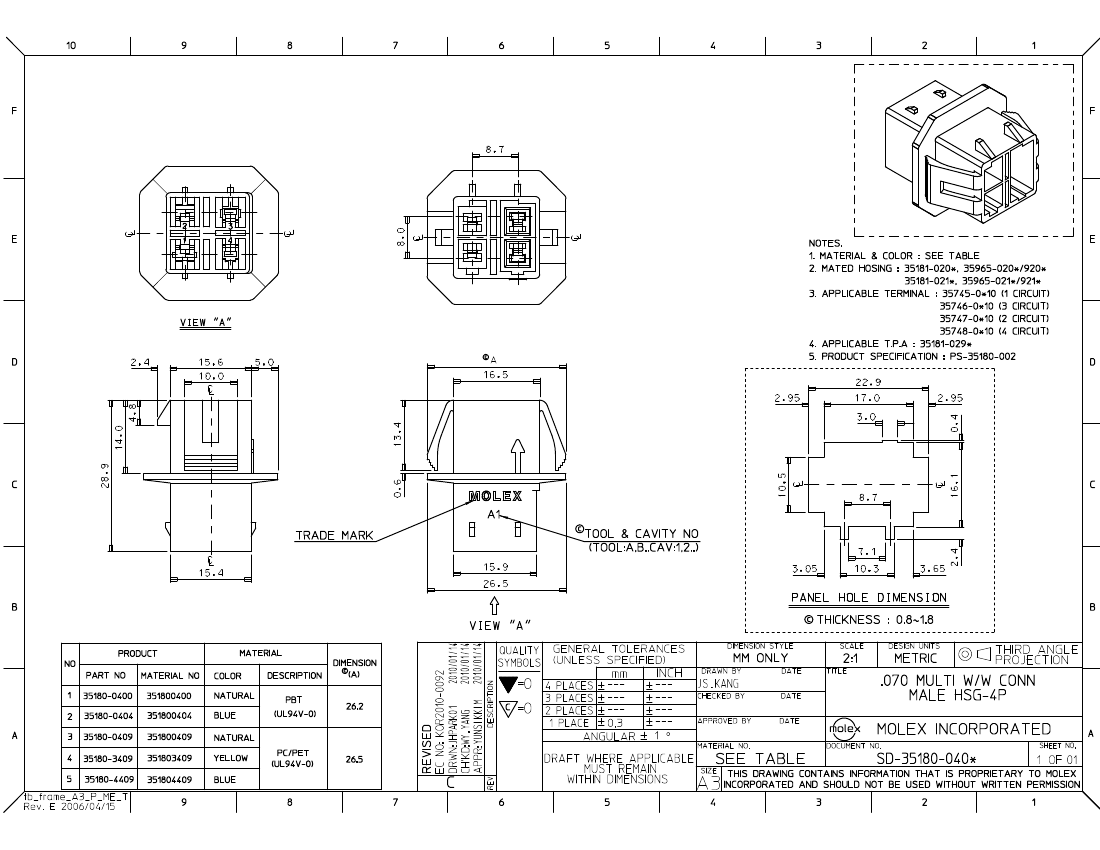

Sales Drawing

PS-35180-002

SD-35180-040*

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
