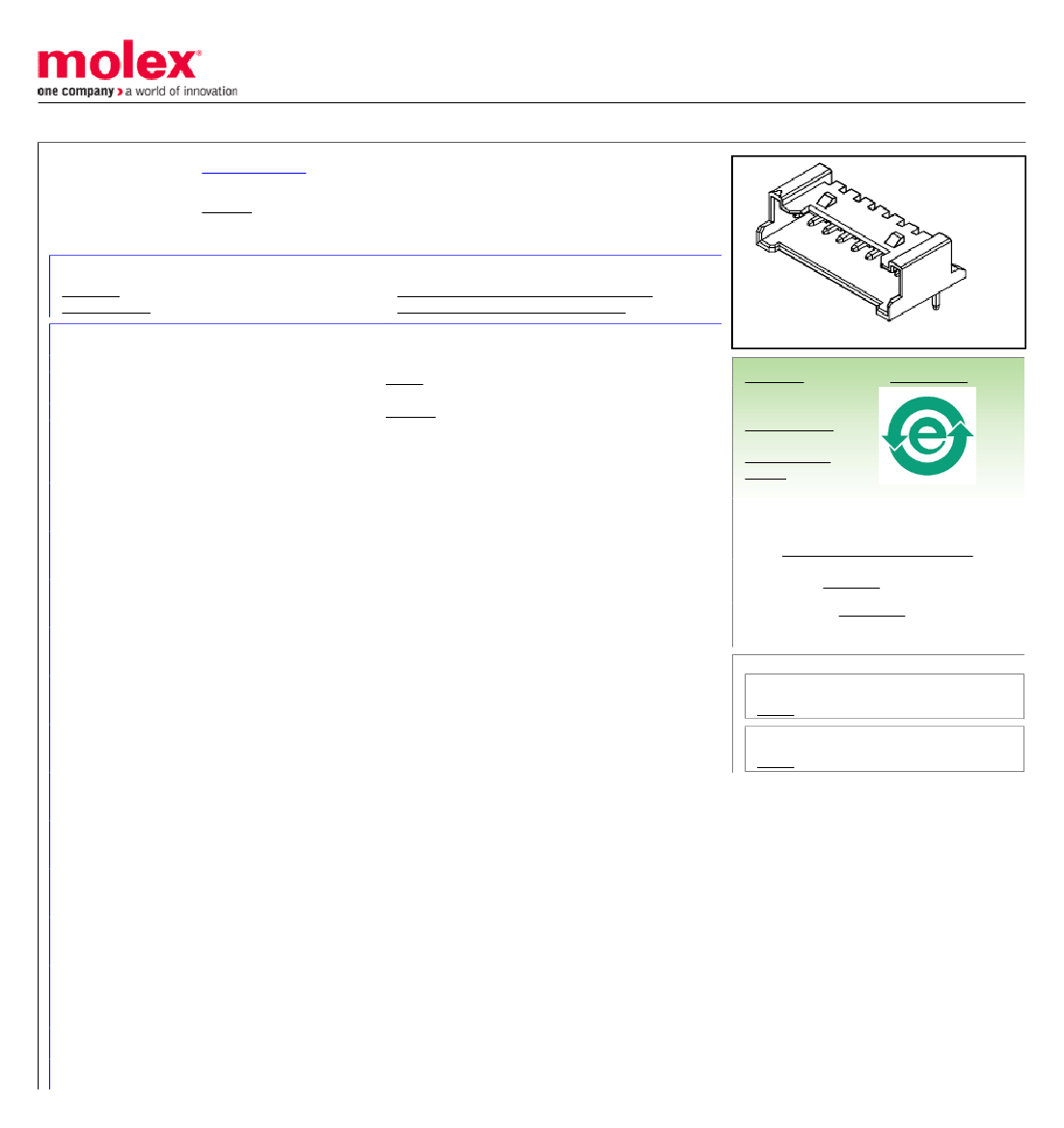

Part Number:
Status:
Overview:
Description:
0353630450
Active
sherlock
2.00mm (.079") Pitch Sherlock™ Wire-to-Board Header, Right Angle, with Positive
Lock, 4 Circuits, Lead-free, White, Glass-field
Documents:
3D Model

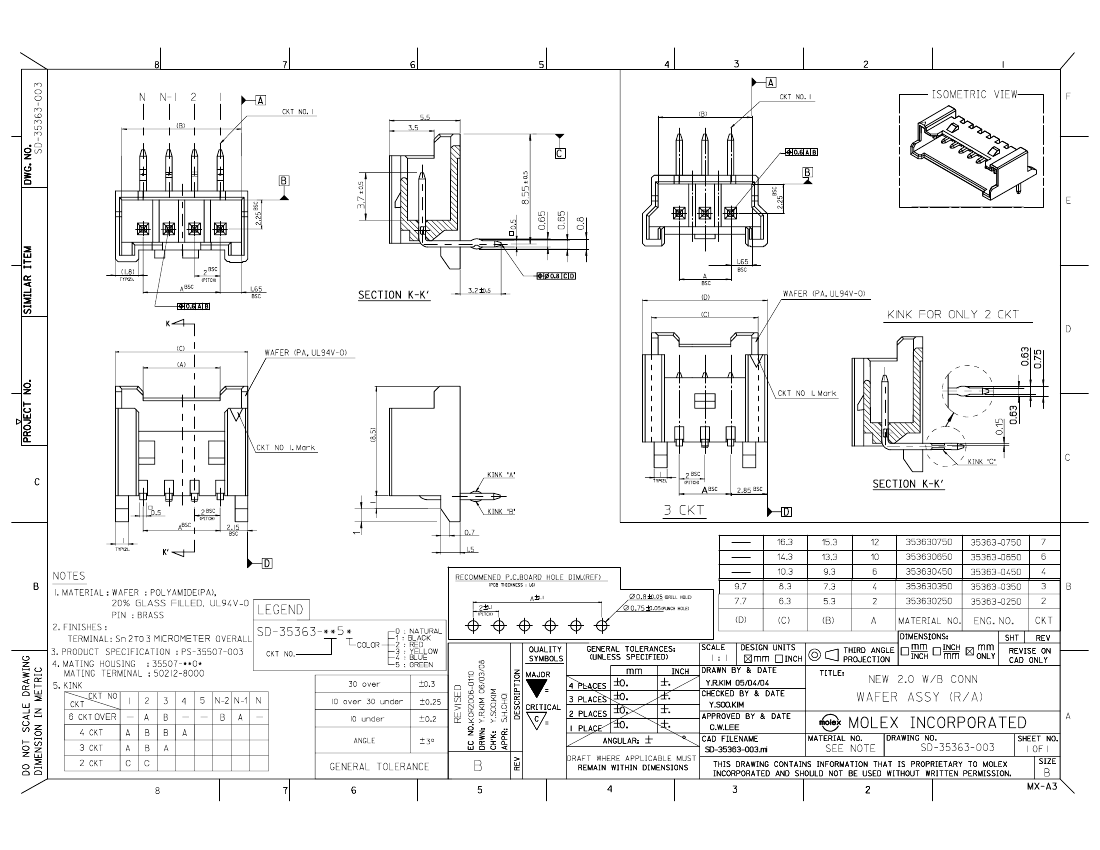

Drawing (PDF)
Product Specification PS-35507-004 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
35363
Wire-to-Board
sherlock
Sherlock™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
4
4
Natural
30
No
No
No
None
Yes
Tin
Tin
Nylon
1
Right Angle
0.126 In
3.20 mm
No
Yes
0.062 In
1.60 mm
Bag
0.079 In
2.00 mm
Yes
No
Partial
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
35363Series
Mates With
35507 Sherlock™ Wire-to-Board Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Material Info
Reference - Drawing Numbers
