38-00-2115 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 38-00-2115

38-00-2115: Description25 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size162KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

38-00-2115 Overview

25 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

38-00-2115 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZED
body width	0.31 inch
subject depth	0.55 inch
body length	2.599 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.807 N
Minimum insulation diameter	0.03 inch
Insulation resistance	500000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	7720
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	200u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	25
UL Flammability Code	94V-2
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0038002115

Active

2.54mm (.100") KK® IDT Double Cantilever Contact, 25 Circuits, Tin (Sn), Feed-

Through, Friction Ramp and Polarizing Rib, Brown ID Strip

Documents:

3D Model

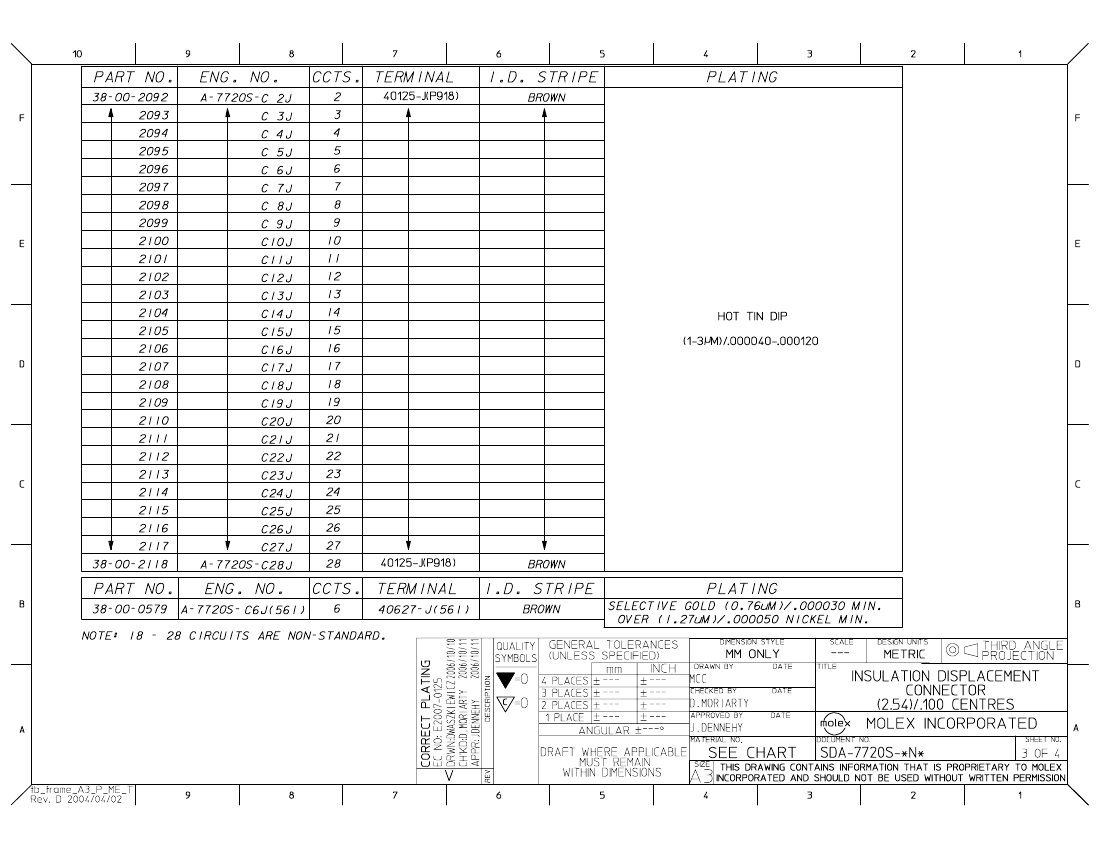

Drawing (PDF)

Product Specification PSX-7690S (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7720

Version J

Yes

KK®

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

94V-2

Female

None

Brass

Tin

Nylon

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

0°C to +75°C

IDT or Pierce

26 Stranded, 28 Solid, 28 Stranded Topcoat

Search Parts in this Series

7720Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Tool for

0638133504

2.54mm (.100") Pitch

KK® IDT Crimp

Terminals

IDT - Semi-automatic 0011200412

- Bench-Top

Terminator

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Old Part Number

7720SC25J

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-7720-100

PSX-7690S

SDA-7720S-*N*

38-00-2115 Related Products

	38-00-2115	7720SC25J	A-7720S-C25J	FYQ-3641HX-20
Description	25 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	25 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	25 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	0.36Inch (9.20mm) digit height Four Digits Display
