39-28-5104 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-28-5104

39-28-5104: Description10 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size296KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-28-5104 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-28-5104	-	-	View	Buy Now

39-28-5104 Overview

10 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC

39-28-5104 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	QF50, POLARIZED
body width	0.335 inch
subject depth	0.551 inch
body length	0.774 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (35) OVER NICKEL
Contact completed and terminated	TIN (35) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	3.058 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	35u inch
polarization key	CTR AND 1 DETENT
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/03/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0039285104

Active

2.54mm (.100") Pitch QF-50™, Right Angle, Dual Row, Single Polarization, Shrouded

Header, 10 Circuits

Documents:

3D Model

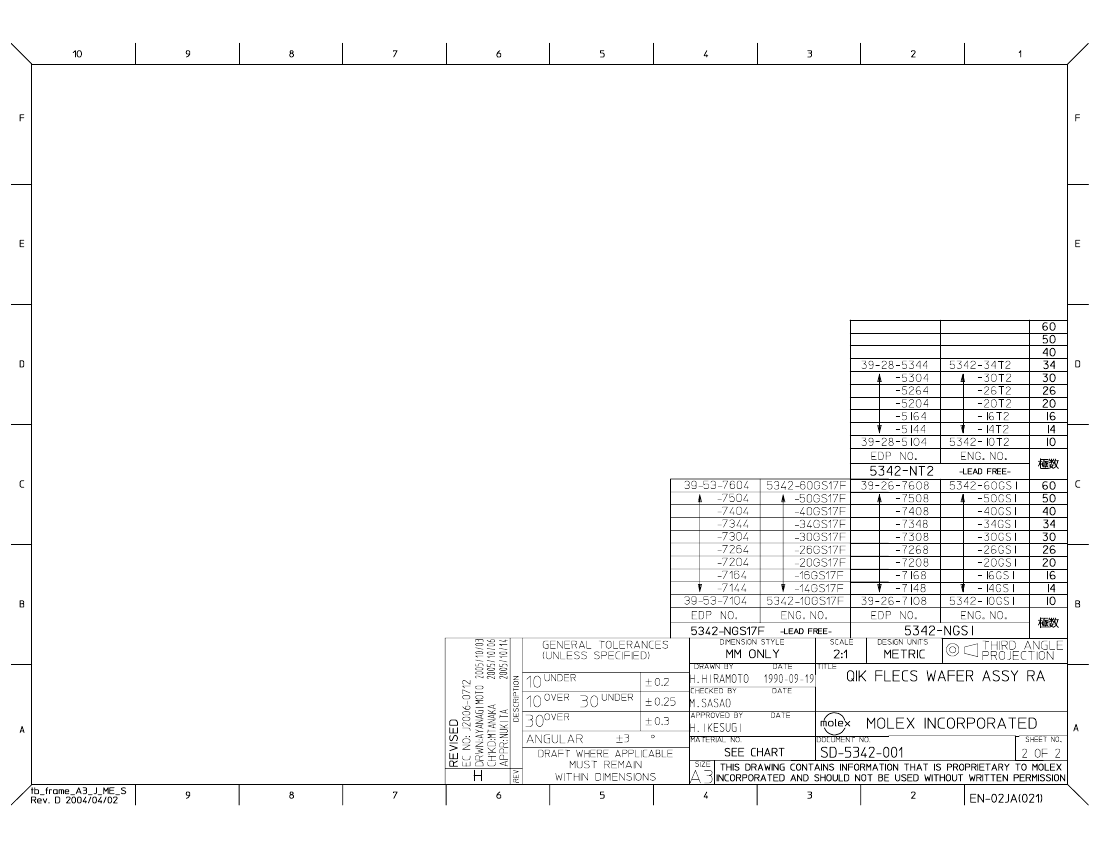

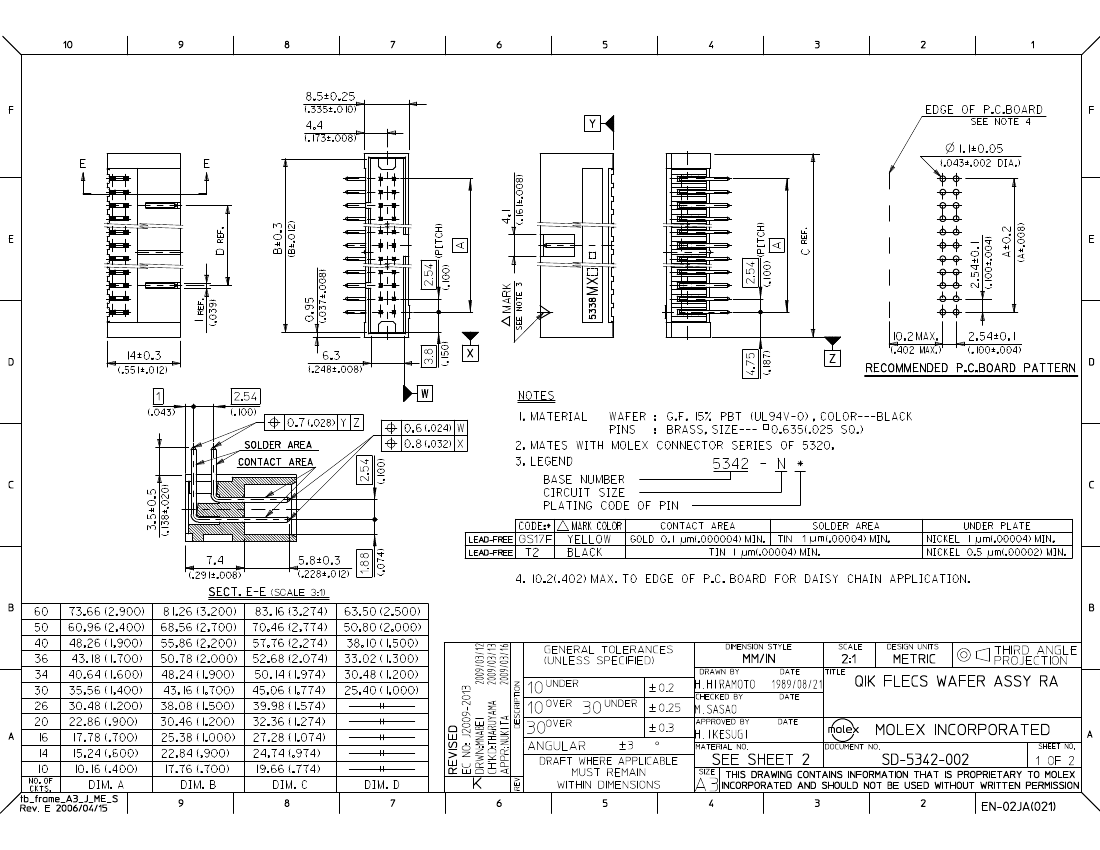

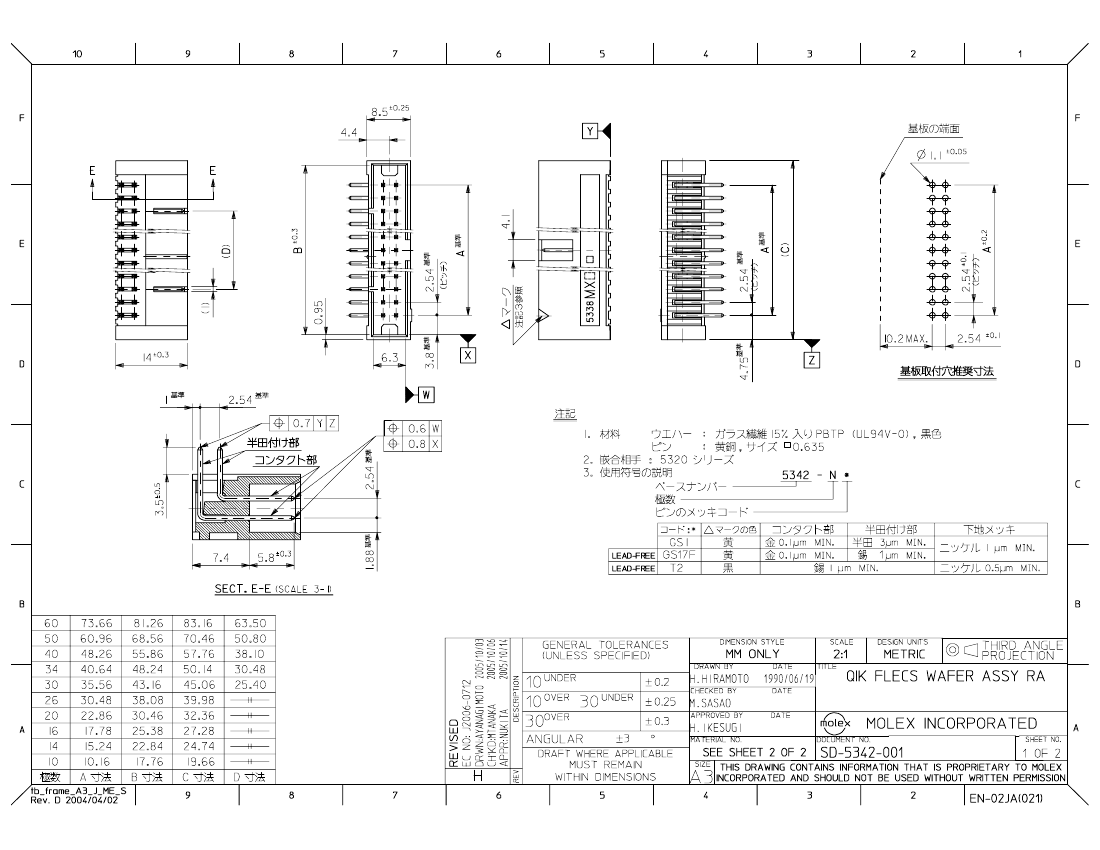

Drawing (PDF)

Product Specification PS-5320-005 (PDF)

Product Specification PS-5320-006 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

E29179

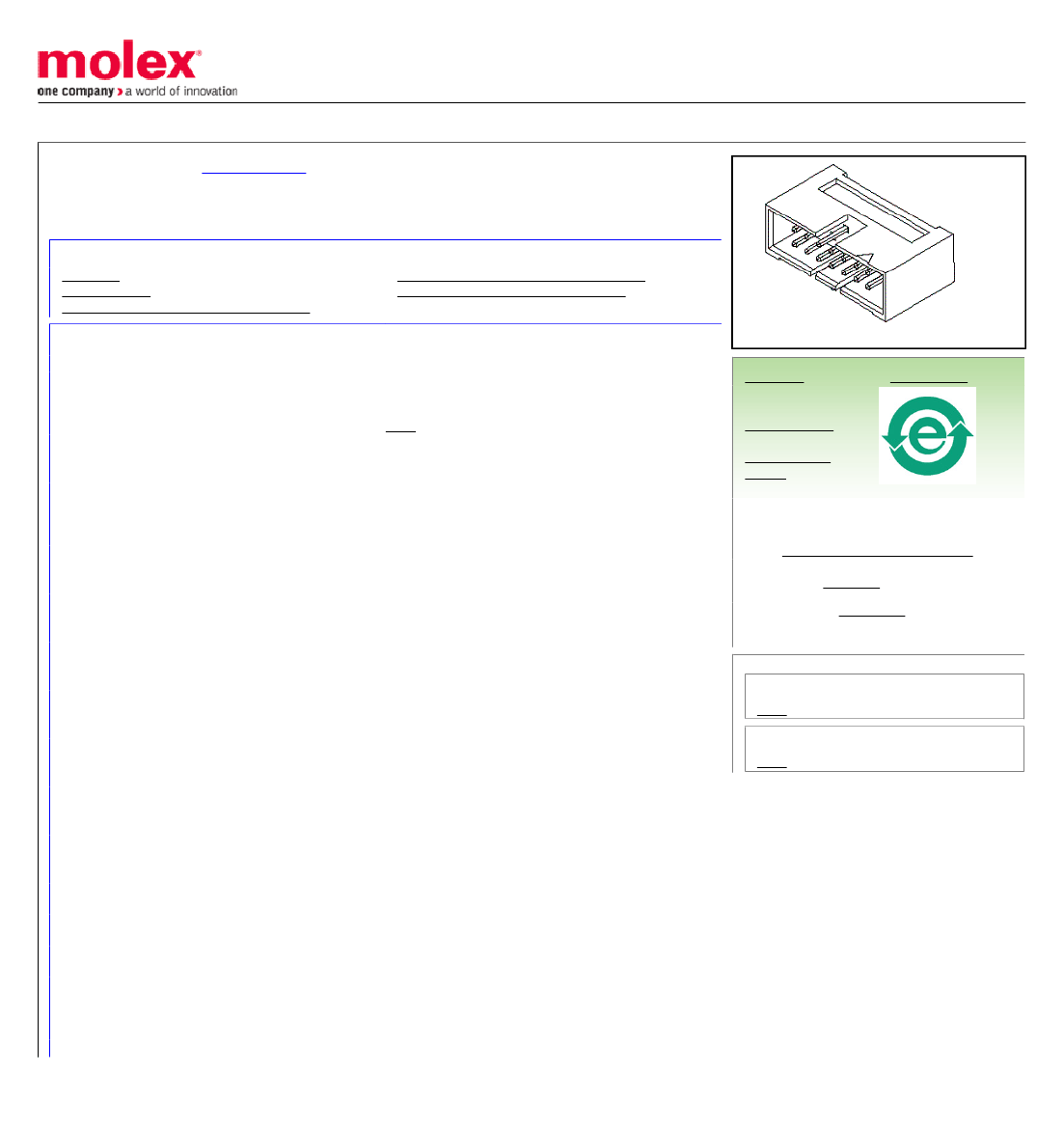

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

5342

PCB Header

QF-50™

Physical

Circuits (Loaded)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

90° Angle

94V-0

None

Brass

Tin

None

0.063 In

1.60 mm

Tray

0.100 In

2.54 mm

Yes

-40°C to +105°C

N/A

Ribbon Cable

Search Parts in this Series

5342Series

Mates With

5320

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Old Part Number

5342-10T2

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-5320-005, PS-5320-006

SD-5342-001, SD-5342-002
