739504BG: Description4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size128KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

739504BG Overview

4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

739504BG Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	4
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	7395
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	MALE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	1
Terminal type	SOLDER
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

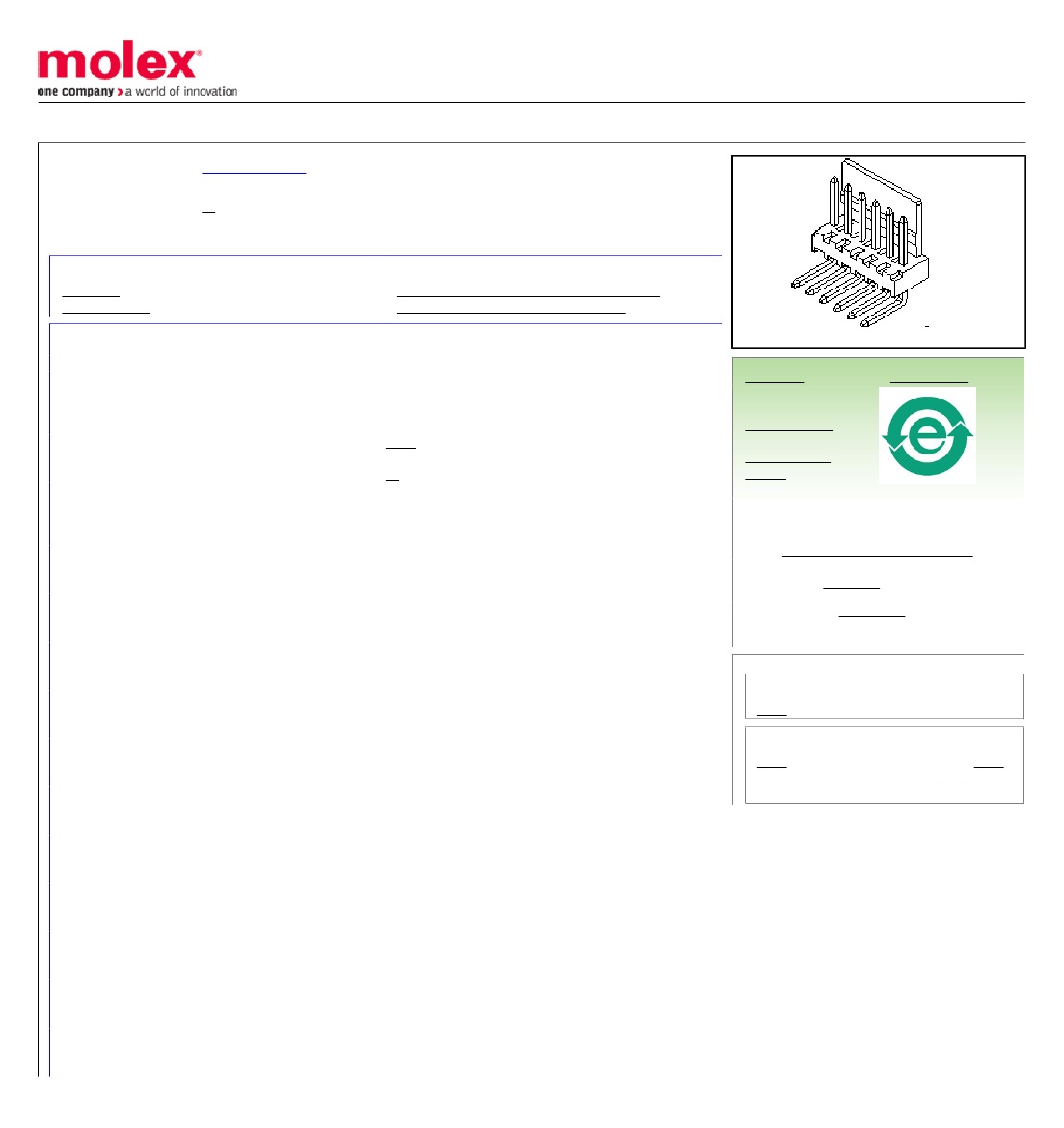

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022124042

Active

2.54mm (.100") Pitch KK® Wire-to-Board Header, Right Angle, with Friction Lock, 4

Circuits

Documents:

3D Model

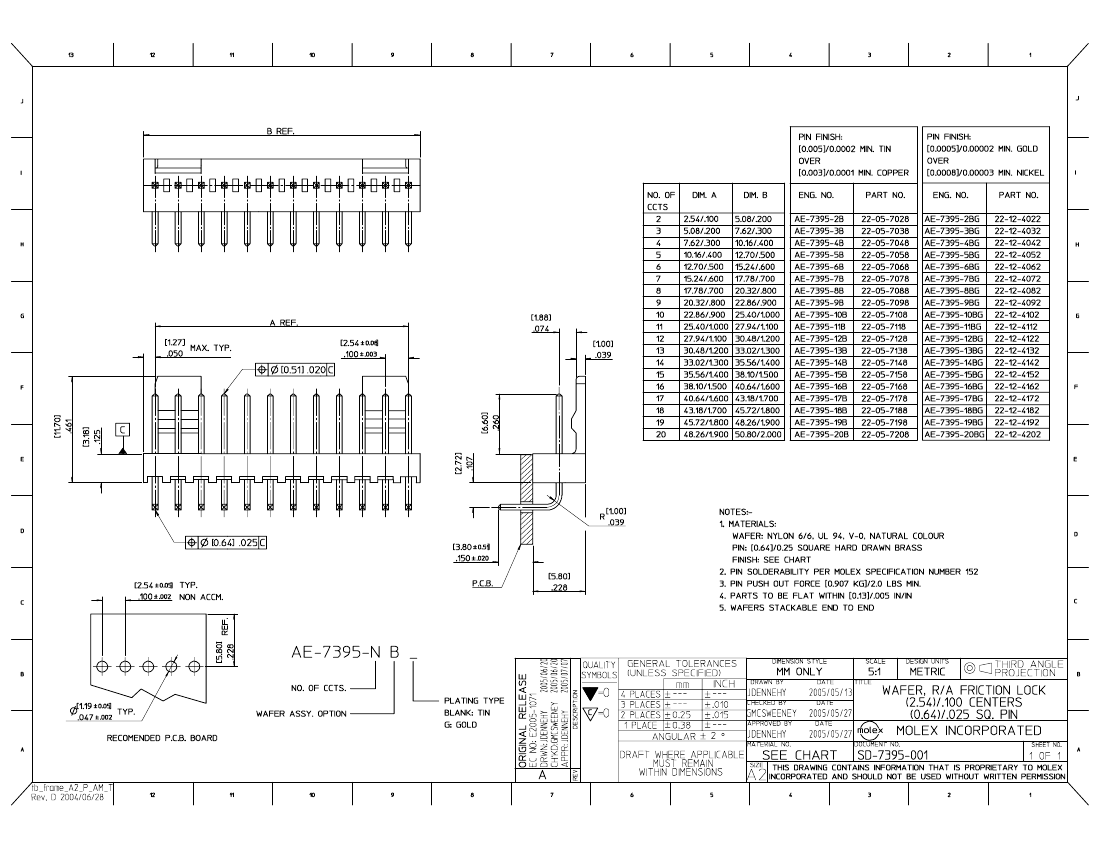

Drawing (PDF)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

7395

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Natural (White)

100

94V-0

None

Yes

Brass

Gold

Nylon

Right Angle

0.150 In

3.80 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

0.5

Yes

Partial

0°C to +75°C

Search Parts in this Series

7395Series

Mates With

2695 KK® Crimp Terminal Housing. 6471

KK® Crimp Terminal Housing. 7720 KK®

IDT Double Cantilever

739504BG Related Products

	739504BG	AE-7395-4BG
Description	4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	4 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Contact materials	NOT SPECIFIED	NOT SPECIFIED
Terminal spacing	2.54 mm	2.54 mm
Total number of contacts	4	4
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Manufacturer Series	7395	7395
Contact surface matching	NOT SPECIFIED	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED	NOT SPECIFIED
Connection Type	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Connector male and female	MALE	MALE
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of load rows	1	1
Terminal type	SOLDER	SOLDER
UL flammability code	94V-0	94V-0
