AA-321-06: DescriptionVersaKrimpâ¢ Ring Tongue Terminal for 18-22 AWG Wire; CategoryThe connector terminals; File Size62KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

AA-321-06 Overview

VersaKrimpâ¢ Ring Tongue Terminal for 18-22 AWG Wire

AA-321-06 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	1 mm2
Wire gauge	18 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

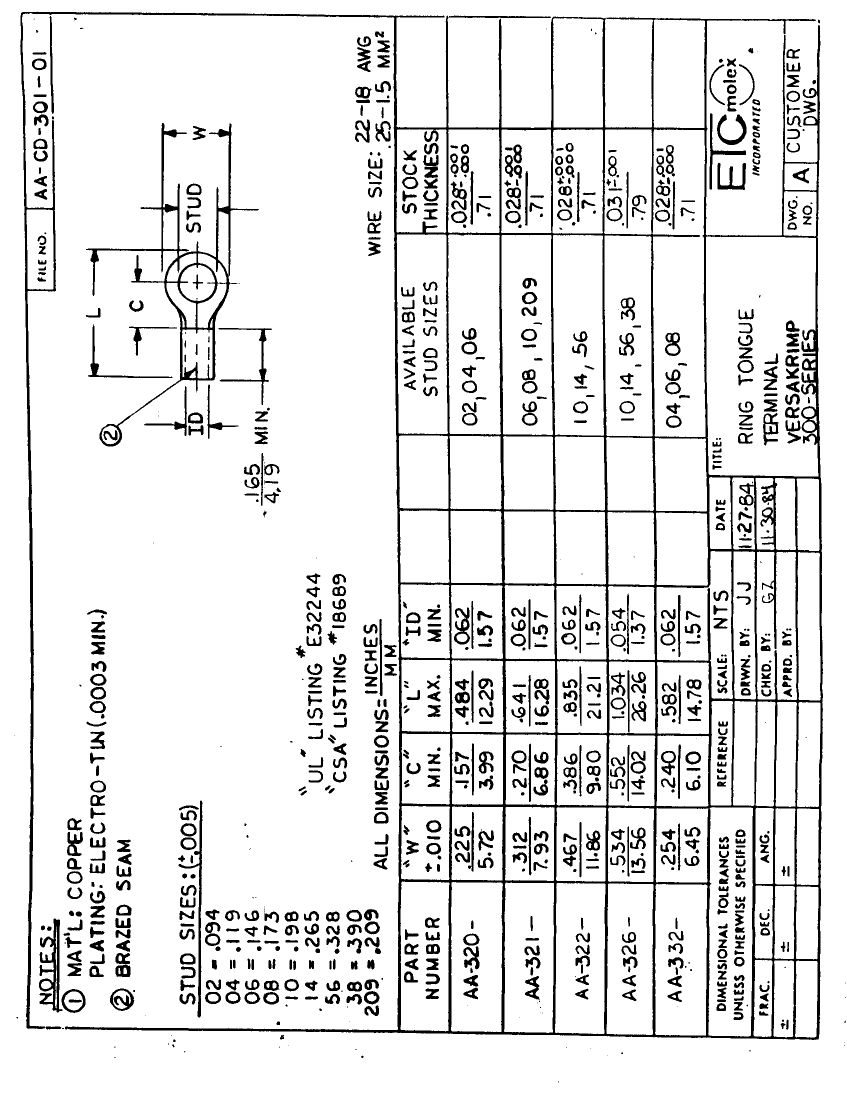

Drawing (PDF)

0191930012

Active

VersaKrimp™ Ring Tongue Terminal for 18-22 AWG Wire

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19193

Yes

N/A

VersaKrimp™

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Wire Size AWG

Wire Size mm²

Closed - Brazed

None

Tin

Bag

5-6 (M3-3.5)

18, 20, 22

0.35 - 0.80

Material Info

Old Part Number

AA-321-06

Reference - Drawing Numbers

Sales Drawing

AACD30101

Search Parts in this Series

19193Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640030100

Crimp Head for the 0640070100

AT-200™ Pneumatic

Hand Tool

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
