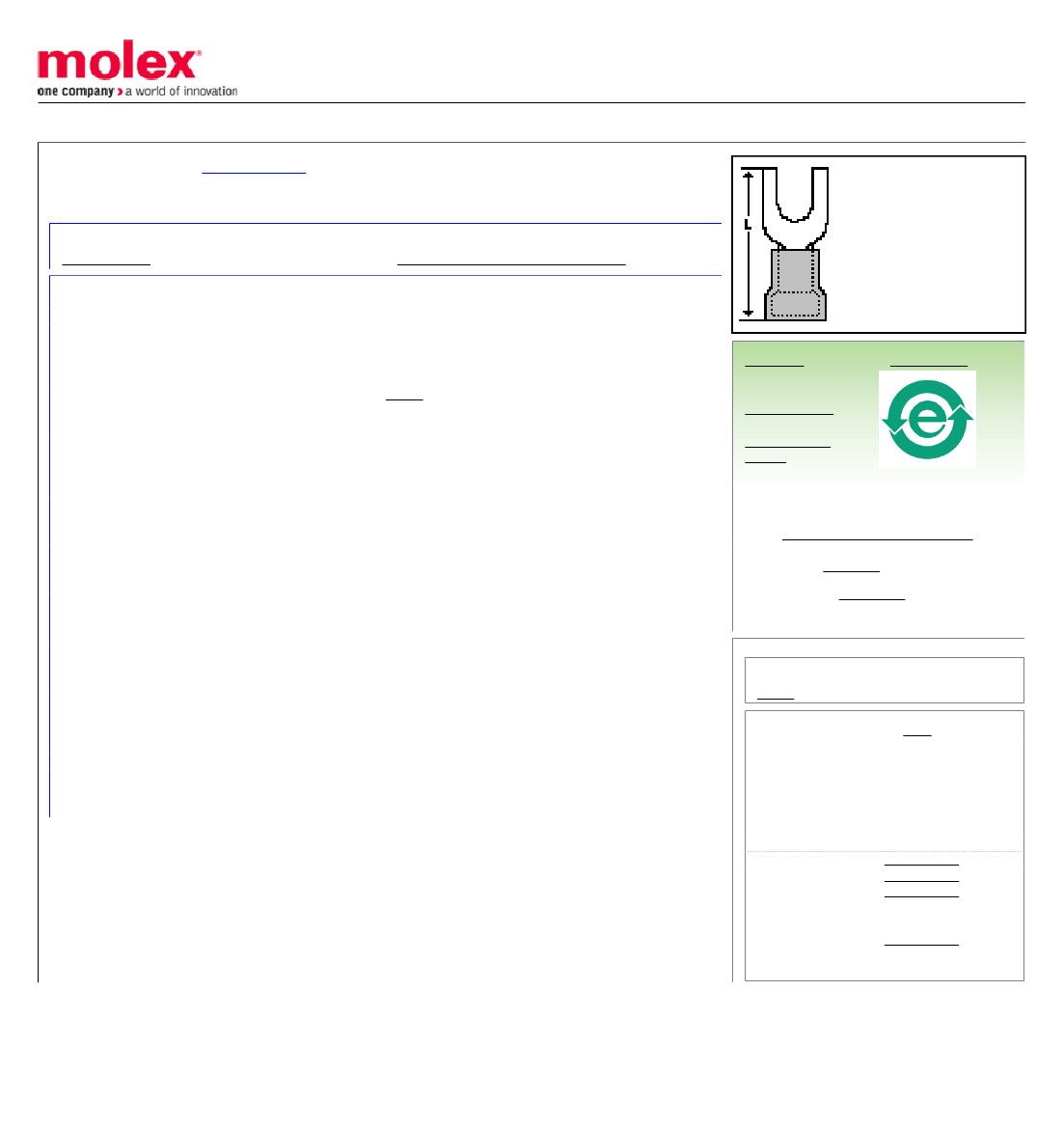

Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191980012
Active
Avikrimp™ Spade Tongue Terminal for 14-16 AWG Wire
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19198
Yes
N/A
Avikrimp™
Spade
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-0
Nylon (PA)
Tin
Bag
100
2.5
100
2.5
5-6 (M3-3.5)
Crimp or Compression
4.30mm (.170") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19198Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Material Info
Old Part Number
BB-807-06

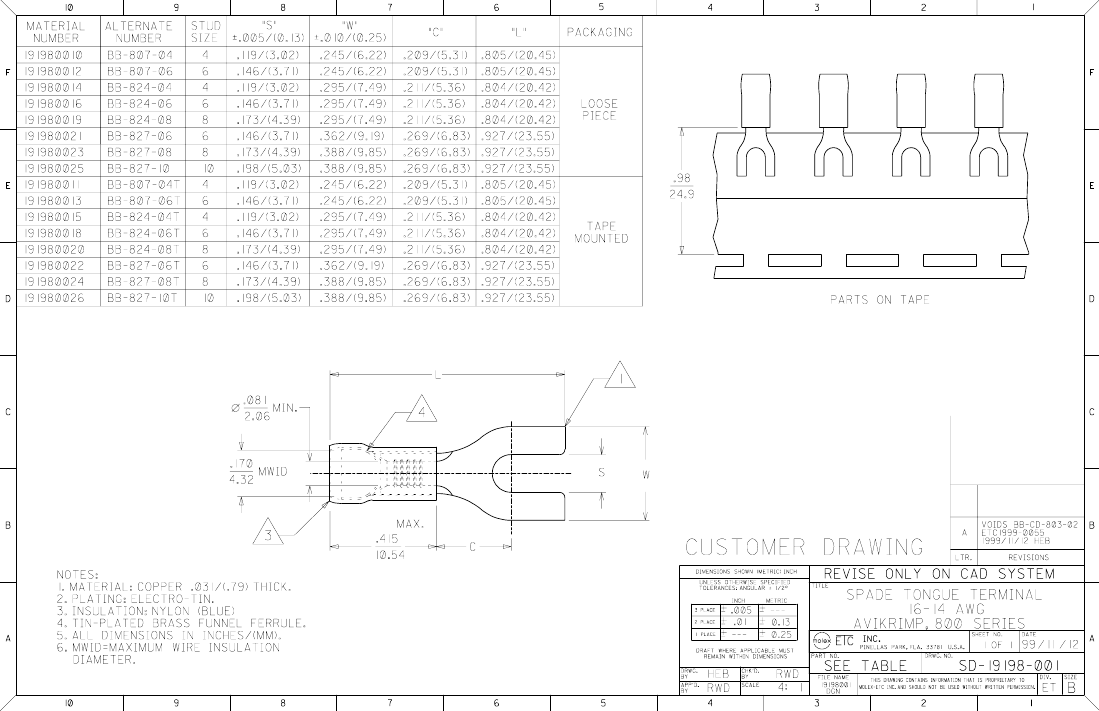

Reference - Drawing Numbers
Sales Drawing
BBCD80302, SD-19198-001
