Part Number:
Status:
Description:
0190380001
Active
InsulKrimp™ Snap Plug Receptacle, for 18-22 AWG Wire, PVC, Fits Male Plug
Diameter 3.96mm (.156")
Series
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Documents:
Drawing (PDF)
Agency Certification
CSA
UL
LR18689
E152602
General
Product Family
Series
Comments
Crimp Quality Equipment
MolexKits
Product Name
Type
Quick Disconnects
19038
Fits Male Plug size 3.96mm (.156")
Yes
Yes
InsulKrimp™
Snap Receptacle
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Tab Thickness
Tab Width
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
PVC
None
Brass
Tin
Tin
PVC
Straight
Bag
160
4
160
4
N/A
N/A
Crimp or Compression
3.25mm (.128") max.
18, 20, 22
0.25 - 1.50
Search Parts in this Series
19038Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640012300
Crimp Head for the 0640052300
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
BRA-2156
Reference - Drawing Numbers

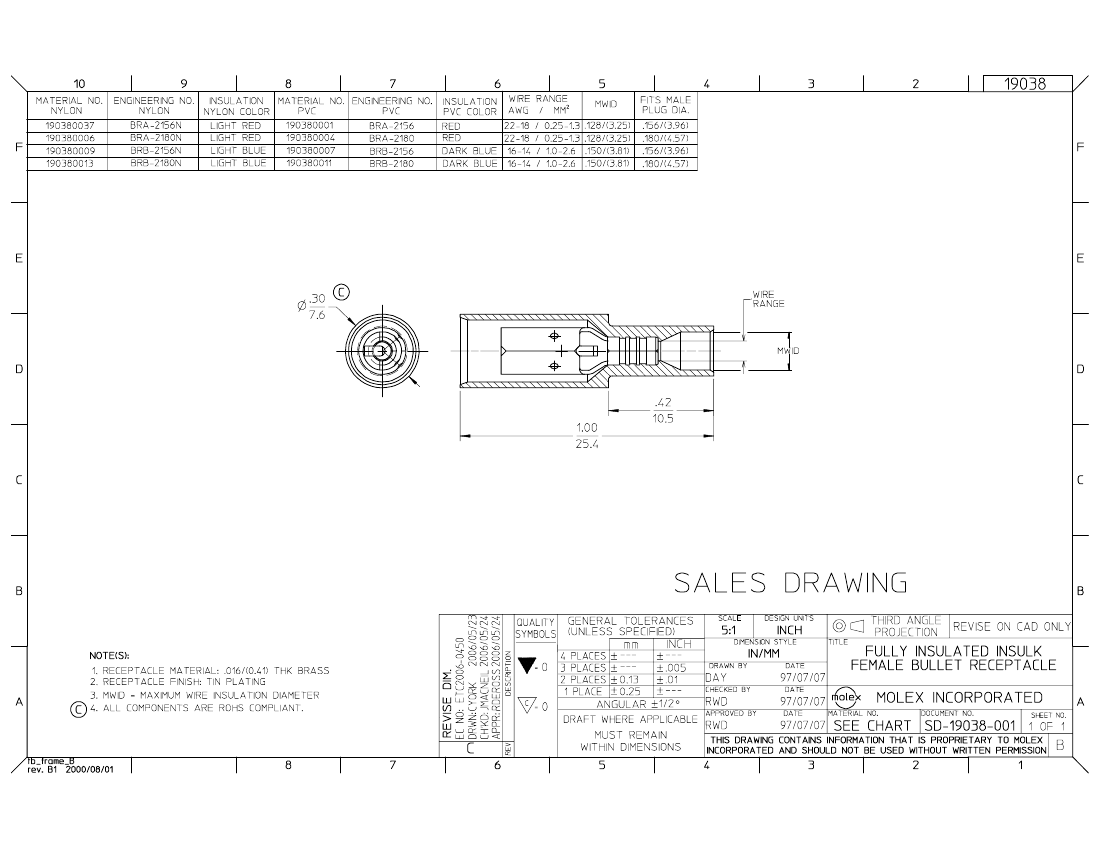

Sales Drawing
SD-19038-001
