C-841-06 Overview

Avikrimpâ¢ Spade Tongue Terminal for 10-12 AWG Wire

C-841-06 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Conductor cross section	5 mm2
Wire gauge	10 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

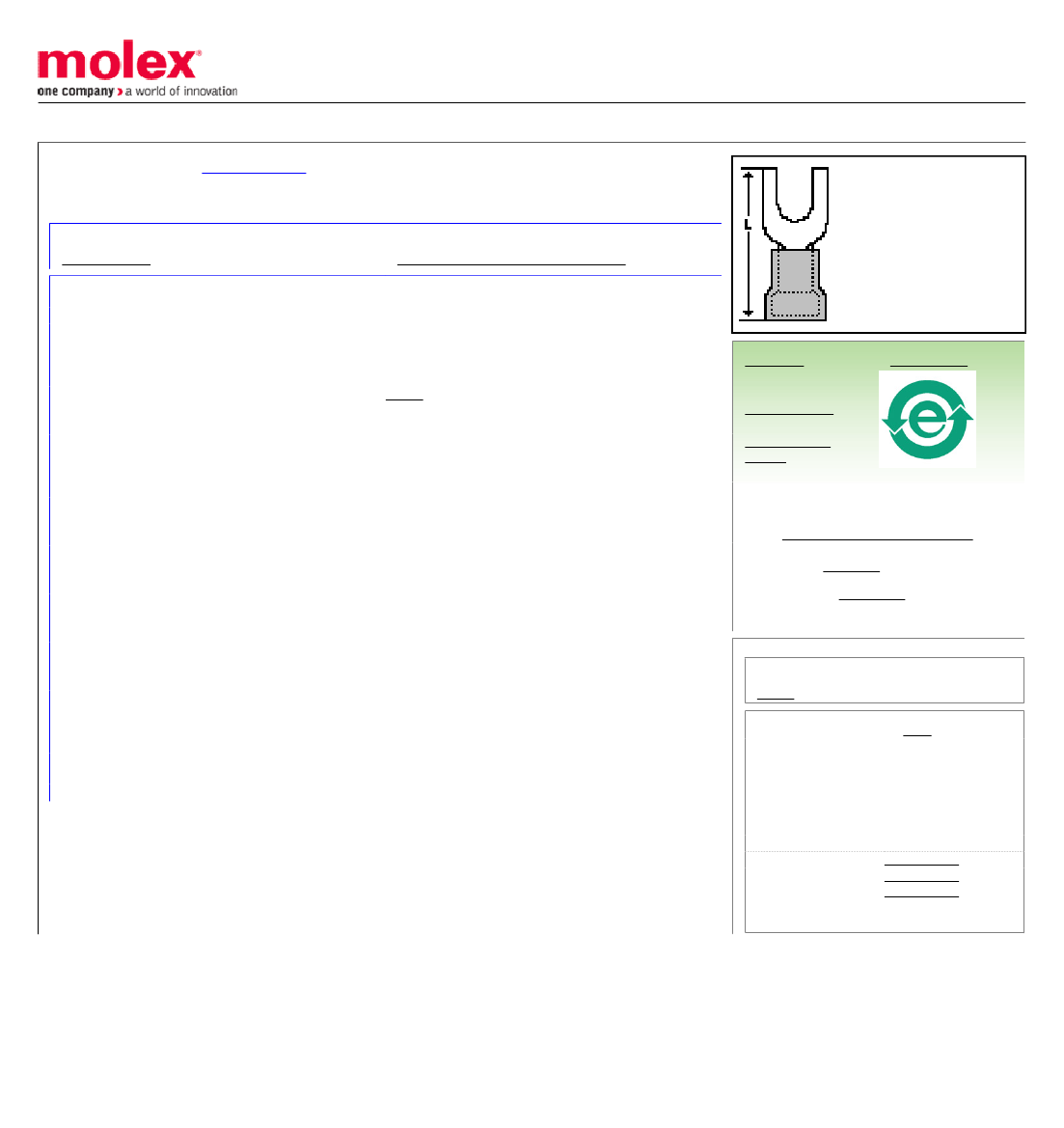

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0191980044

Active

Avikrimp™ Spade Tongue Terminal for 10-12 AWG Wire

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19198

Yes

N/A

Avikrimp™

Spade

Physical

Barrel Type

Flammability

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

94V-0

Nylon (PA)

Tin

Bag

100

2.5

100

2.5

5-6 (M3-3.5)

5.70mm (.225") max.

10, 12

3.30 - 5.00

Search Parts in this Series

19198Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640010100

Hand Crimp Tool

0640011500

Crimp Head for the 0640050100

AT-200™ Pneumatic

Hand Tool

Material Info

Old Part Number

C-841-06

Reference - Drawing Numbers

Sales Drawing

CCD80302

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

C-841-06 Related Products

	C-841-06	0191980044
Description	Avikrimpâ¢ Spade Tongue Terminal for 10-12 AWG Wire	avikrimp? spade tongue terminal for 10-12 awg wire
Reach Compliance Code	unknow	compliant
ECCN code	EAR99	EAR99
Terminal and terminal strip types	WIRE TERMINAL	FORK TERMINAL
Conductor cross section	5 mm2	5 mm2
Wire gauge	10 AWG	10 AWG
Base Number Matches	1	1
