Part Number

Search

33482-0403

Description
4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR
CategoryThe connector    The connector
File Size284KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

33482-0403 Overview

4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR

33482-0403 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresPOLARIZATION AVAILABLE
body width0.871 inch
body length0.608 inch
Body/casing typeRECEPTACLE
Connector typeCOMBINATION LINE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleBLADE PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulator colorBROWN
insulator materialGLASS FILLED NYLON
MIL complianceNO
Manufacturer's serial number33482
Plug contact pitch0.138 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)22 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialGLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE
Total number of contacts4
Base Number Matches1
This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0334820403
Active
mx150_sealed_connector_system
3.50mm (.138") Pitch MX150™ Sealed Male Connector, Dual Row, 4 Circuits,
Polarization C, without Connector Position Assurance, Brown
Documents:
3D Model
Application Specification (PDF)
Drawing (PDF)
Product Specification PS-33472-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Comments
More Detailed Tech Information
Overview
Product Name
Crimp Housings
33482
No Connector Position Assurance (CPA)
http://ewcap.uscarteams.org
mx150_sealed_connector_system
MX150™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
4
4
Black, Brown, Natural
Male
No
Yes
Yes
Modified Polystyrene Alloy
2
Bag
No
0.138 In
3.50 mm
Yes
No
-40°C to +125°C
Search Parts in this Series
33482Series
Mates With
33472 Female Dual Row Sealed Connector
Use With
33000 MX150™ Tin (Sn) Male Terminal,
33011 Gold (Au) Male Terminal
Electrical
Current - Maximum per Contact
22A
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification

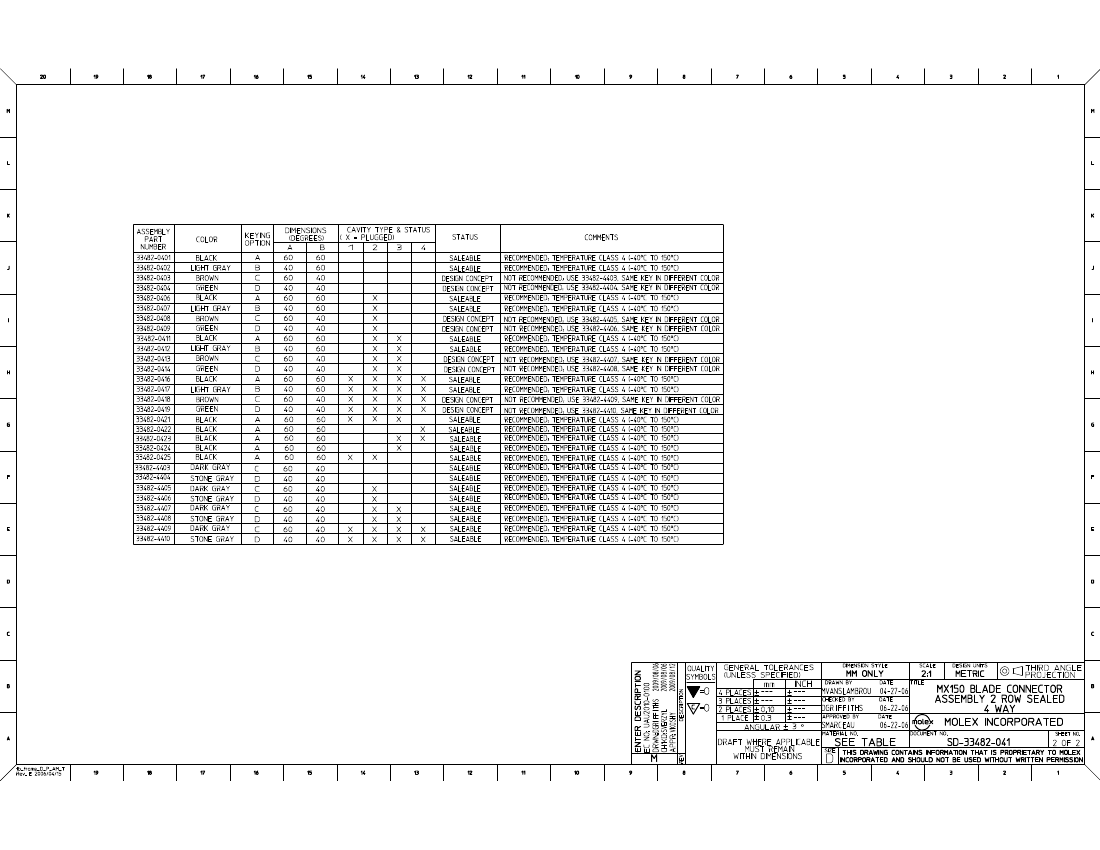

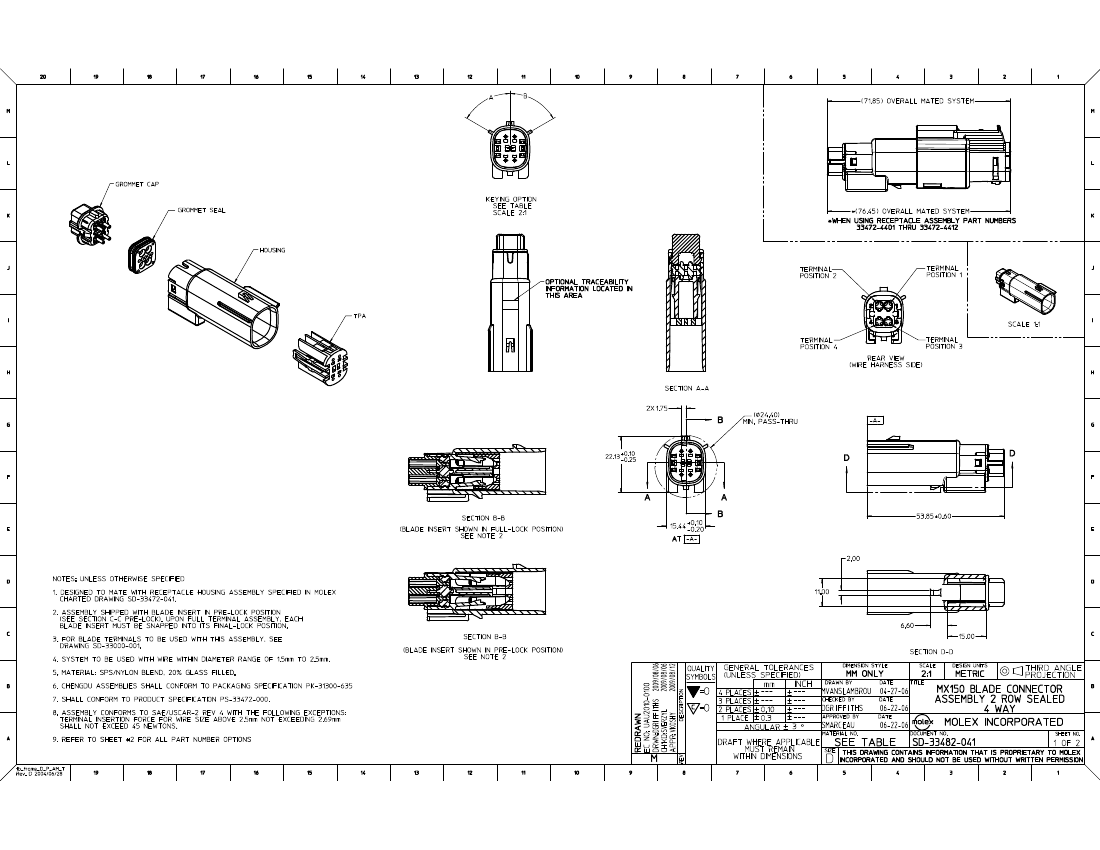

Sales Drawing
AS-33472-100
PK-31300-635
PS-33472-000
SD-33482-041
This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

33482-0403 Related Products

33482-0403 0334820403
Description 4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR 4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, CRIMP
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Reach Compliance Code unknow unknown
ECCN code EAR99 EAR99
Other features POLARIZATION AVAILABLE POLARIZED
Connector type COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO
empty shell NO NO
Filter function NO NO
IEC compliance NO NO
MIL compliance NO NO
Manufacturer's serial number 33482 33482
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO
Installation type CABLE CABLE
Options GENERAL PURPOSE GENERAL PURPOSE
Shell material GLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE POLYSTYRENE
Total number of contacts 4 4
Base Number Matches 1 1
