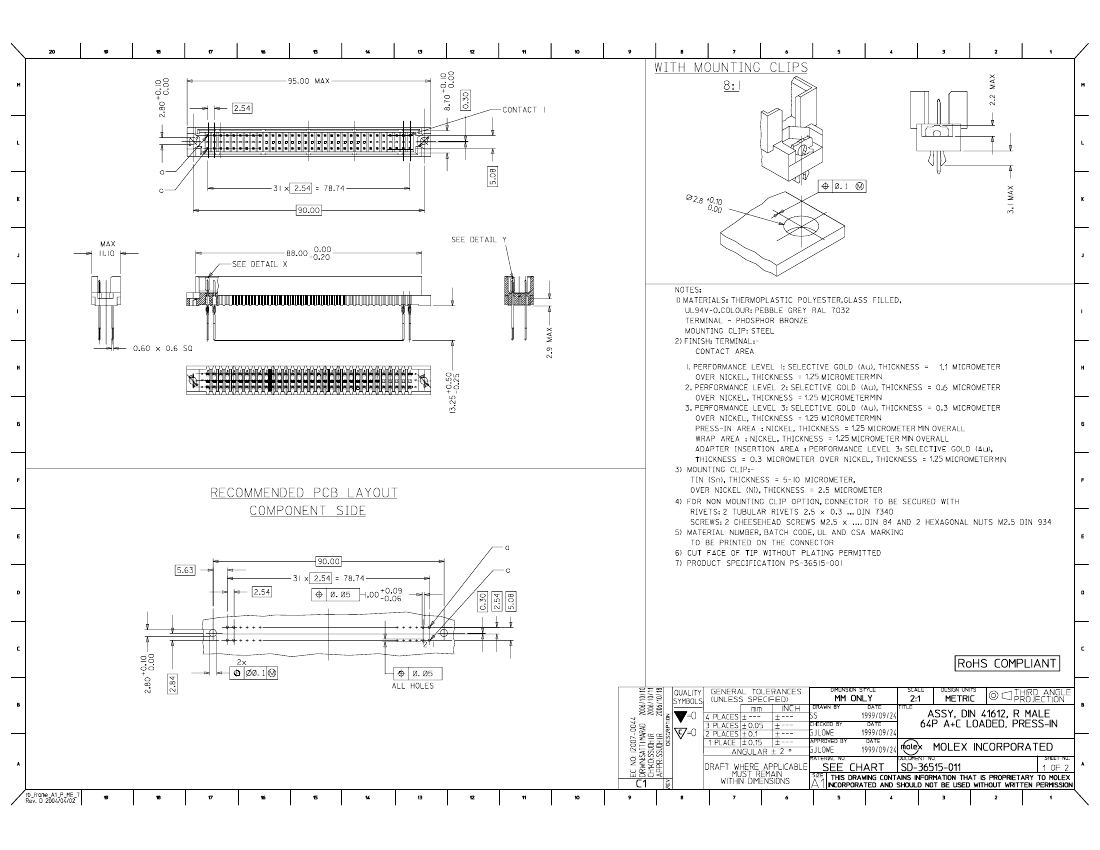

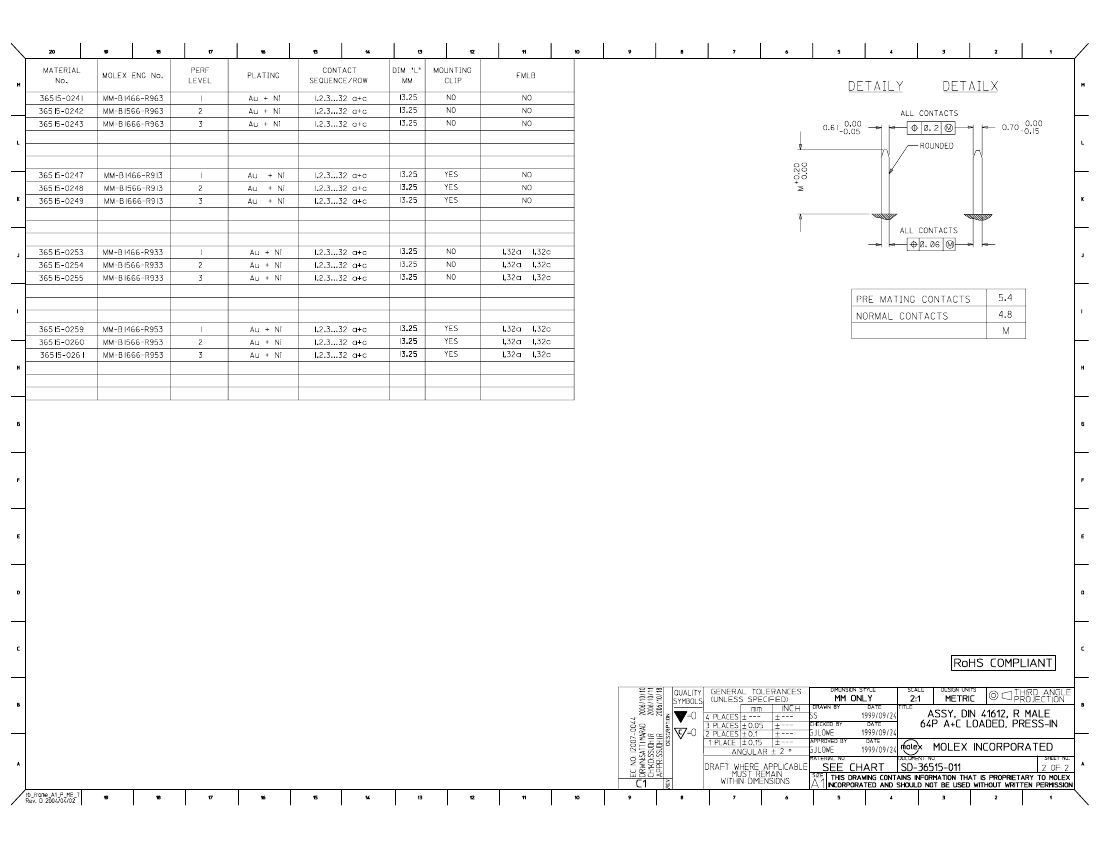

36515-0242: Description64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; Categorysemiconductor Other integrated circuit (IC); File Size194KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

36515-0242 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365150242

Active

din_41612

2.54mm (.100") Pitch DIN 41612 R Style Male Header with Wire-Wrap, Vertical,

Through Hole Press-Fit, 0.60µm (24µ") Selective Gold (Au) Plating, 64 Circuits, without

Mounting Clips, No First-Mate-Last-Break, Soldertail Length 13.25mm(.522"), 1.25µm

(50µ") N

Documents:

Drawing (PDF)

Product Specification PS-36515-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36515

Backplane

No Mounting Clips, Secured with Tubular Rivets/

Cheesehead Screws. No First-Mate-Last-Break

PCB Header

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

36515Series

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

1,2,3,...32; a+c

Gray

400

Yes

Phosphor Bronze

Gold

Nickel

Polyester

Open Pin Field

Vertical

0.522 In

13.25 mm

Yes

0.063 In

1.60 mm

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

1.25

36515-0242 Related Products

	36515-0242	0365150242	MM-B1566-R963
Description	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	2.54mm (.100") pitch din 41612 R style male header with wire-wrap, vertical, through hole press-fit, 0.60??m (24??") selective gold (Au) plating, 64 circuits
