391001103

Description
30 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK
CategoryThe connector
File Size249KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

391001103 Overview

30 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK

391001103 Parametric

Parameter NameAttribute value
Rated current30 A
Rated voltage300 V
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
contact surfaceNOT SPECIFIED
Contact materialsNOT SPECIFIED
Manufacturer Series39100
Fastening methodscrew
Installation typePANEL
Number of layers1
Rows2
Number of channels3
Terminal module typeSTRIP
Wire gauge10 AWG
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0391001103
Active
10.00mm (.394") Pitch Beau™ Eurostyle™ Two-Screw Terminal Strips, 3 Circuits, Low
Profile
Documents:
3D Model

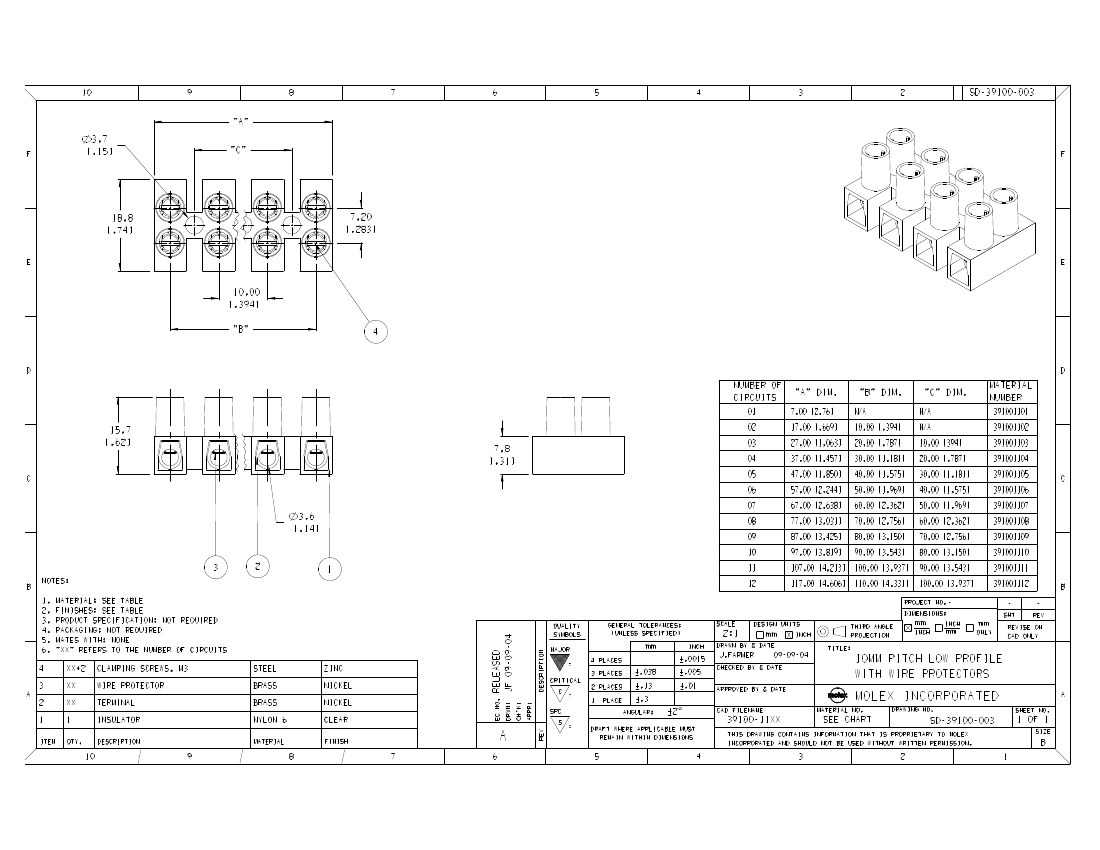

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
25562
E82573
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39100
Wire-to-Wire
One Piece
USA-303
Eurostyle™Two Screw
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
3
Horizontal
94V-2
None
2
Vertical
Yes
Mounting Holes Between Circuit
0.394 In
10.00 mm
0.315 In
8.00 mm
No
No
100°C
10, 12, 14, 16, 18
Search Parts in this Series
39100Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
30A
300V
Material Info
Reference - Drawing Numbers
Sales Drawing
SD-39100-003
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

391001103 Related Products

391001103 391001105
Description 30 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK 10.00mm (.394") pitch beau? eurostyle? two-screw terminal strips, 5 circuits
