394250006

Description
12.00mm
File Size295KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

394250006 Overview

12.00mm

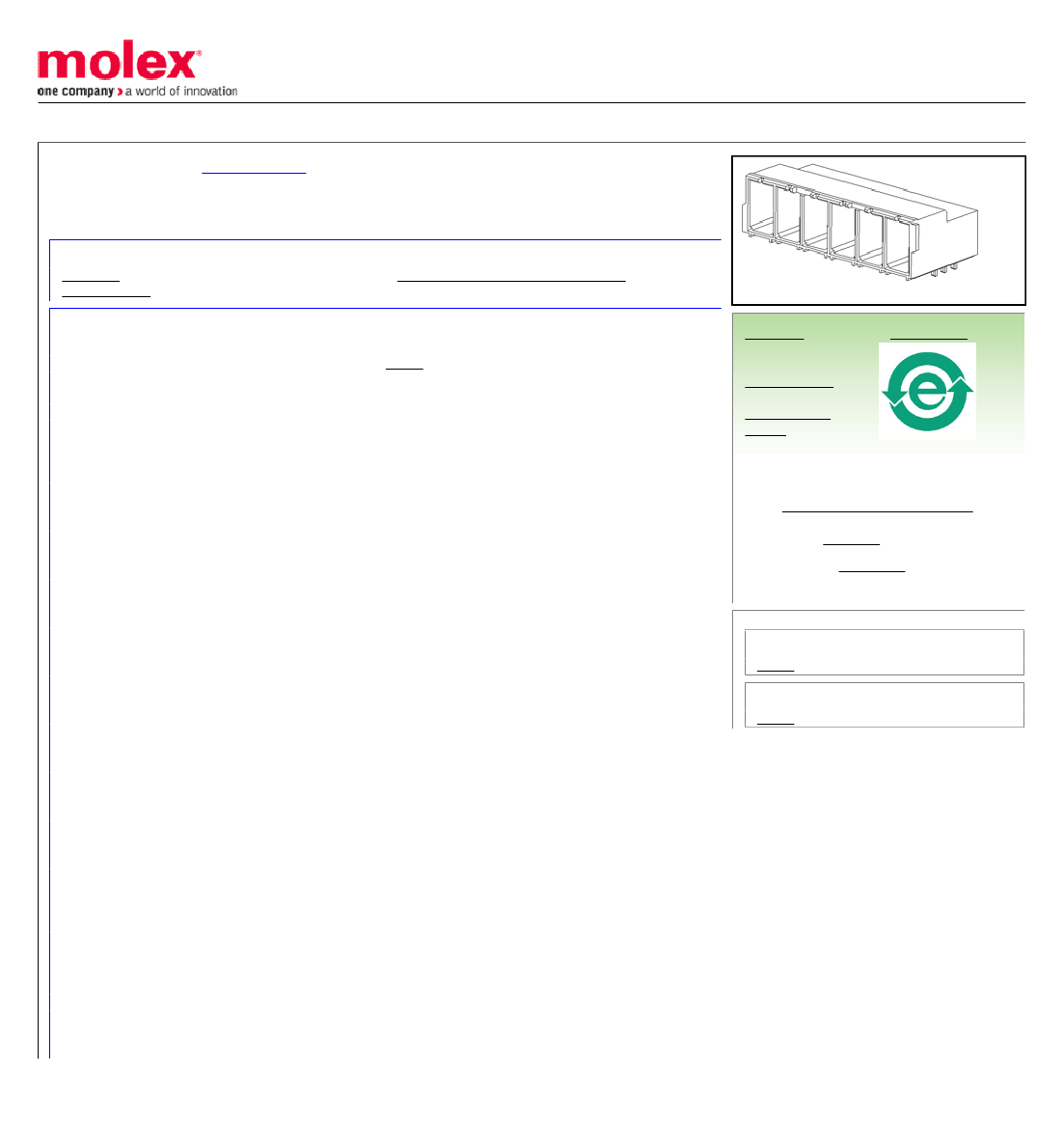

This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0394250006
Active
12.00mm (.472") Pitch Beau™ EuroMax™ Right Angle PCB Header, Closed Ends, 6
Circuits
Documents:
3D Model

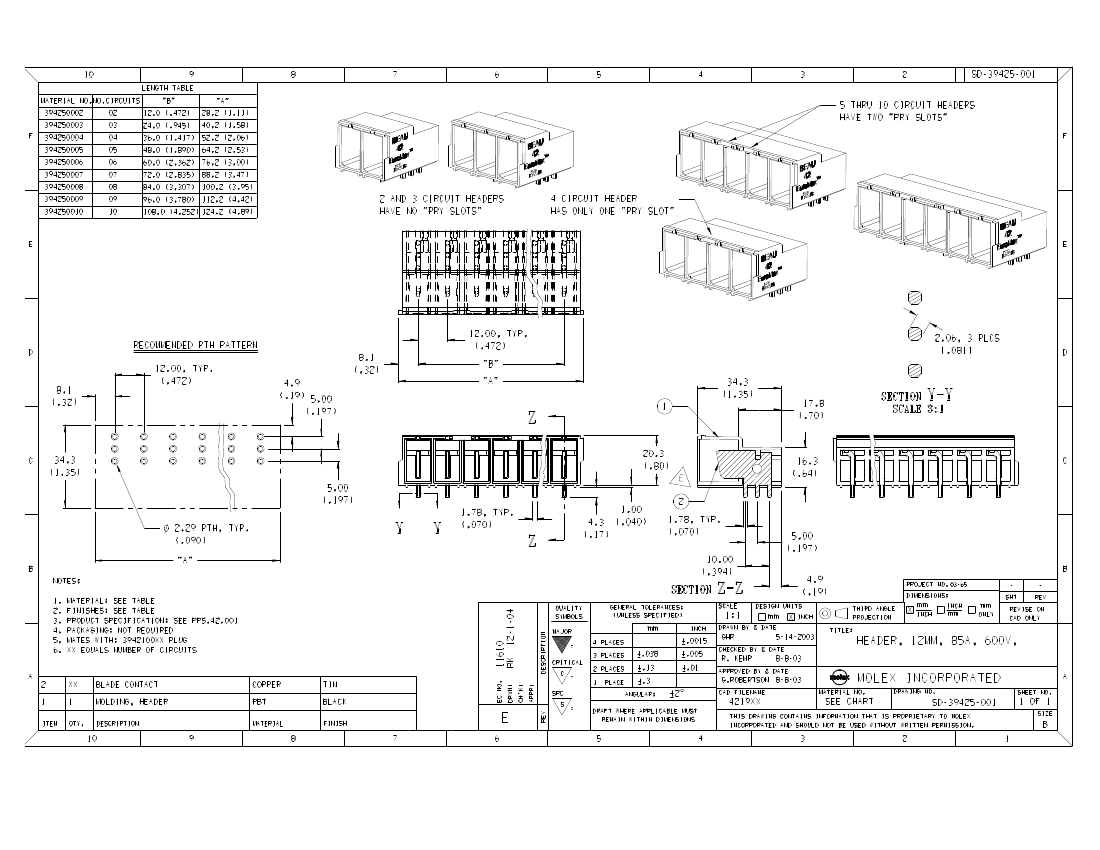

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39425
Wire-to-Board
PCB Header
EuroMax™Pluggable
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
6
Black
N/A
Yes
Tin
Tin
Nylon
1
Right Angle
0.169 In
4.30 mm
None
0.125 In
3.20 mm
No
0.472 In
12.00 mm
150
3.75
150
3.75
Yes
Closed Ends
No
130°C
Through Hole
N/A
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39425Series
Mates With
39421 Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
85A
600V
Material Info
Old Part Number
421906
Reference - Drawing Numbers
Sales Drawing
SD-39425-001
