180-072J06-21-16P datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 180-072J06-21-16P

Preview

180-072J06-21-16P: DescriptionFiber Optic Connector Adapter, Simplex, Plug; CategoryThe connector The connector; File Size173KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-072J06-21-16P Overview

Fiber Optic Connector Adapter, Simplex, Plug

180-072J06-21-16P Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARS: MIL-DTL-3899
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	180
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

Test Probes

and Adapters

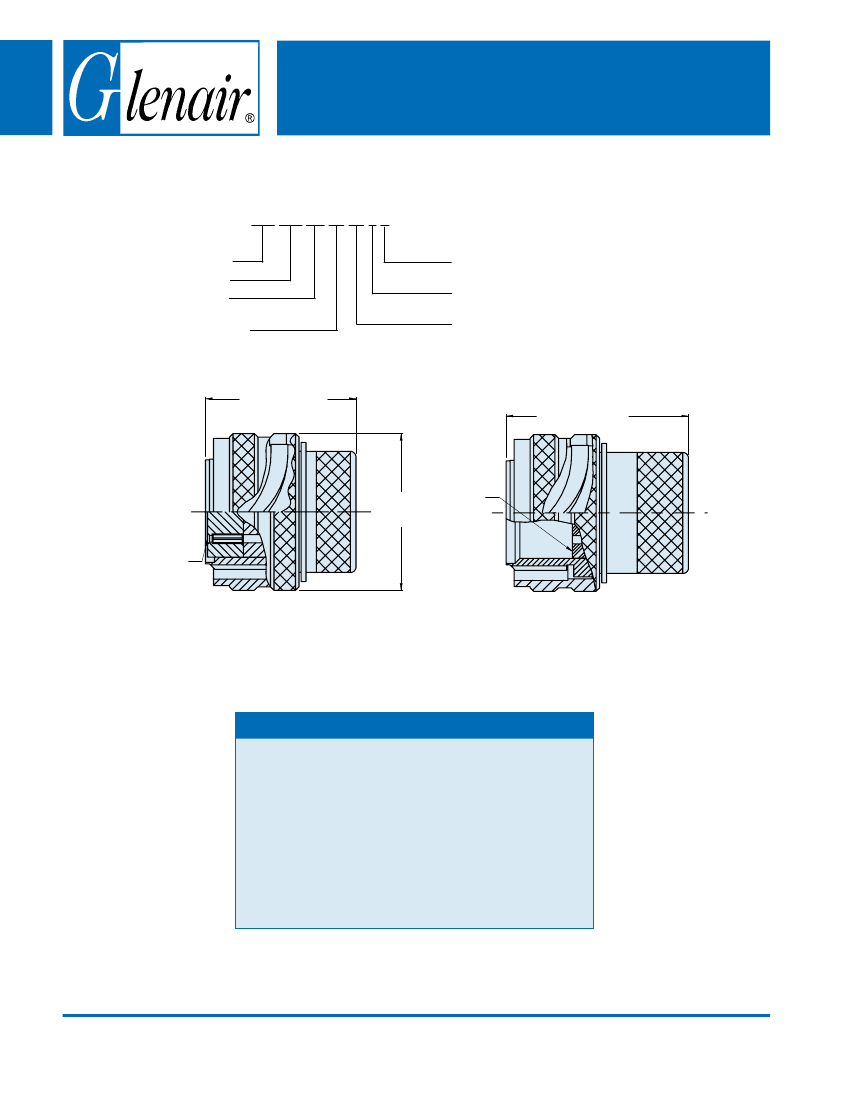

180-072 NF 06-17-8 P

Product Series

Basic Number

Finish Symbol

(See Table II)

06 = Plug Adapter

1.500 (38.1) Max.

A

Dia

Typ.

Socket Insert

180-072 (06 Plug)

Fiber Optic Test Adapter

MIL-DTL-38999 Series I

P = Pin Insert

S = Socket Insert (With Alignment Sleeves)

Insert Arrangement

Per MIL-STD-1560, Table I

Shell Size (Table I)

1.750 (44.5) Max.

Pin Insert

06

PLUG ASSEMBLY

U.S. PATENT NO. 5,960,137

APPLICATION NOTES

1. Assembly identified with manufacturer’s name and P/N,

Space Permitting.

2. For Fiber Optic Test Probe Terminus

See Glenair Drawing 181-006

3. Material/ Finish:

- Barrel/ Shell- Al Alloy/ See Table II

- Insert, Coupling Nut- Hi- Grade Engineering Thermoplastic/ N.A.

- Alignment Sleeve- Zirconia Ceramic/ N.A.

- Retaining Ring- Stainless Steel/ N.A.

- Retaining Clips- Beryllium Copper/ N.A.

- Lock Cap, Lock Nut- Al Alloy/ Black Anodize.

4. Metric dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

L-12
