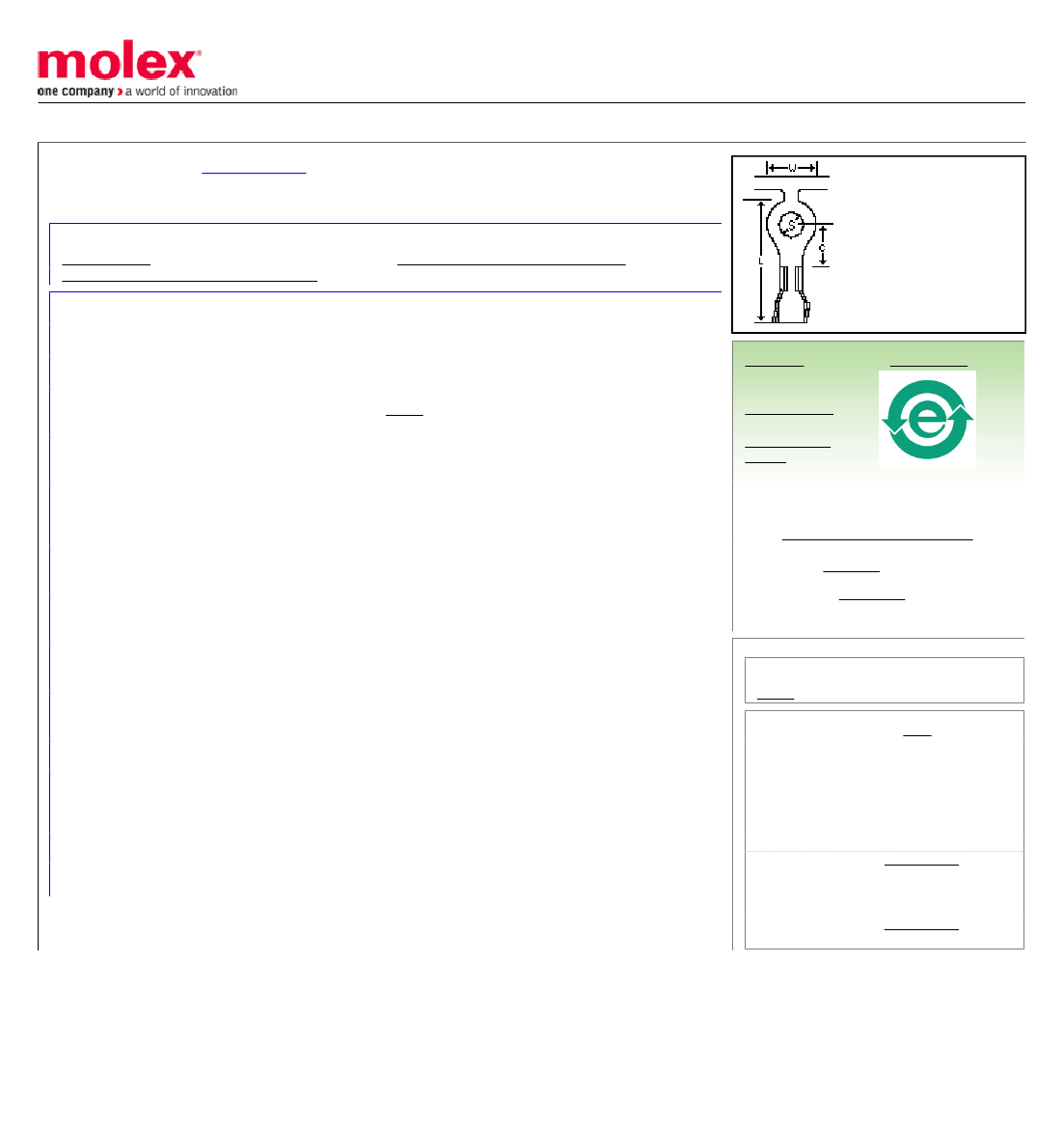

Part Number:
Status:
Description:
0190850006
Active
Open Barrel Ring , Tin-Plated Brass, for 14-18 AWG Wire, Stud Size 10 (M5)
Documents:
Drawing (PDF)
Product Specification PS-19902-006 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19085
Yes
N/A
N/A
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Open
None
Tin
Reel
200
5
200
5
10 (M5)
149°C
Crimp or Compression
N/A
14, 16, 18
0.80 - 2.00
Search Parts in this Series
19085Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
ASP Perishable
0190290053
Tool Kit used in ASP
presses that process
metal strip product
Mini-Mac™
0638815600
Applicator
Electrical
Voltage - Maximum
2000V
Material Info
Old Part Number
RZ-4129-10
Reference - Drawing Numbers
Product Specification

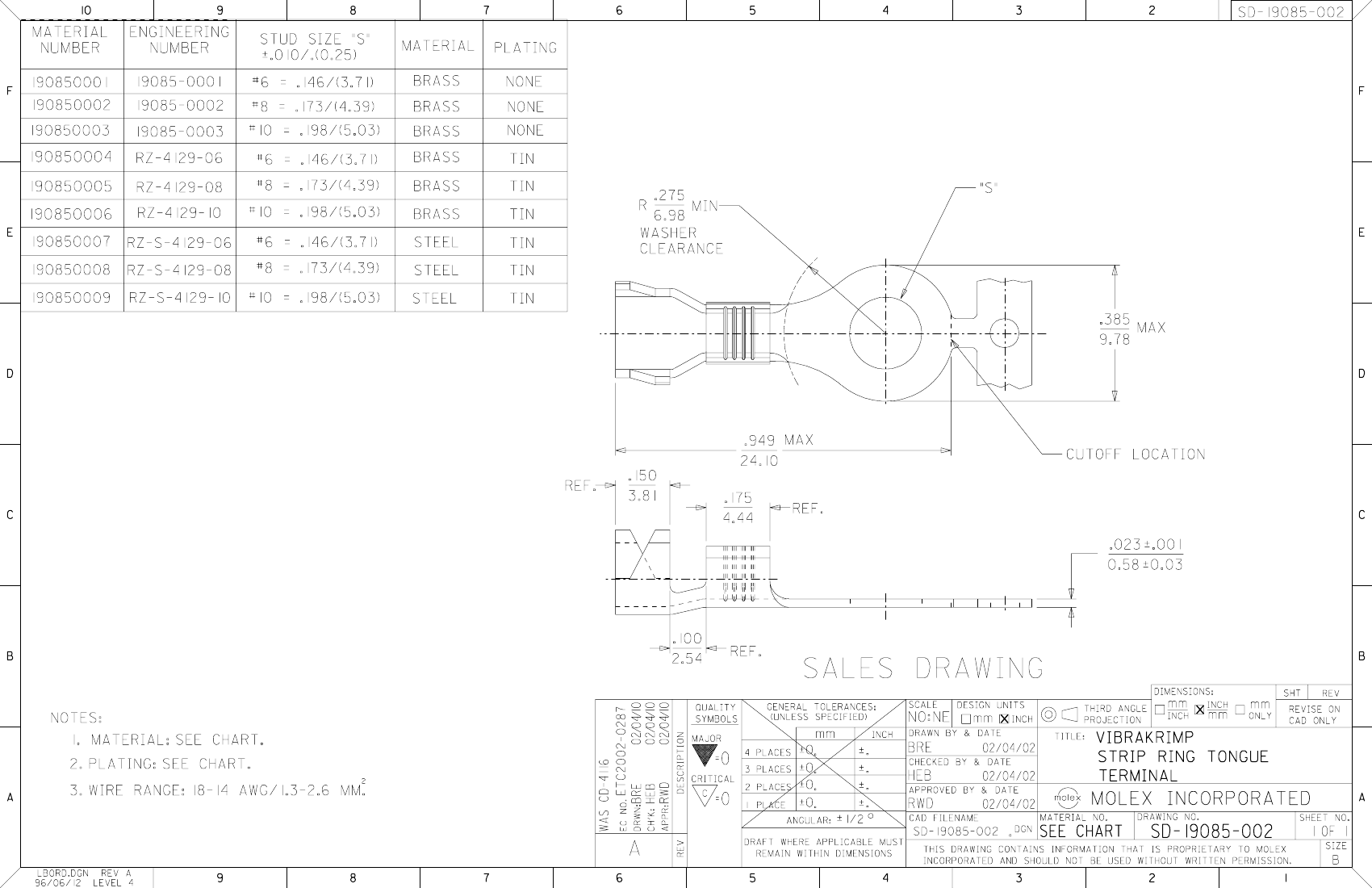

Sales Drawing
PS-19902-006
SD-19085-002
