35979-0220

Description
2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size101KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

35979-0220 Online Shopping

Suppliers Part Number Price MOQ In stock
35979-0220 - - View Buy Now

35979-0220 Overview

2 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

35979-0220 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW PROFILE, POLARIZED
body width0.337 inch
subject depth0.528 inch
body length0.468 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force9.7856 N
Insulation resistance500000000 Ω
Insulator colorWHITE
insulator materialPOLYAMIDE
MIL complianceNO
Manufacturer's serial number35979
Plug contact pitch0.312 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness120u inch
polarization keyHOUSING SIDE
Rated current (signal)7 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.142 inch
Terminal pitch7.92 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0
Evacuation force-minimum value.5838 N
Base Number Matches1
This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

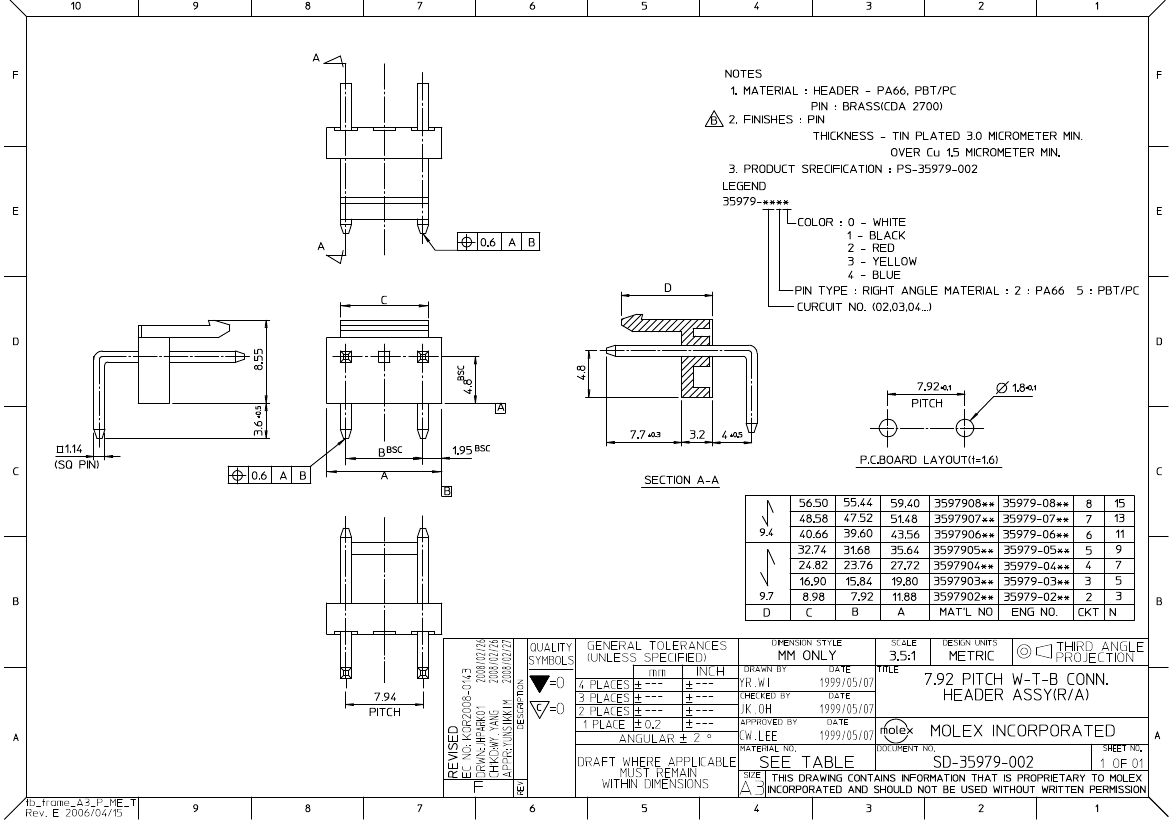

Drawing (PDF)
0359790220
Active
7.92mm (.312") Pitch Wire-to-Board Header, Right Angle, 2 Circuits, Natural, Nylon
Product Specification PS-35979-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72090224
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Application
Product Name
PCB Headers
35979
Wire-to-Board
MV-396™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
30
No
94V-0
No
No
None
Yes
Brass
Tin
Tin
Nylon
1
Right Angle
0.146 In
3.70 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
0.156 In
3.96 mm
No
No
No
Yes
No
-25°C to +85°C
Through Hole
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
35979Series
Mates With
35977 Wire-to-Board Housing
