0365150074
Active
din_41612
2.54mm (0.100") Pitch DIN 41612 Header, Style R, Vertical, Press-fit, 6.00mm (.236")
PC Tail Length, 96 Circuits, 0.76µm (30µ") Gold (Au) Selective, Lead-Free
Documents:

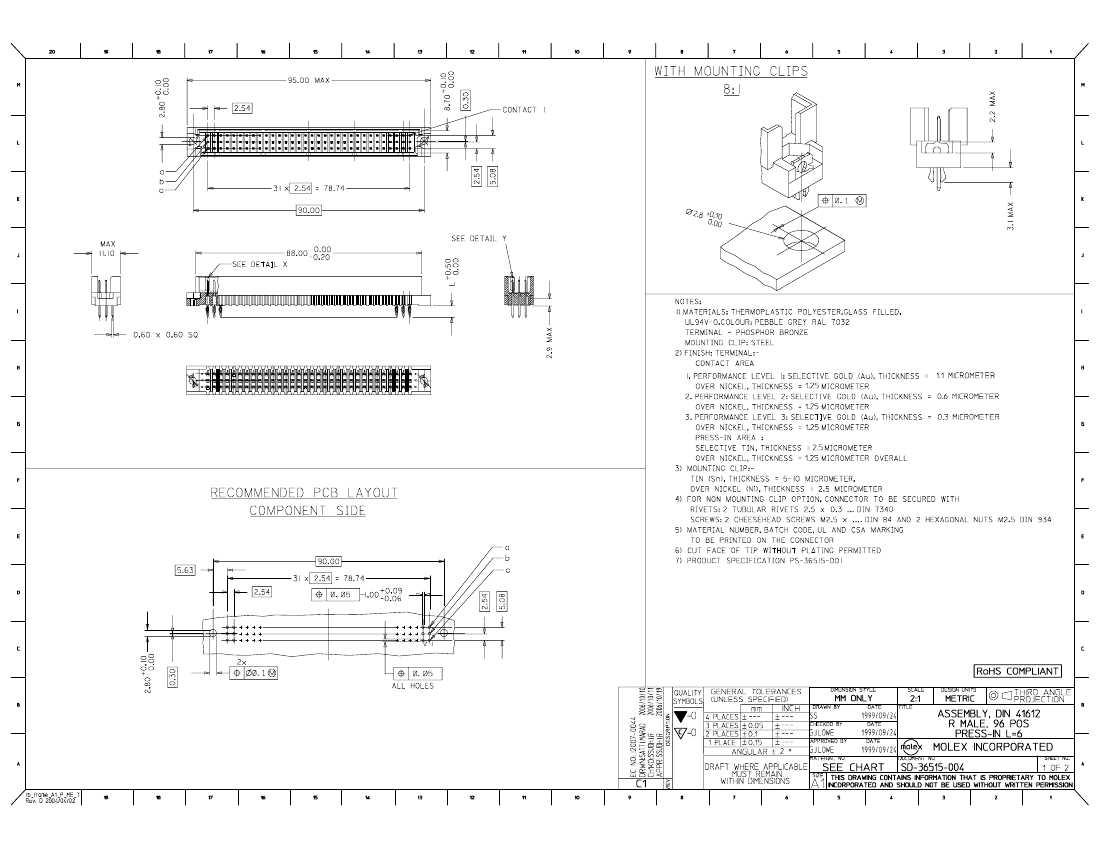

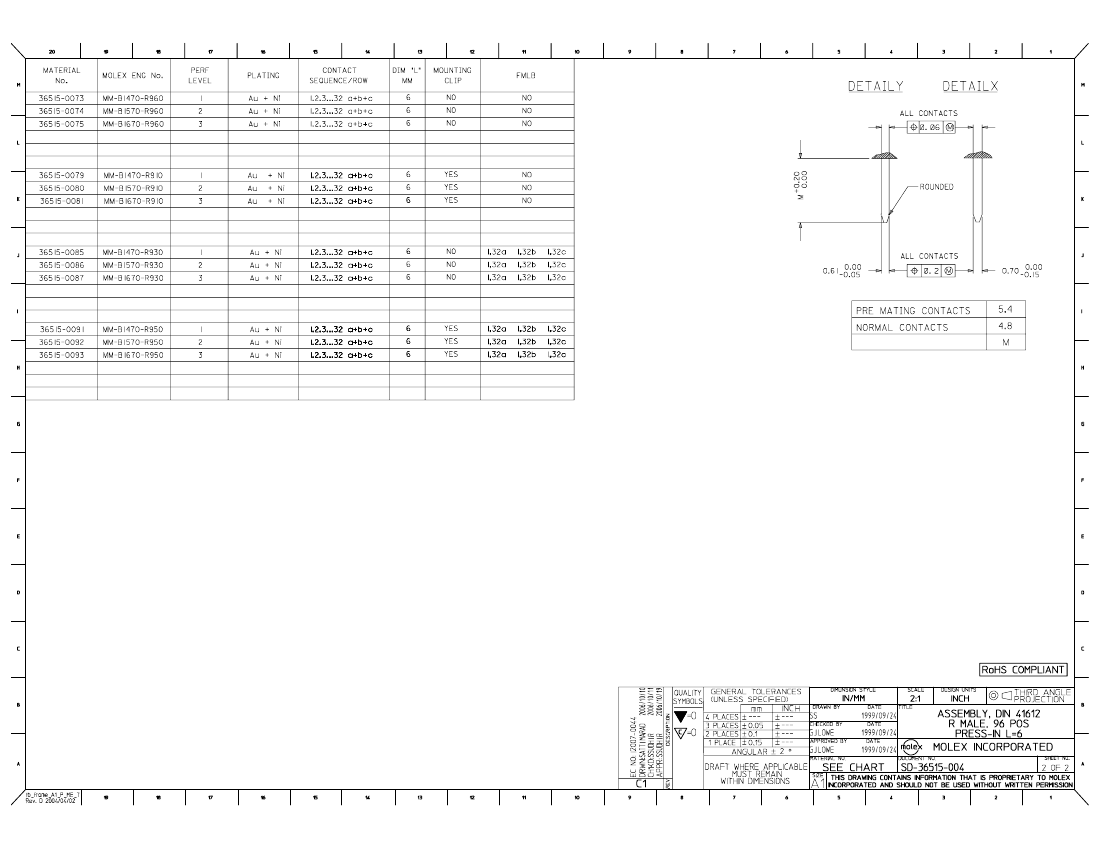

Drawing (PDF)
Product Specification PS-36515-001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
36515
Backplane
"R" at Style Represents Vertical Male DIN Connectors
PCB Header
din_41612
IEC 603-2/DIN 41612
R
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
Keying to Mating Part
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
96
96
Rows A, B, & C
400
Yes
32
Open Pin Field
3
Vertical
0.236 In
6.00 mm
No
Yes
0.045 In, 0.157 In
1.20 mm, 4.00 mm
Bag
0.100 In
2.54 mm
0.100 In
2.54 mm
No
-55°C to +125°C
Through Hole - Compliant Pin
Search Parts in this Series
36515Series
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
1A
622.0 Mbps
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-36515-001
SD-36515-004
