36515-0488 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36515-0488

36515-0488: Description64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size173KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

36515-0488 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

36515-0488 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.437 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24)
Contact completed and terminated	NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	36515
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.522 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365150488

Active

din_41612

2.54mm (.100") Pitch DIN 41612 R Style Male Header with Wire-Wrap, Vertical,

Through Hole Press-Fit, 0.60µm (24µ") Selective Gold (Au) Plating, 64 Circuits,

without Mounting Clips, First-Mate-Last-Break at a1,a32;c1,c32, Soldertail Length

13.25mm(.522"), L

Documents:

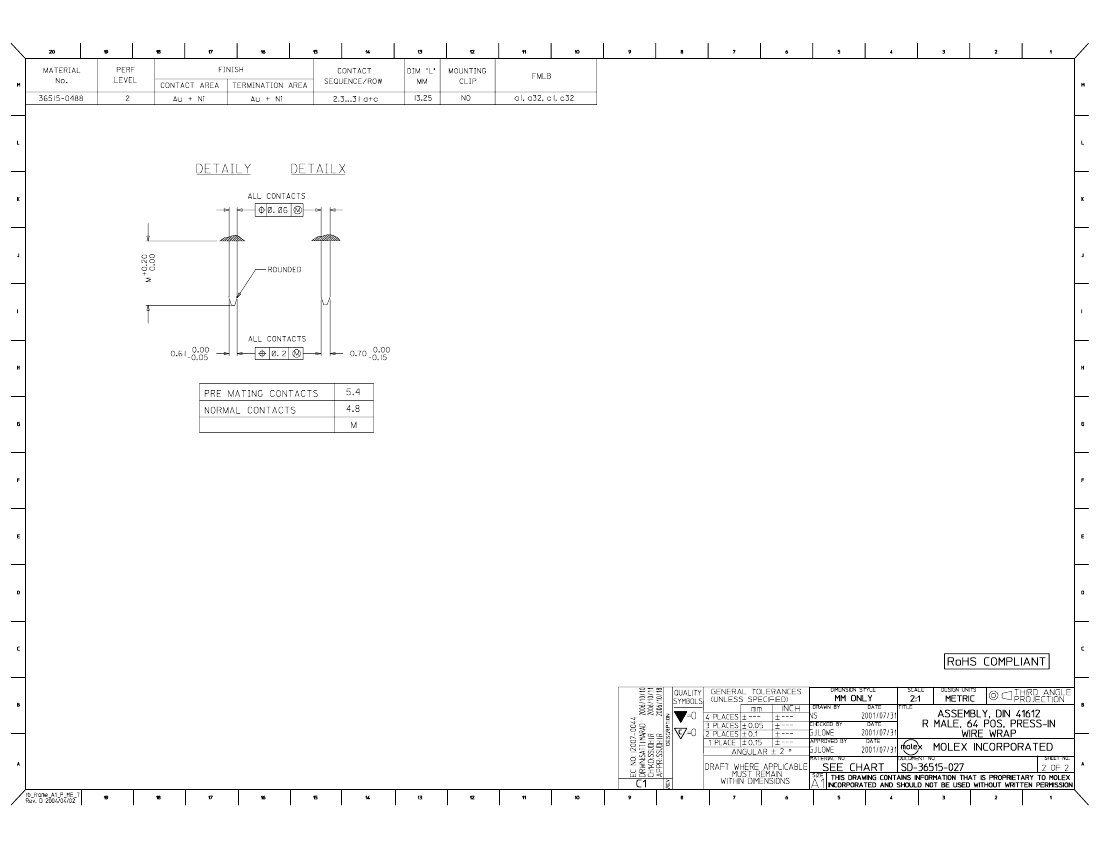

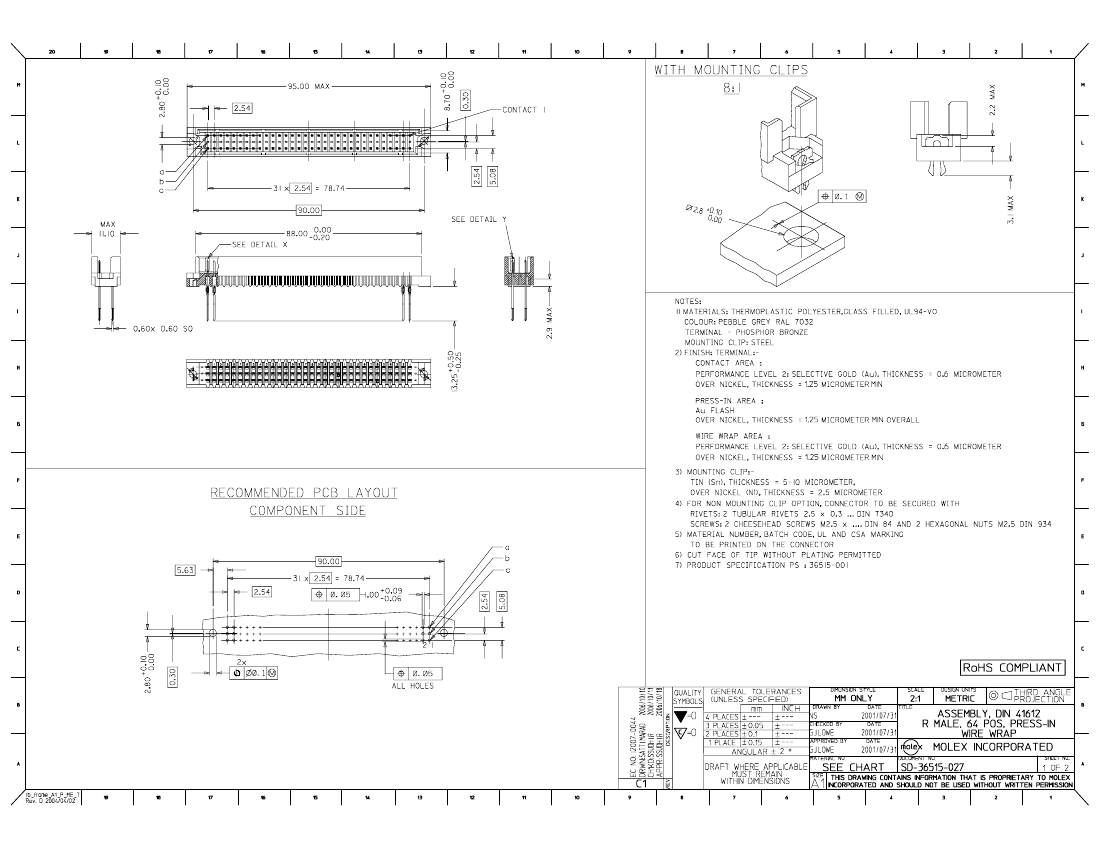

Drawing (PDF)

Product Specification PS-36515-001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Backplane Connectors

36515

Backplane

No Mounting Clips, Secured with Tubular Rivets/

Cheesehead Screws. First-Mate-Last-Break Positions

at: a1, a32; c1, c32

PCB Header

din_41612

IEC 603-2/DIN 41612

Component Type

Overview

Product Name

Style

Search Parts in this Series

36515Series

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

1,2,3,...32; a+c

Gray

400

Yes

Phosphor Bronze

Gold

Nickel

Polyester

Open Pin Field

Vertical

0.522 In

13.25 mm

Yes

0.063 In

1.60 mm

Carton

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

1.25

36515-0488 Related Products

	36515-0488	0365150488
Description	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT	64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
Other features	STANDARD: DIN 41612	PANEL MOUNTABLE, POLARIZED, STANDARDS: DIN 41612, IEC 603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24)	GOLD (24)
Contact completed and terminated	NICKEL (50)	NICKEL (50)
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	YES
MIL compliance	NO	NO
Manufacturer's serial number	36515	36515
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	WIRE WRAP	PRESS FIT
Total number of contacts	64	64
Base Number Matches	1	1
