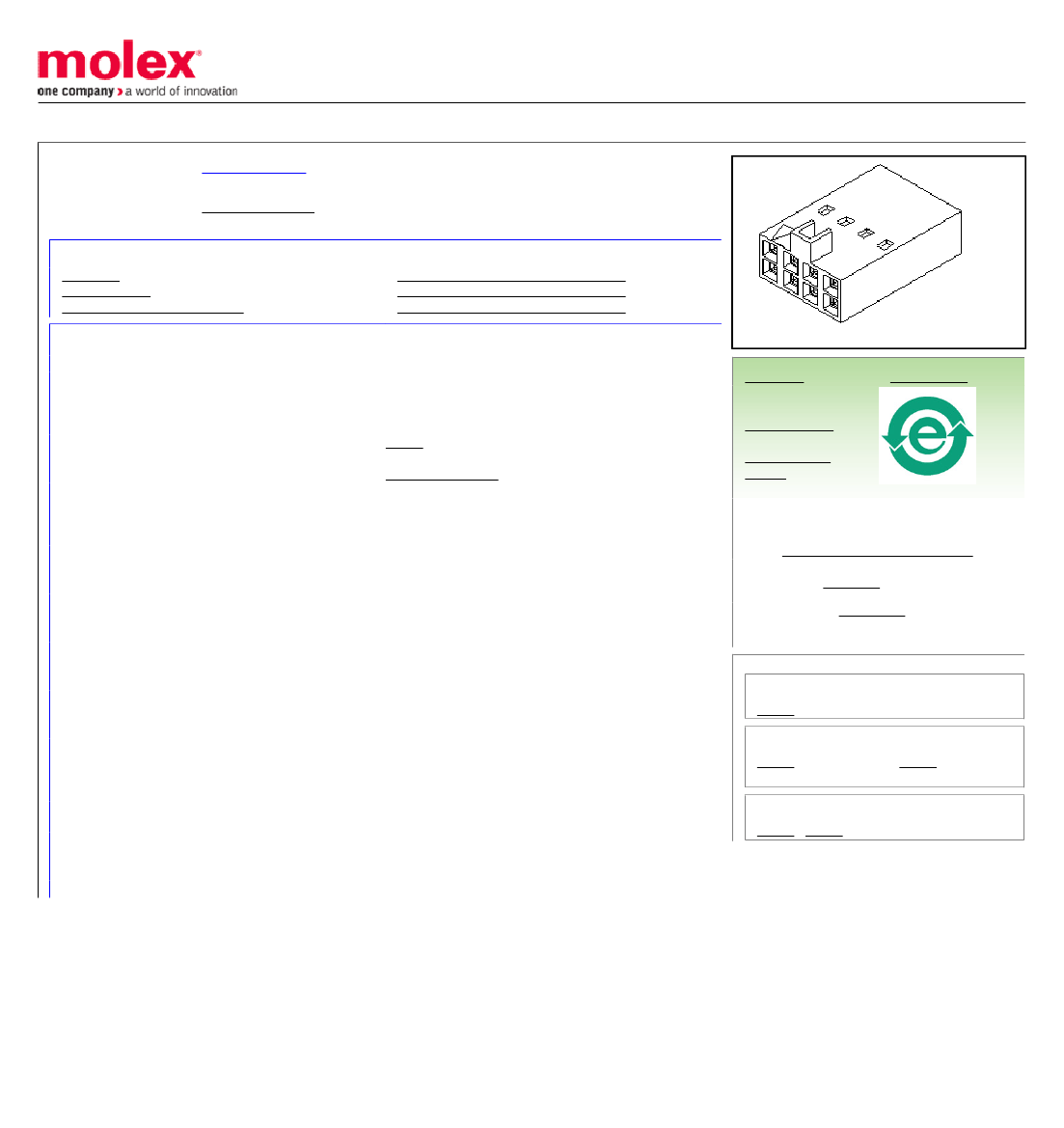

This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0022552202
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Crimp Housing, Dual Row, Version B, Polarized, 20 Circuits
Documents:
3D Model
Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-70058 (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
70450
Version B
cgrid__sl_products
SL™
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
No
20
Black
94V-0
Female
No
Polyester
2
Bag
No
0.100 In
2.54 mm
No
-40°C to +105°C
Search Parts in this Series
70450Series
Mates With
70246 Straight Header, 70247 Right Angle
Header, 87256, 87257
Use With
70058 , 71851
Material Info
Old Part Number
70450-0058
Reference - Drawing Numbers
Packaging Specification
Product Specification

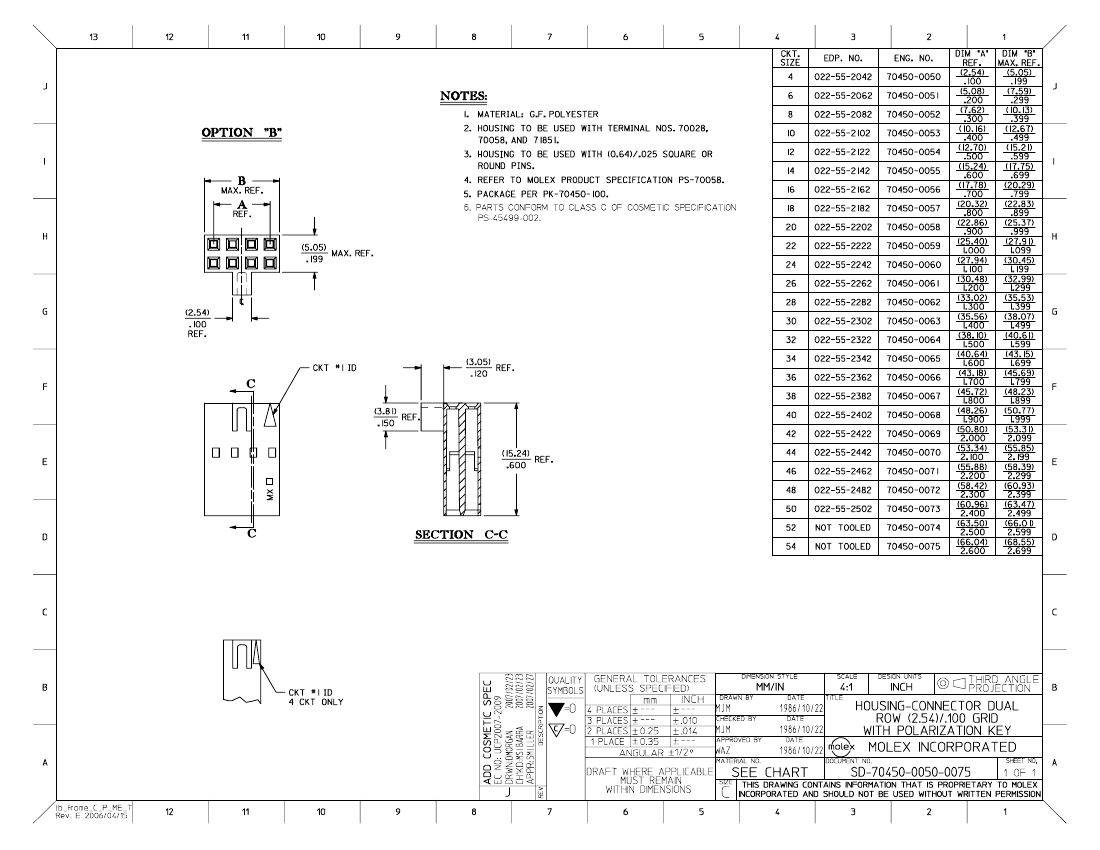

Sales Drawing
Test Summary
PK-70450-100
PS-70058, PS-70400
SD-70450-0050-0075
TS-70058-001
