Part Number:
Status:
Description:
0039534600
Active
2.54mm (.100") Pitch QF-50™ Receptacle, Vertical, Dual Row, Preloaded Upper
Housing, 0.76µm Gold Contact Plating, 60 Circuits
Documents:

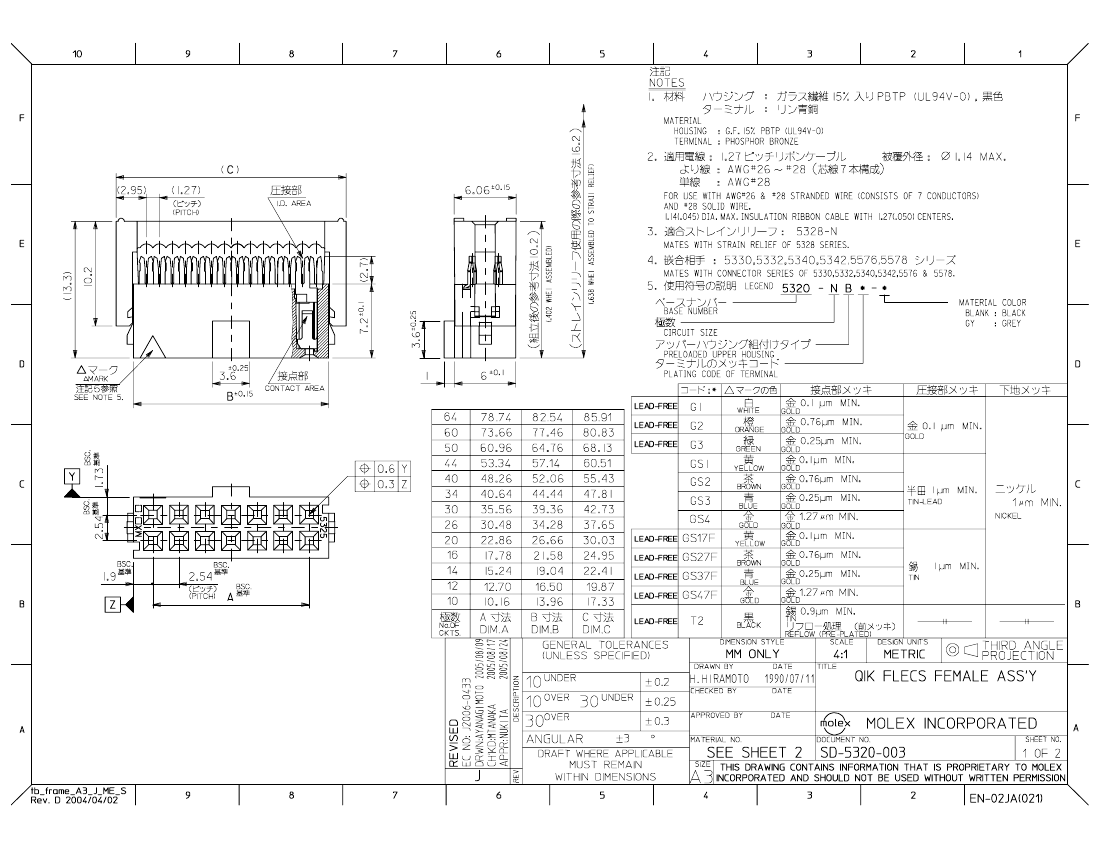

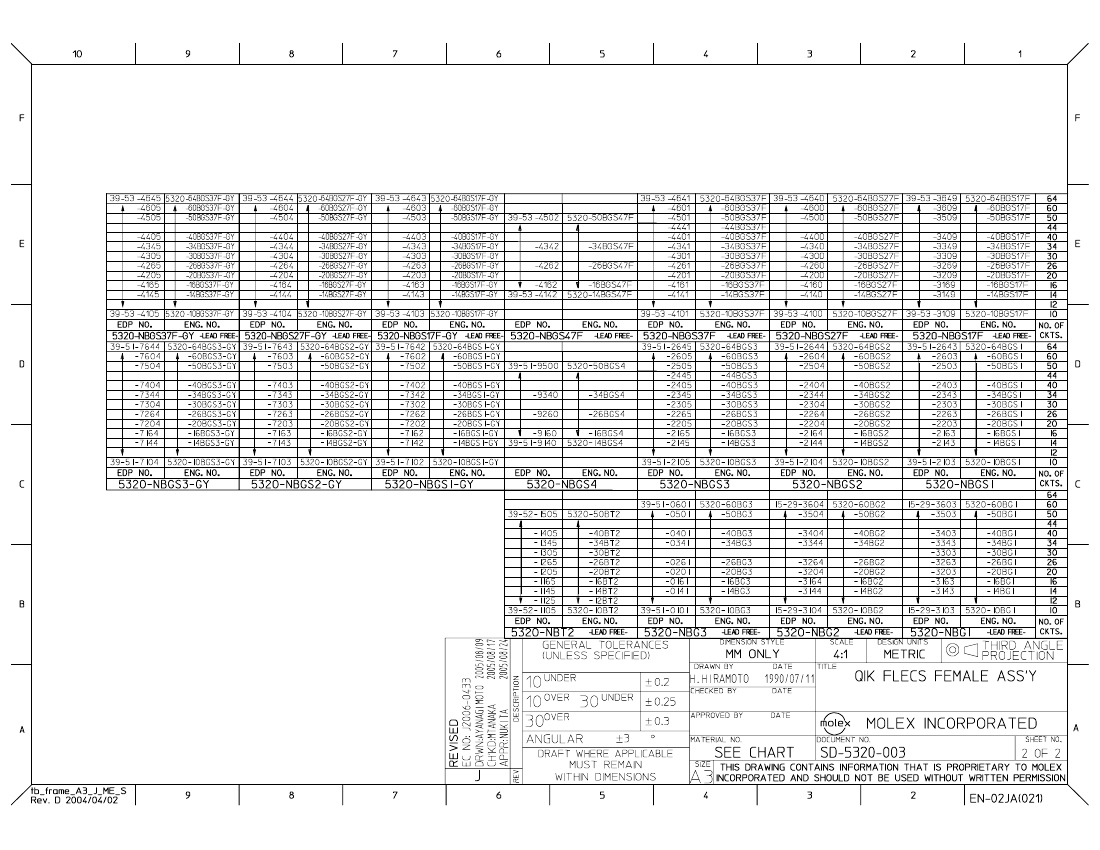

Drawing (PDF)
Product Specification PS-5320-008 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
5320
Preloaded Upper Housing
Housing
No
QF-50™
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
60
Black
500
Vertical
94V-0
Yes
Phosphor Bronze
Gold
Tin
2
No
None
Tray
0.050 In
1.27 mm
0.100 In
2.54 mm
0.030
0.76
Yes
No
-40°C to +105°C
1.14mm (.045") max.
26, 28
Ribbon Cable
Search Parts in this Series
5320Series
Mates With
5330 , 5340 , 5332 , 5342 , 5576 , 5578
Use With
5328 Strain Relief
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
500V AC
Material Info
Old Part Number
5320-60BGS27F
Reference - Drawing Numbers
Product Specification
PS-5320-008
