398800302 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 398800302

398800302: DescriptionSTRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size159KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

398800302 Overview

STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

398800302 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Fastening method	SCREW
Manufacturer's serial number	39880
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

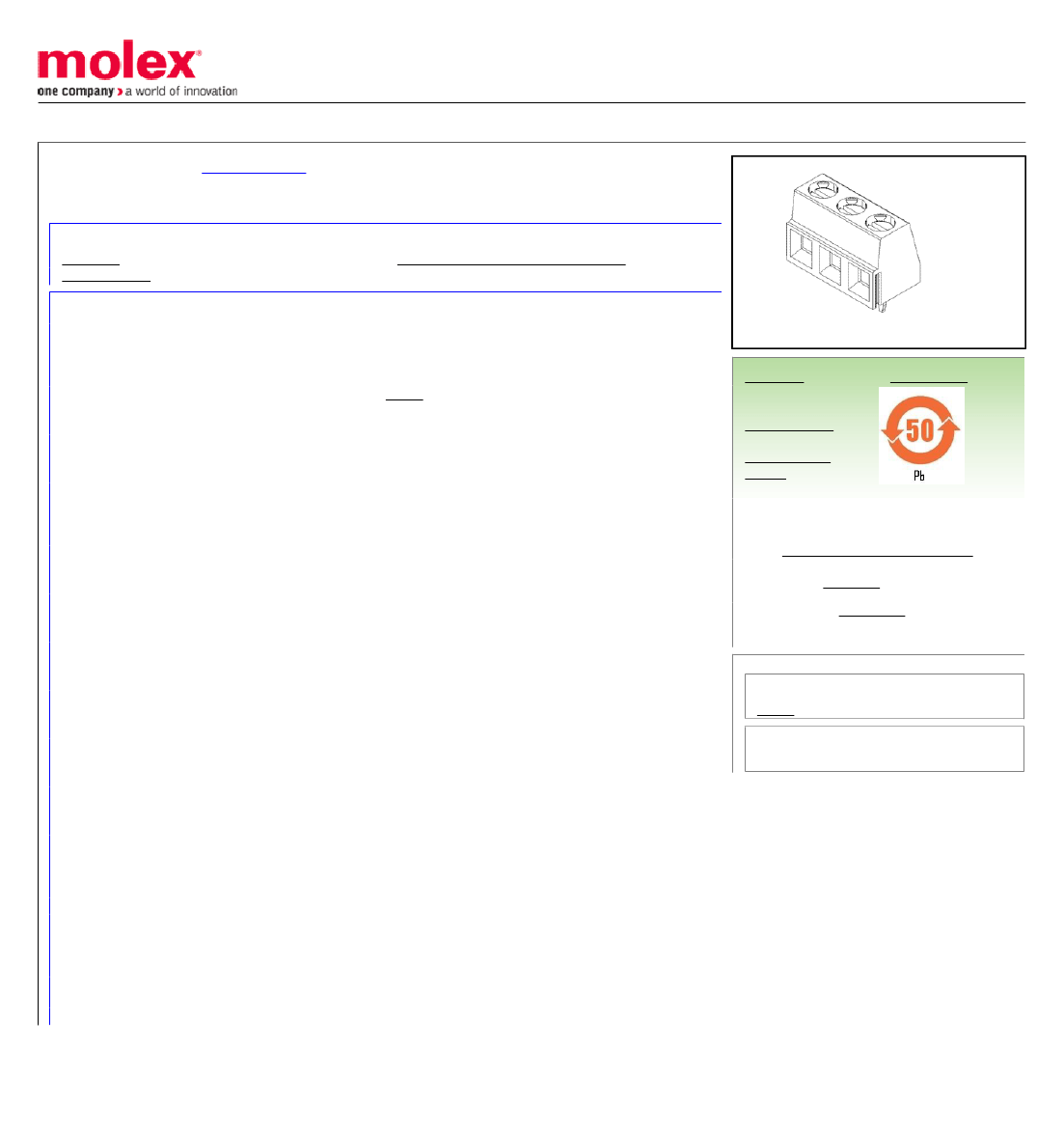

This document was generated on 04/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

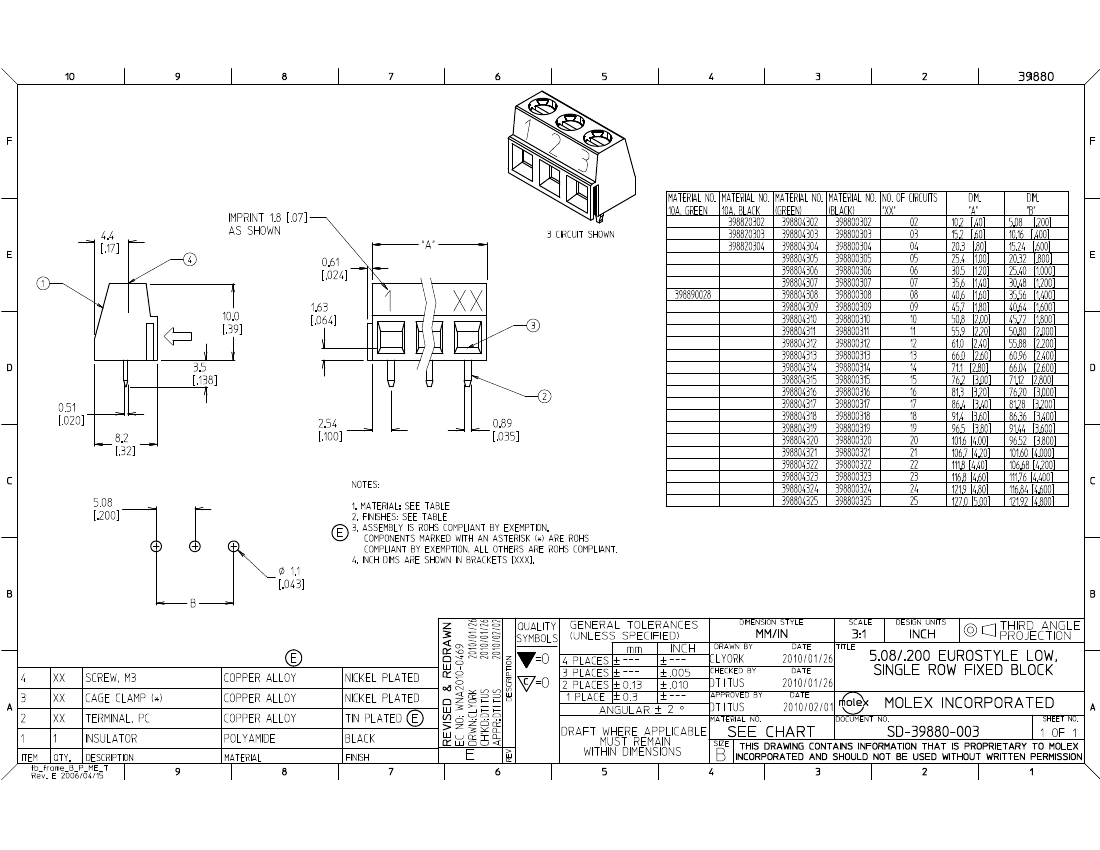

Drawing (PDF)

0398800302

Active

5.08mm(.200") Pitch, Beau™ Eurostyle™ Low Profile, Fixed Block, Modular, 2 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

image - Reference only

Series

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39880

Wire-to-Board

One Piece

USA-260

Eurostyle™Fixed Mount

Euro Block

EU RoHS

China RoHS

RoHS Compliant by

Exemption

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

94V-0

None

Vertical

0.138 In

3.50 mm

None

0.093 In

2.40 mm

0.200 In

5.08 mm

0.200 In

5.08 mm

N/A

Fully

Yes

105°C

16, 18, 20, 22, 24, 26, 28, 30

0.20 - 1.50

Search Parts in this Series

39880Series

Mates With

N/A

Electrical

Current - Maximum per Contact

Voltage - Maximum

13.5A

300V

Material Info

Old Part Number

880102

Reference - Drawing Numbers

Sales Drawing

SD-39880-003

This document was generated on 04/26/2010

398800302 Related Products

	398800302	398800303
Description	STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	5.08mm(.200") pitch, beau? eurostyle? low profile, fixed block, modular, 3 circuits
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli
ECCN code	EAR99	EAR99
Fastening method	SCREW	SCREW
Installation type	BOARD	BOARD
Number of layers	1	1
Rows	1	1
Number of channels	2	3
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
Base Number Matches	1	1
