399100309 Overview

10.16mm

399100309 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Other featuresVALOX 420SEO; PBT
Fastening methodSCREW
Installation typeBOARD
Number of layers1
Rows1
Number of channels9
Rated current40 A
Rated voltage600 V
safety certificateUL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Conductor cross section6 mm2
Wire gauge8 AWG
Base Number Matches1
This document was generated on 04/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399100309
Active
10.16mm (.400") Beau™ Eurostyle™, Fixed Mount PCB Terminal Block, High Voltage,
High Power 40A, 9 Circuits
Documents:
3D Model

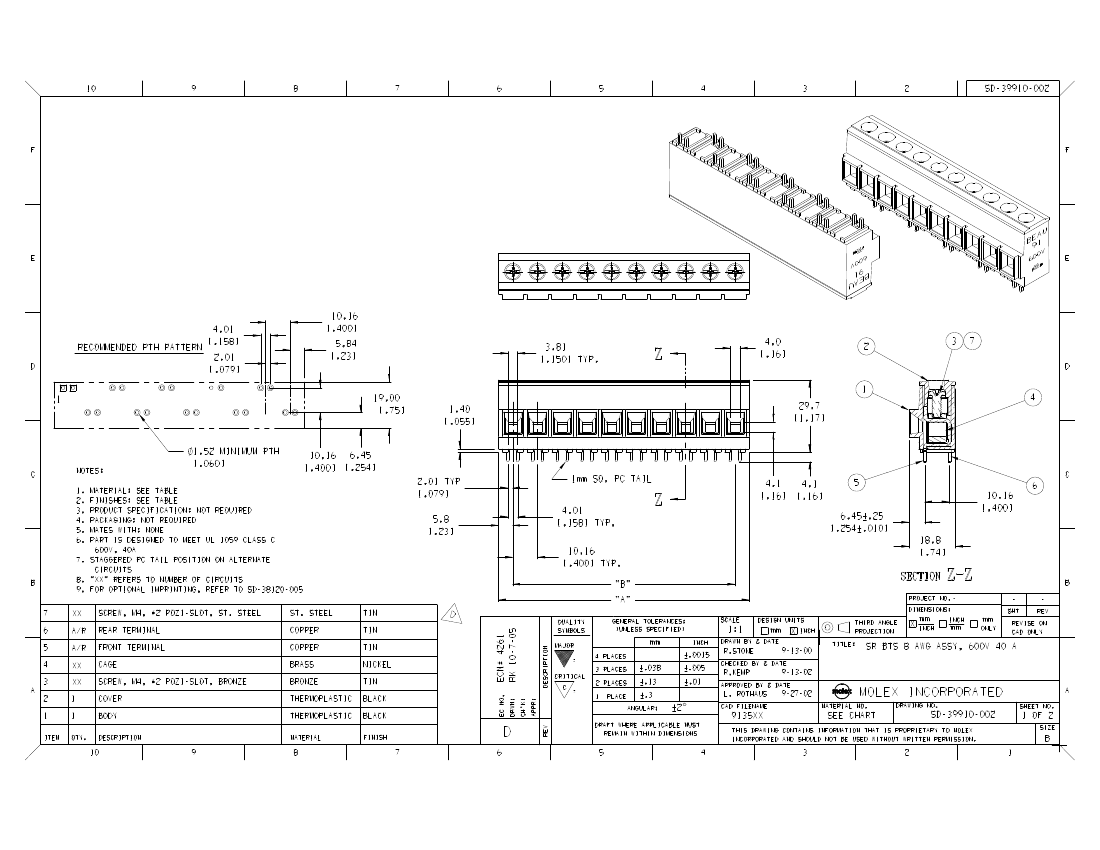

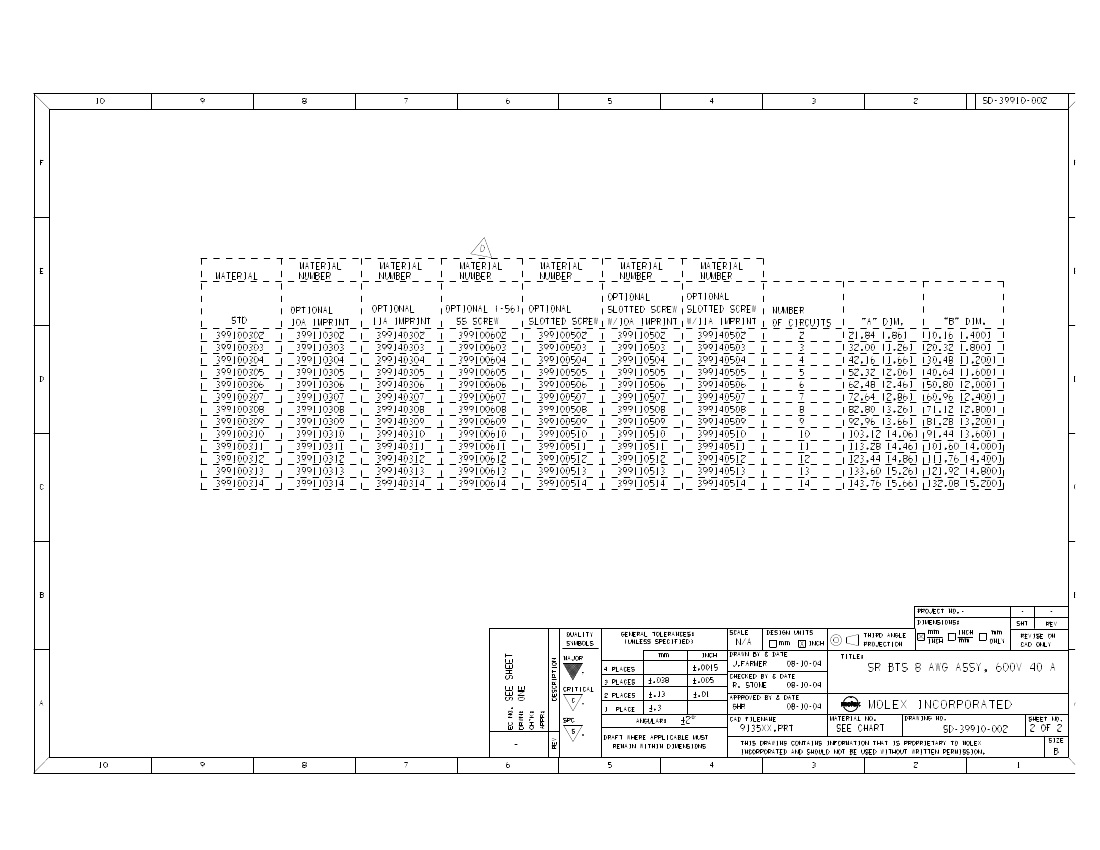

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39910
Wire-to-Board
One Piece
USA-199
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
9
9
Black
Horizontal
94V-0
None
Copper
Tin
Tin
Polyester
1
Vertical
0.160 In
4.10 mm
None
No
0.400 In
10.16 mm
0.400 In
10.16 mm
150
3.75
150
3.75
Yes
Fully
No
No
130°C
Through Hole
10, 12, 14, 16, 18, 8
0.75 - 6.0
Search Parts in this Series
39910Series
Mates With
N/A
Electrical
