399700102 Overview

60 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

399700102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399700102

Active

10.16mm (.400") Beau™ Eurostyle™ Fixed Mount PCB Terminal Block, High Power

60A, 2 Circuits

Documents:

3D Model

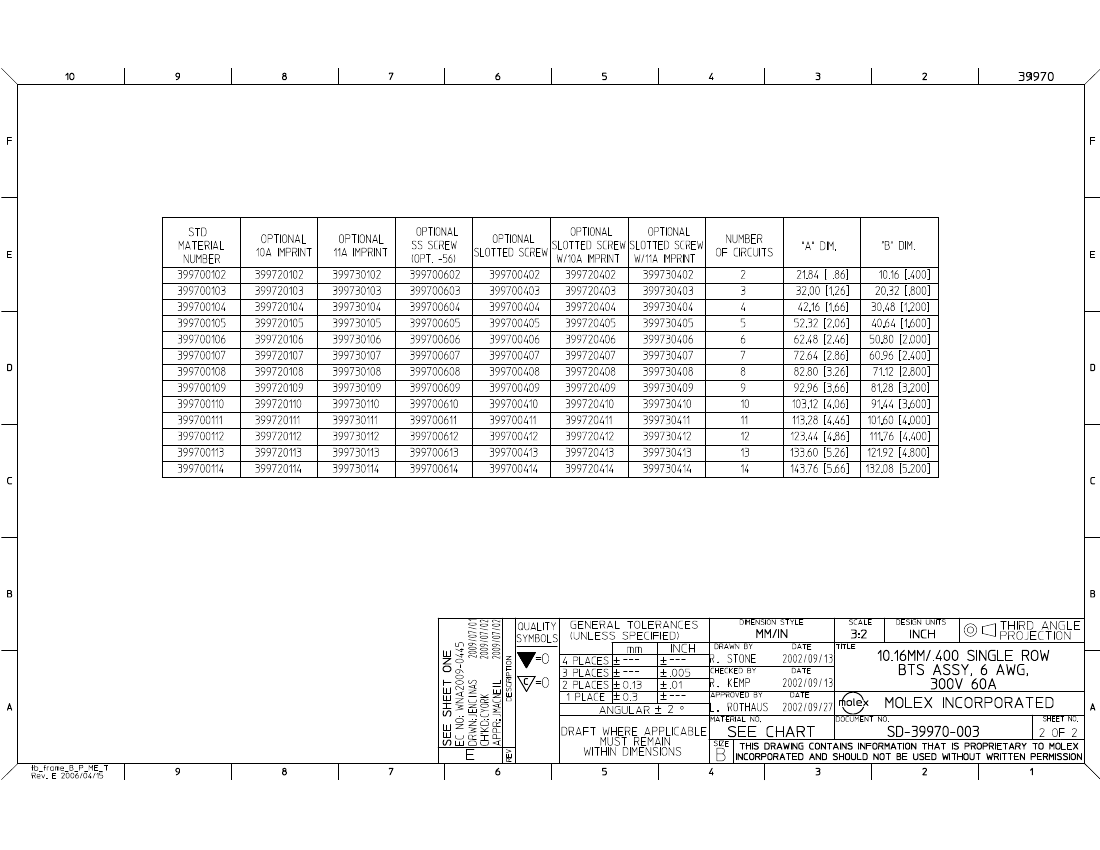

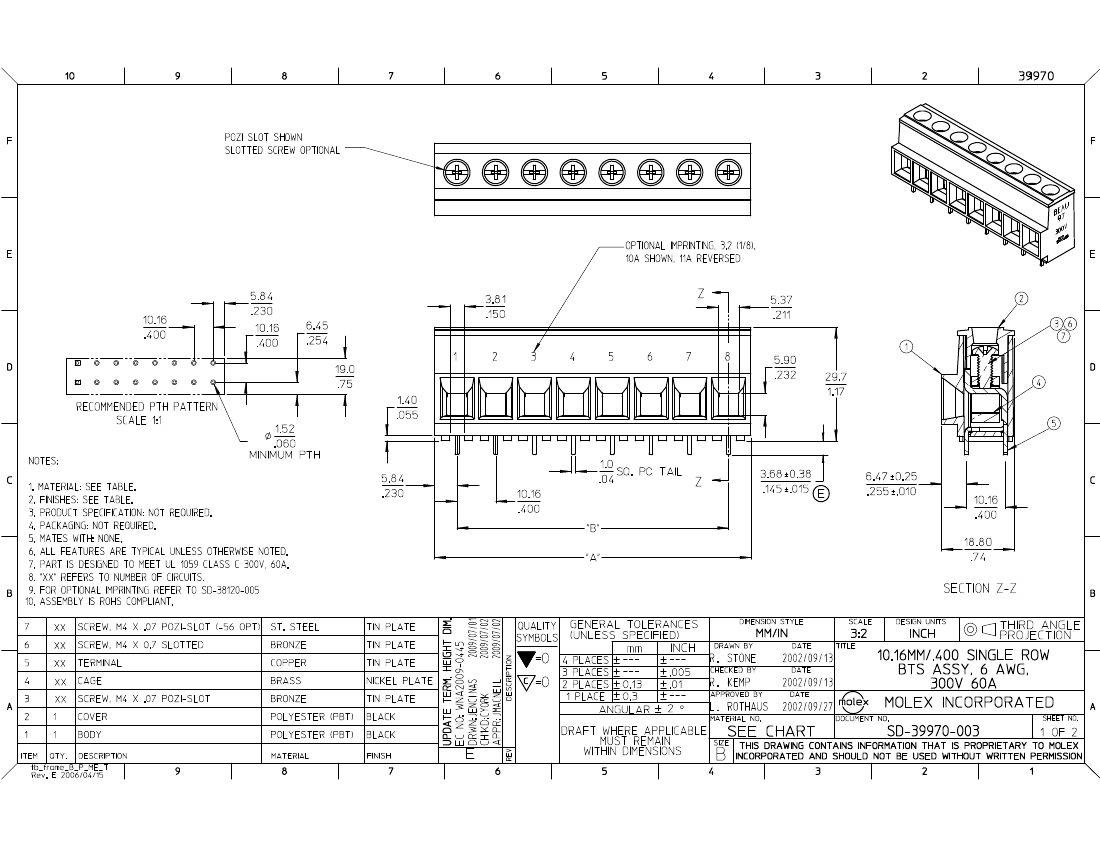

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

MolexKits

Product Name

Type

Terminal Blocks

39970

Wire-to-Board

One Piece

Yes

Eurostyle™Fixed Mount

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Horizontal

94V-0

None

Brass, Copper

Tin

Vertical

0.160 In

4.06 mm

None

0.400 In

10.16 mm

0.400 In

10.16 mm

150

3.8

150

3.8

N/A

Fully

130°C

Through Hole

10, 12, 14, 16, 18, 8

0.75 - 10.0

Search Parts in this Series

39970Series

Mates With

N/A

Electrical

Current - Maximum per Contact

Voltage - Maximum

60A

300V
