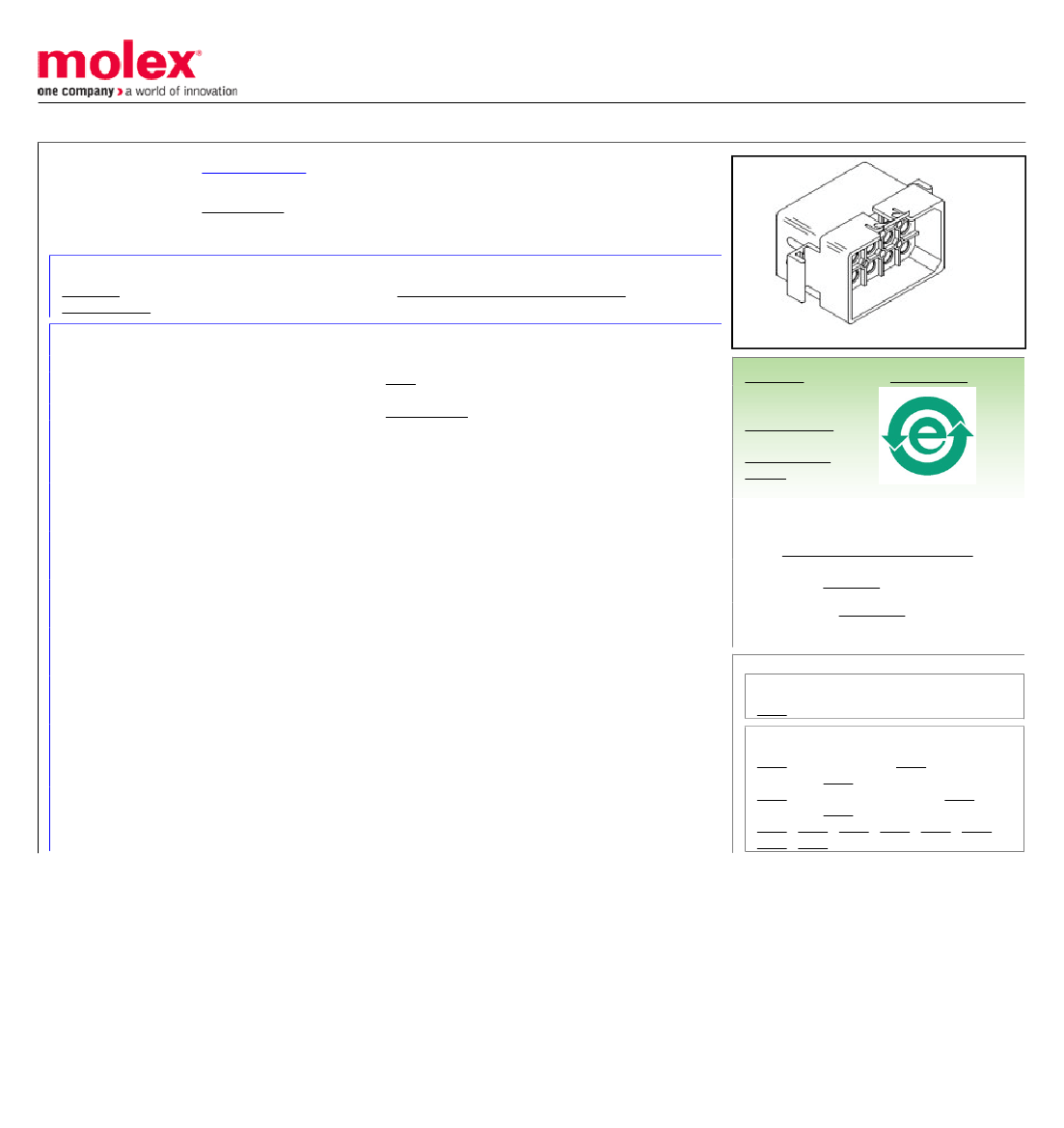

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0050362277
Active
standard_093
2.36mm (.093") Diameter, .093" Pin and Socket Plug Housing with Positive Latch, 15
Circuits, With Pull Tabs, Glow Wire Compatible
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
1991
Polarized to Mating Part
standard_093
Standard .093"
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
15
3x5
Black
Plug
Yes
None
Yes
Nylon
3
Bag
Yes
0.248 In
6.30 mm
0.248 In
6.30 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
1991Series
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1380 Male Crimp Terminals,
1381 Female Crimp Terminals, 1433 Crimp
Terminals, 1434 Male Crimp Terminals,
1973 , 2151 , 2273 , 2870 , 2871 , 4272 ,
4550 , 6271 , Lin
Material Info
Old Part Number
1991-15P-1
Reference - Drawing Numbers

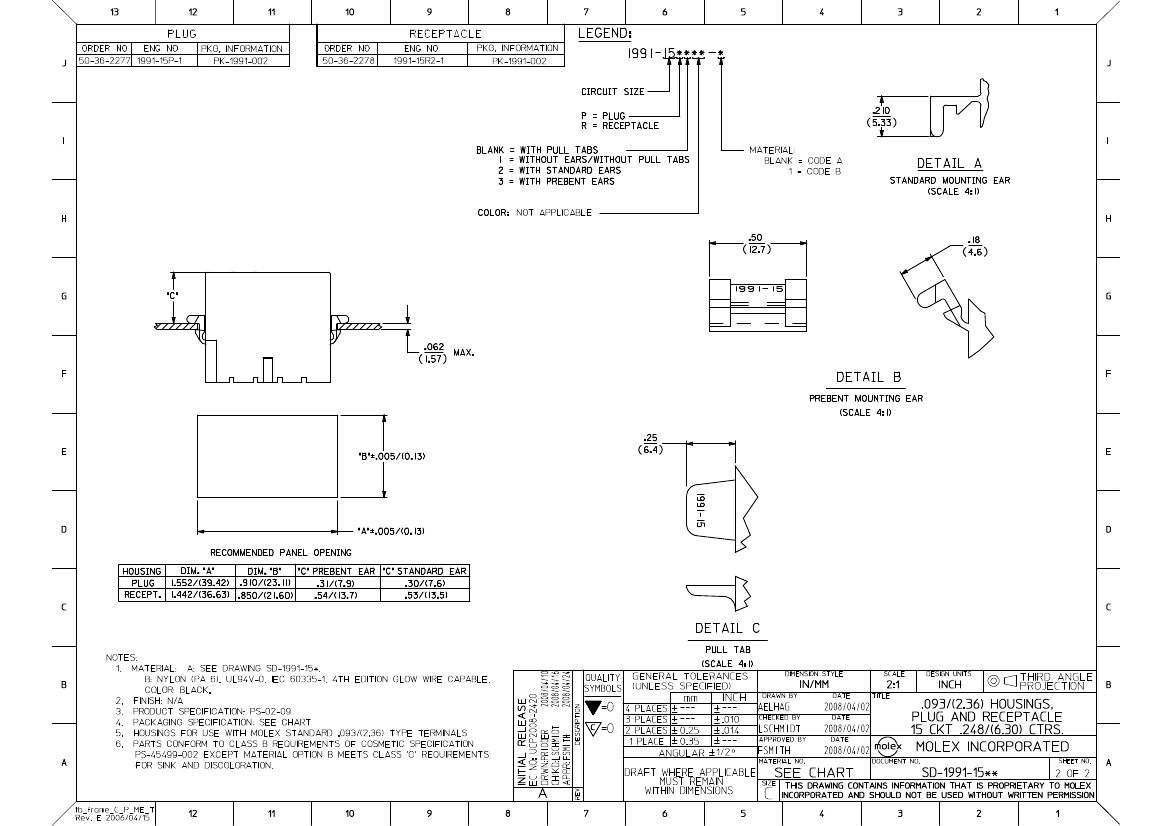

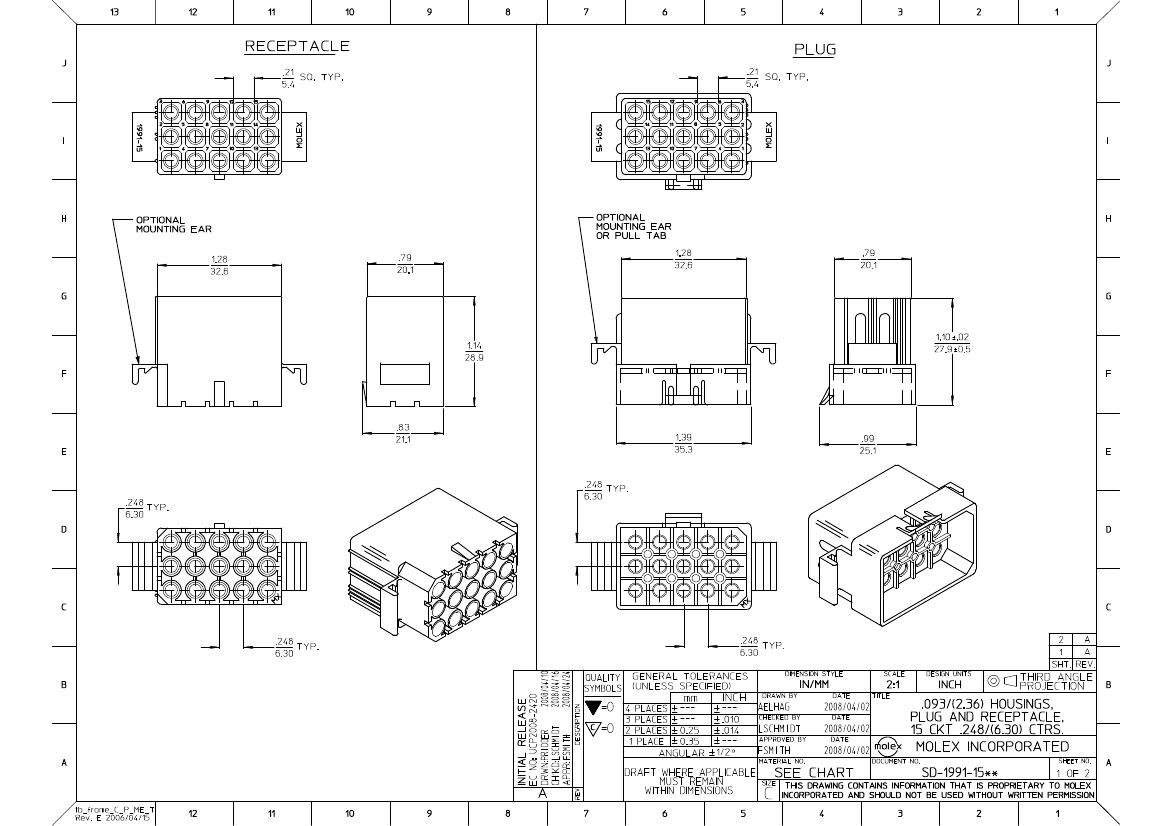

Sales Drawing
SD-1991-15**
