5962-9221405MRA datasheet, PDF

5962-9221405MRA: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20; Categorylogic logic; File Size234KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

5962-9221405MRA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-9221405MRA	-	-	View	Buy Now

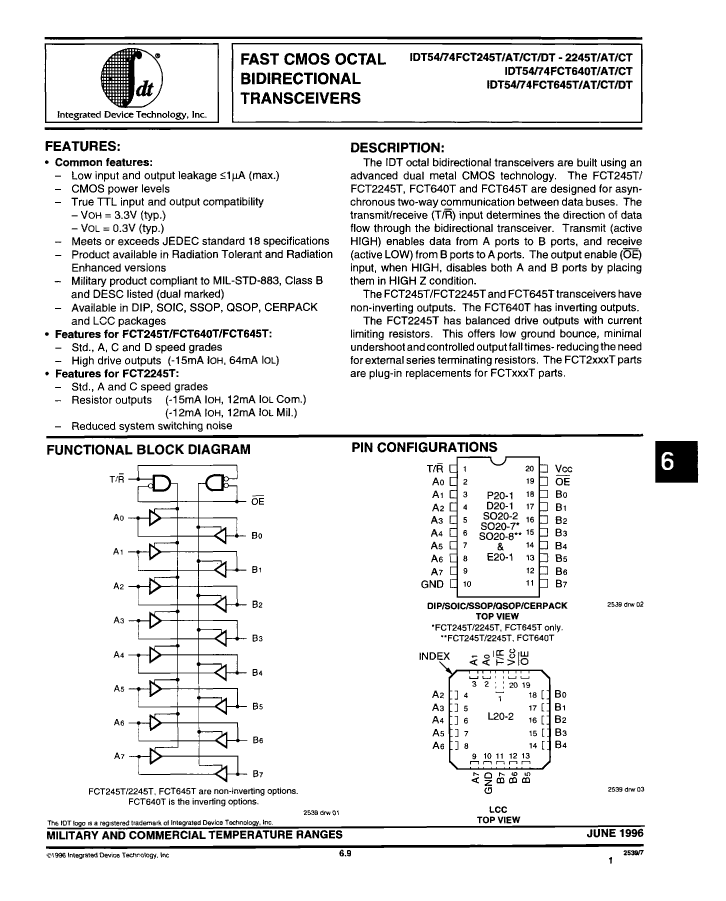

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20

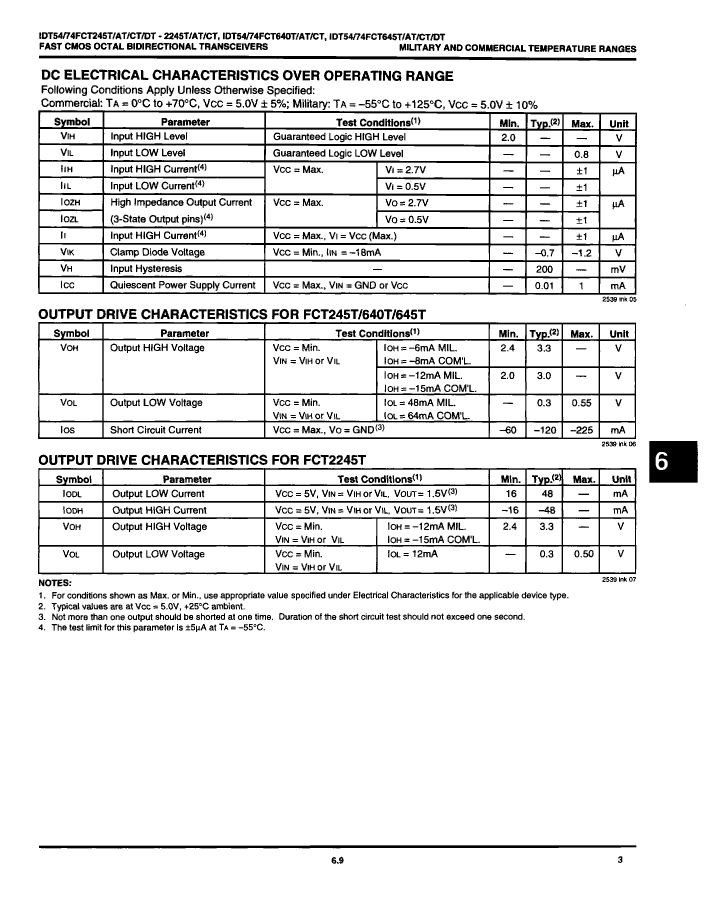

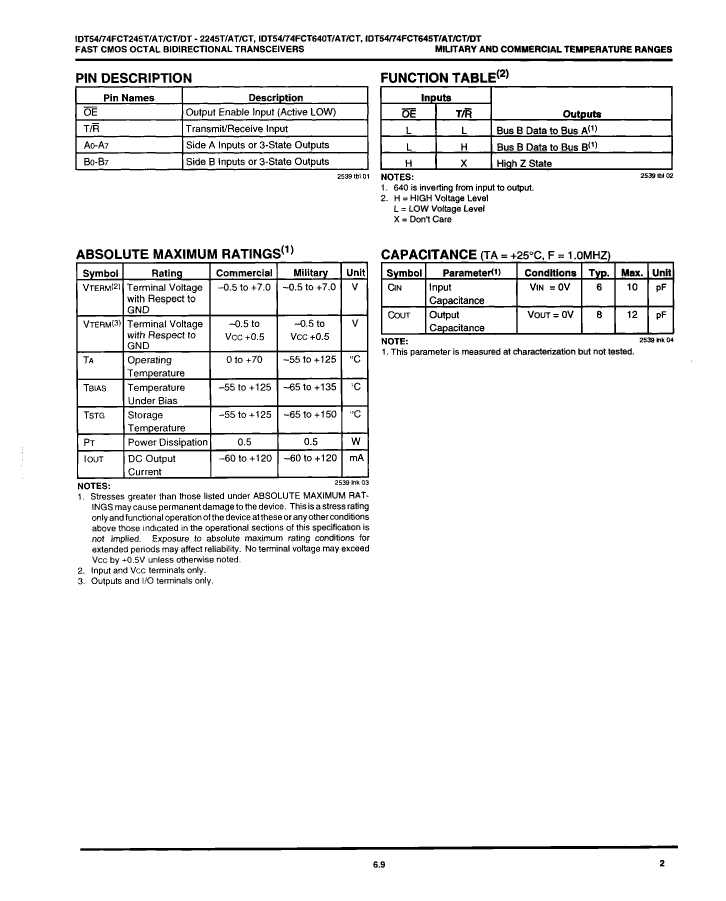

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP20,.3
Reach Compliance Code	not_compliant
Other features	WITH DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	25.3365 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240

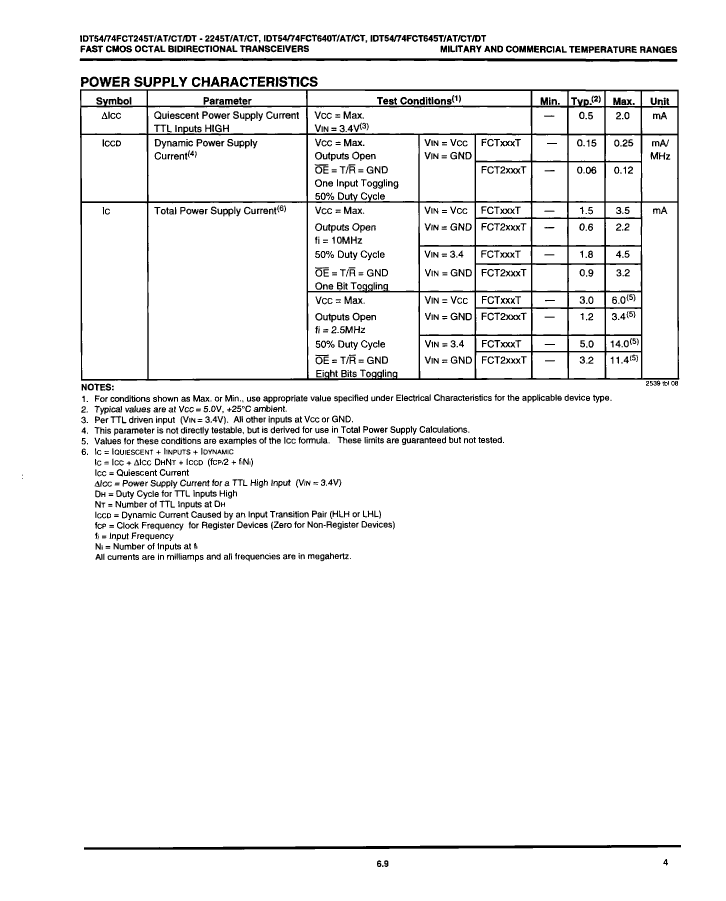

power supply	5 V

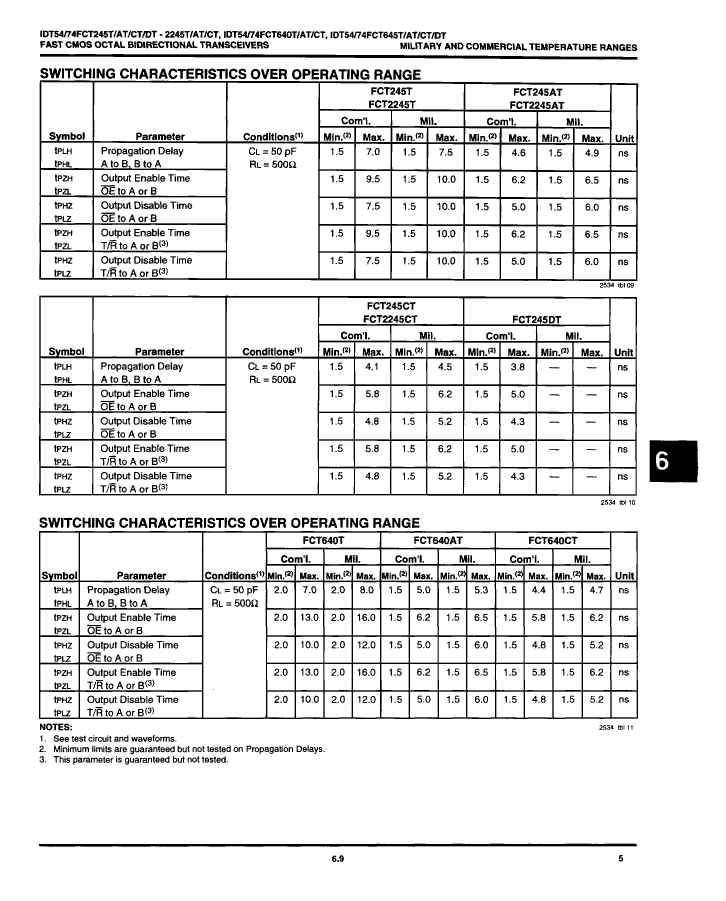

Prop。Delay @ Nom-Sup	4.5 ns
propagation delay (tpd)	4.5 ns
Certification status	Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	7.62 mm
