M15733/51-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> M15733/51-0001

M15733/51-0001: DescriptionData Line Filter, 1 Function(s), 200V, 10A,; CategoryAnalog mixed-signal IC filter; File Size482KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

M15733/51-0001 Overview

Data Line Filter, 1 Function(s), 200V, 10A,

M15733/51-0001 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
capacitance	5500 µF
diameter	4.95 mm
filter type	DATA LINE FILTER
Maximum insertion loss	70 dB
Manufacturer's serial number	M15733
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
physical size	D4.95XL9.52 (mm)/D0.195XL0.375 (inch)
Rated current	10 A
Rated voltage	200 V

Preview

Download Datasheet

View All

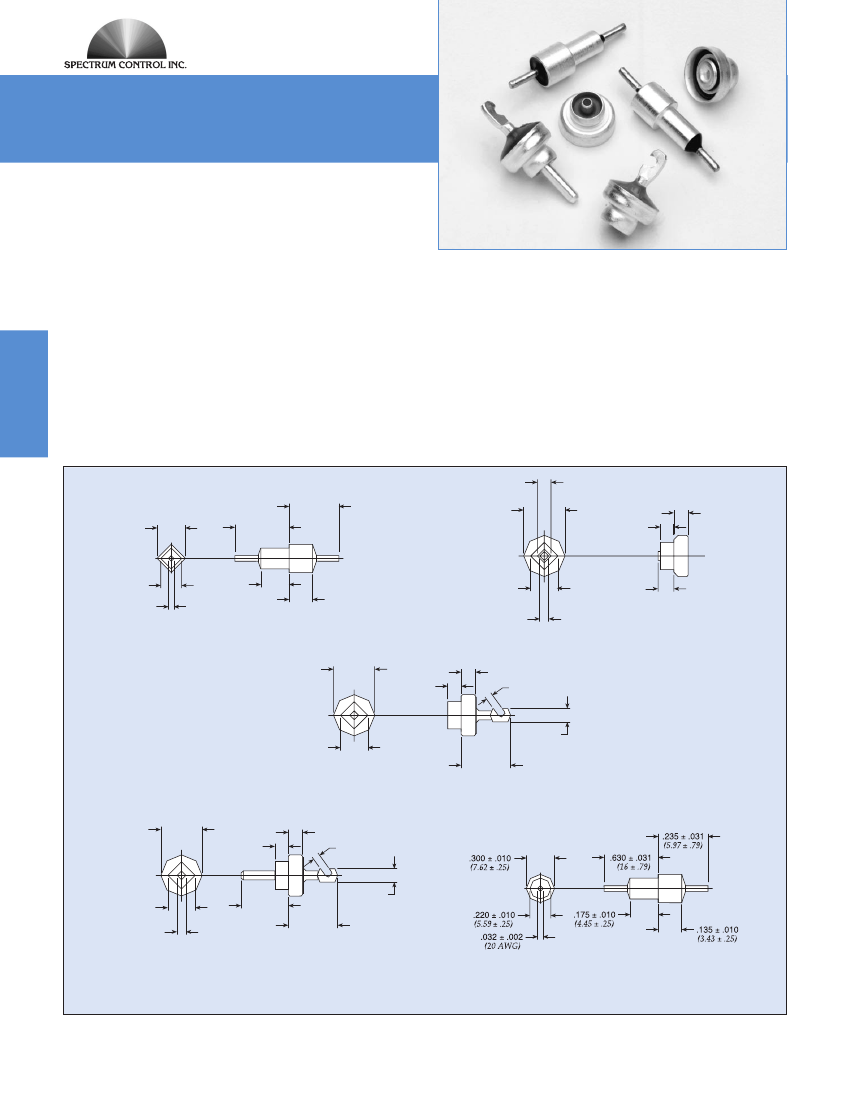

Solder-in Filters

Solder-in filters are ideal for use in critical areas where

space does not allow use of mounting tools or hardware.

The solder-in feature also allows installation in unison

with other board mounted components. Primarily used

in filtering signal/data lines and DC power lines.

Features

Small size to allow effective use of space

Voltage ratings to 750 VDC

Multiple circuit configurations: C, L & Pi available

High temperature construction to prevent reflow during installation

MIL-F-15733 QPL versions available

ø .062

.005

(ø 1.59

.13)

.359

.015

(9.11

.38)

ø B

.015

(ø B

.38)

.390

.030

(9.91

.76)

ø .281

.015

(ø 7.14

.38)

.093

.015

(2.38

.38)

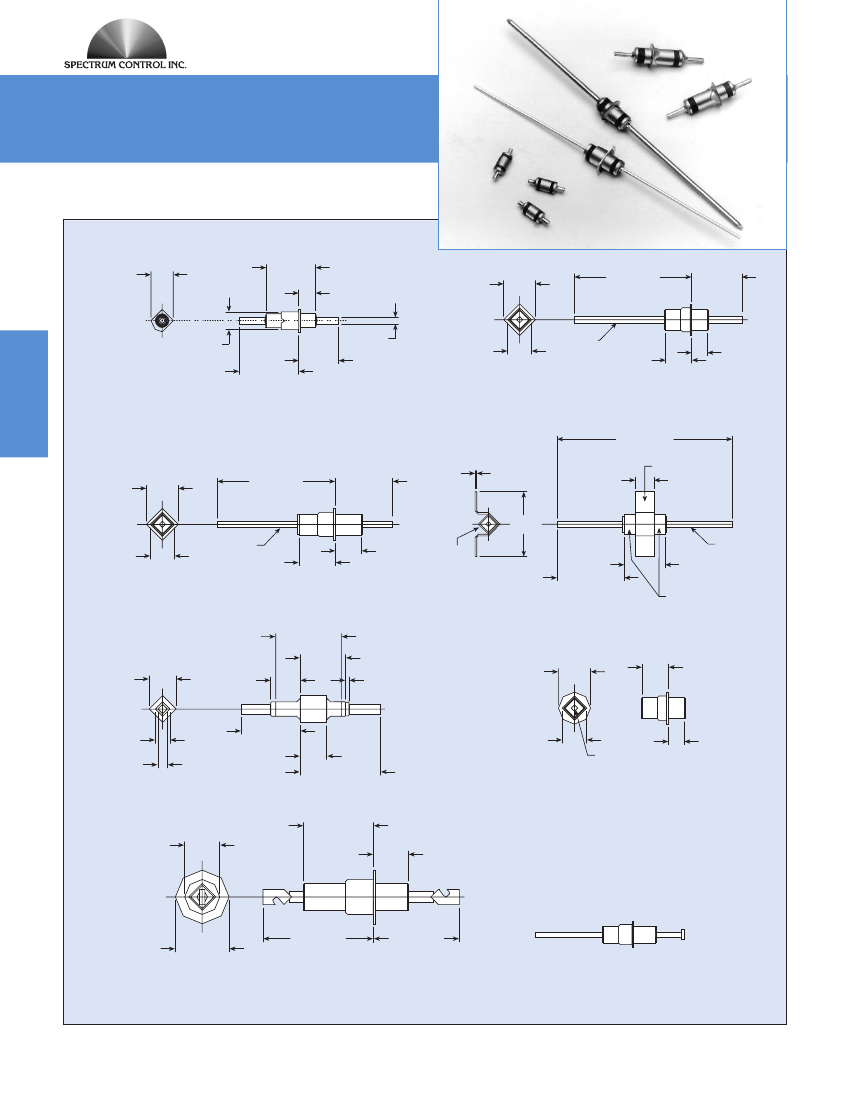

Low Pass Filters

.093

.015

(2.38

.38)

ø A Max.

(ø A Max.)

ø .040

.005

(ø 1.02

.13)

.203

.015

(5.15

.38)

.170

.030

(4.34

.76)

ø .190 Max.

(ø 4.83)

ø .044

.005

(ø 1.12

.13)

.140 Max.

(3.57 Max.)

Figure 1

ø .281

.015

(ø 7.14

.38)

Figure 2

.093

.015

(2.38

.38)

.05

.01

(1.27

.25)

.093

.015

(2.38

.38)

ø .190 Max.

(ø 4.83)

.093

.015

(2.38

.38)

.343

.030

(8.73

.76)

Figure 3

ø .281

.015

(ø 7.14

.38)

.093

.015

(2.38

.38)

.05

.01

(1.27

.25)

.093

.015

(2.38

.38)

ø .190 Max.

(ø 4.83)

ø .062

.005

(ø 1.59

.13)

.328

.030

(8.33

.76)

.093

.015

(2.38

.38)

.343

.030

(8.73

.76)

Figure 4

Figure 5

Dimensions in inches

(mm)

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

M15733/51-0001 Related Products

	M15733/51-0001	51-723-301	54-785-047	M15733/51-0002	M15733/66-0001	M15733/62-0002	M15733/33-0002	M15733/33-0001	M15733/40-0001
Description	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Feed Through Capacitor, 1 Function(s), 750V, 10A,	Data Line Filter, 1 Function(s), 70V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 500V, 25A,
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT	C-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT	PI-TYPE CIRCUIT
capacitance	5500 µF	5500 µF	1000 µF	22000 µF	1750 µF	1500 µF	1750 µF	1750 µF	3000 µF
diameter	4.95 mm	3.97 mm	7.62 mm	4.95 mm	4.95 mm	3.56 mm	4.95 mm	4.95 mm	7.92 mm
filter type	DATA LINE FILTER	DATA LINE FILTER	FEED THROUGH CAPACITOR	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
Maximum insertion loss	70 dB	65 dB	40 dB	70 dB	50 dB	70 dB	60 dB	60 dB	70 dB
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
physical size	D4.95XL9.52 (mm)/D0.195XL0.375 (inch)	D3.97XL9.95 (mm)/D0.156XL0.391 (inch)	D7.62XL7.88 (mm)/D0.3XL0.31 (inch)	D4.95XL9.52 (mm)/D0.195XL0.375 (inch)	D4.95XL11.3 (mm)/D0.195XL0.445 (inch)	D3.56XL8 (mm)/D0.14XL0.315 (inch)	D4.95XL6.32 (mm)/D0.195XL0.249 (inch)	D4.95XL6.32 (mm)/D0.195XL0.249 (inch)	D7.92XL15.85 (mm)/D0.312XL0.624 (inch)
Rated current	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A	25 A
Rated voltage	200 V	200 V	750 V	70 V	200 V	200 V	200 V	200 V	500 V
Maker	API Technologies	-	API Technologies	-	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Manufacturer's serial number	M15733	-	-	M15733	M15733	M15733	M15733	M15733	M15733
