3191-3P-201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3191-3P-201

3191-3P-201: Description3 CONTACT(S), FEMALE AND/OR MALE, POWER CONNECTOR, PLUG; CategoryThe connector; File Size183KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

3191-3P-201 Overview

3 CONTACT(S), FEMALE AND/OR MALE, POWER CONNECTOR, PLUG

3191-3P-201 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Total number of contacts	3
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	PLUG
Manufacturer Series	3191
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	POWER CONNECTOR
Connector male and female	FEMALE AND/OR MALE
empty shell	Yes
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE/PANEL
Shell material	POLYAMIDE
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0019092037

Active

standard_093

2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing With Positive

Latch, UL 94V-0, Panel Mount, 3 Circuits

Documents:

3D Model

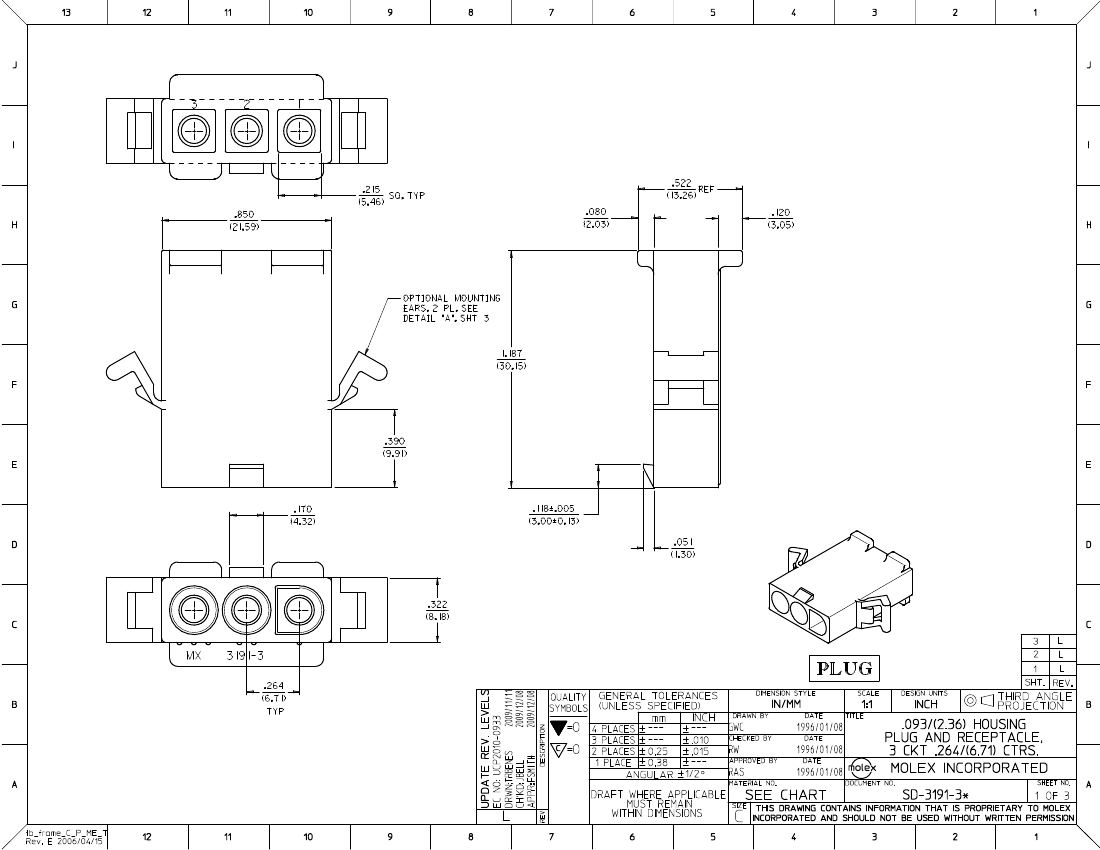

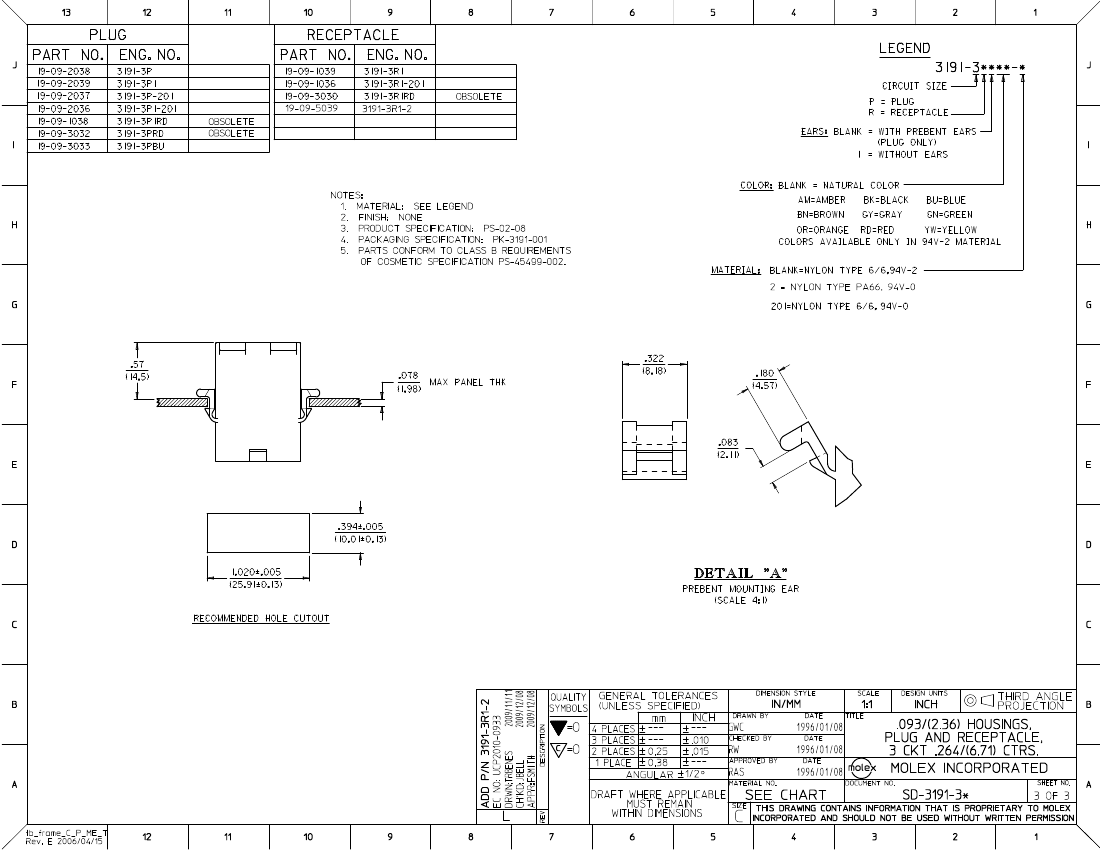

Drawing (PDF)

Packaging Specification (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

3191

Polarized to Mating Part, With Mounting Ears

standard_093

Standard .093"

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

1x3

Natural

94V-0

Dual

None

Yes

Nylon

Bag

Yes

0.264 In

6.71 mm

Yes

-40°C to +105°C

Search Parts in this Series

3191Series

Mates With

3191 Pin and Socket Recptacle, 5219

Vertical PCB Header

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1380 Male Crimp Terminals,

1381 Female Crimp Terminals, 1433 Crimp

Terminals, 1434 Male Crimp Terminals,

2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,

2871 , 4272 , Lin

Electrical

Current - Maximum per Contact

11A

Material Info

Old Part Number

3191-3P-201

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

PK-3191-001

SD-3191-3*

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
