36643-003 Overview

3 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG

Preview

Download Datasheet

View All

This document was generated on 04/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0366430003

Active

MLX

2.13mm (.084") Diameter MLX™ Plug Housing, 3 Circuit, PA Polyamide Nylon 6/6

94V-2, Glow Wire Compatible

Documents:

Drawing (PDF)

Product Specification PS-42022-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Overview

Product Name

Crimp Housings

36643

MLX

MLX™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

Plug

Yes

None

Yes

Nylon

Bag

0.250 In

6.35 mm

Yes

-55°C to +105°C

Search Parts in this Series

36643Series

Mates With

42022 Diameter MLX™ Pin and Socket

Receptacle

Use With

MLX Crimp Terminal 42023 , 42024

Material Info

Reference - Drawing Numbers

Product Specification

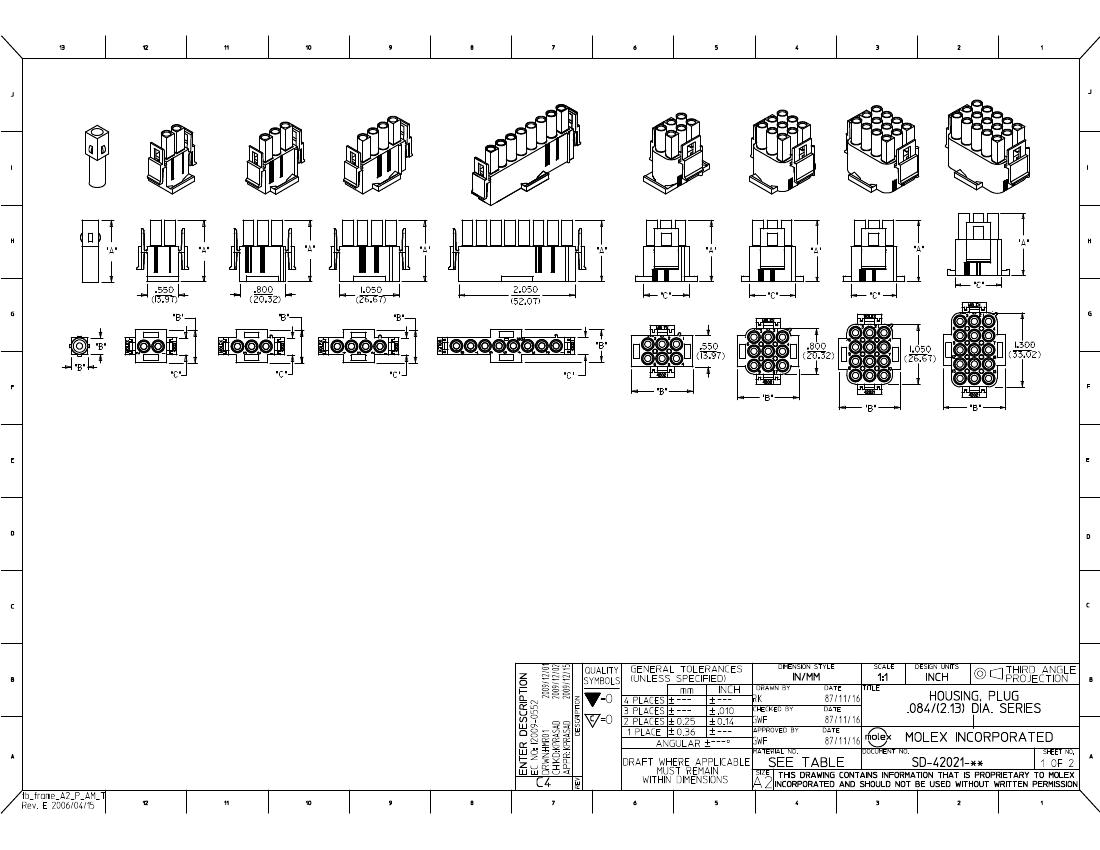

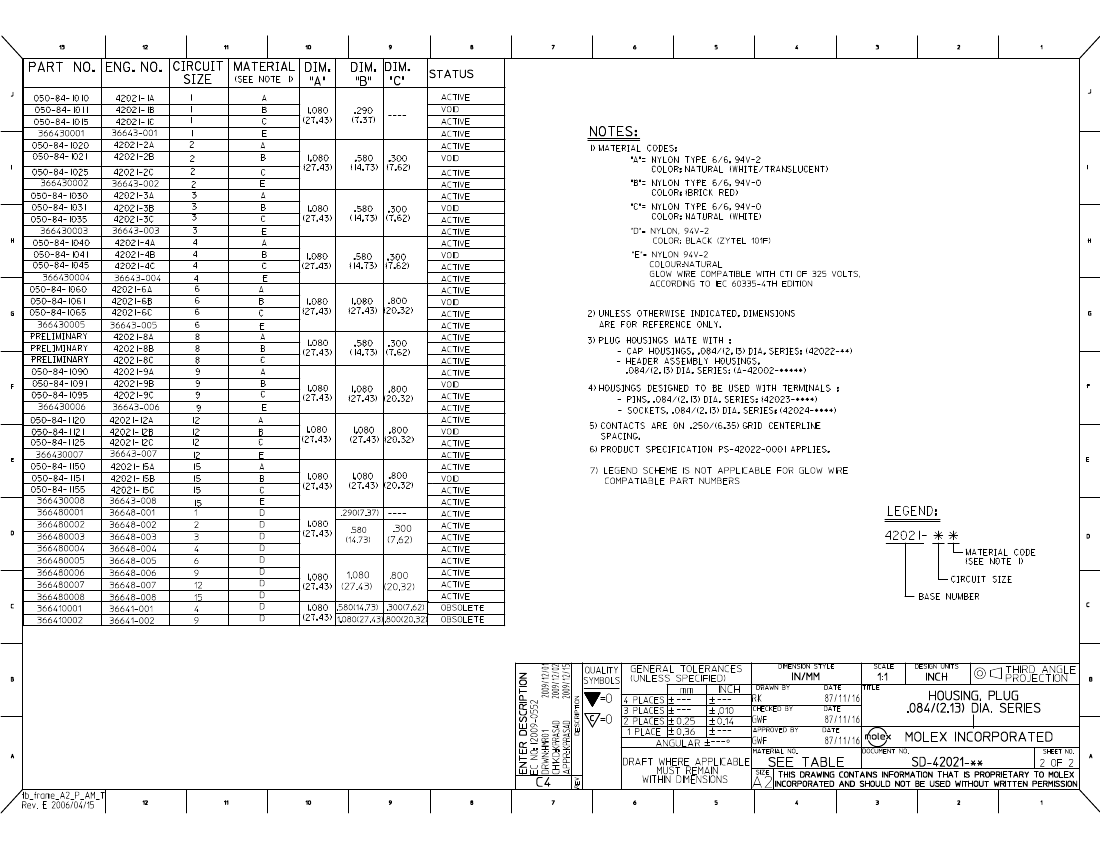

Sales Drawing

PS-42022-0001

SD-42021-**

This document was generated on 04/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
