50YXM22MEFCFA5X11 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 50YXM22MEFCFA5X11

50YXM22MEFCFA5X11: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size178KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50YXM22MEFCFA5X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

50YXM22MEFCFA5X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.011 mA
length	11 mm
Manufacturer's serial number	YXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	60.5 mA
series	YXM
surface mount	NO
Delta tangent	0.19
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

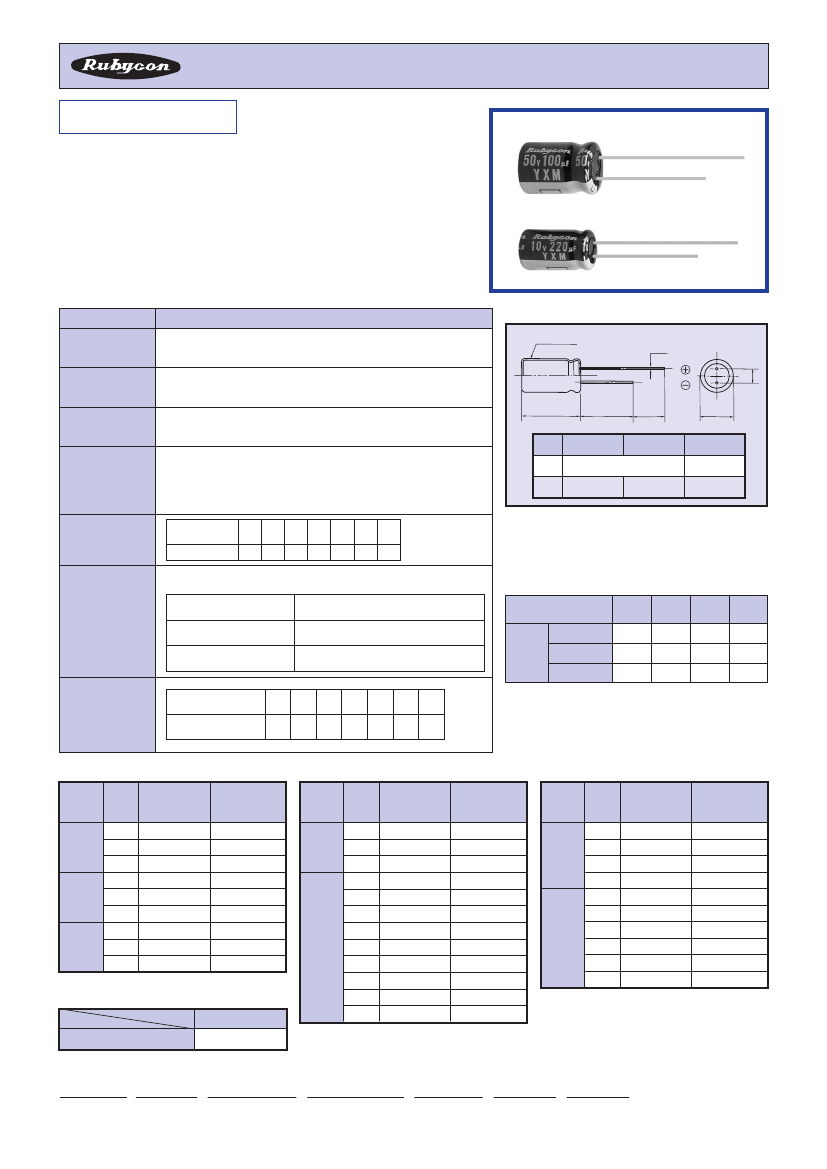

小½アルミニウム電解コンデンサ

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXM

シリーズ

SERIES

105℃ 10000時間品小½化品

Load Life : 105℃ 10000 hours, Miniaturized.

◆特長／FEATURES

・・

小½ 長寿½品。

Miniaturized Long Life.

・

RoHS指令対応品。

RoHS compliance.

◆規格表／SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−25∼＋105℃

10∼100V.DC

◆寸法図／DIMENSIONS

（mm）

スー

リブ

SLEEVE(PET)

定格電圧範囲

Rated Voltage Range

L＋1.5MAX

15MIN

4MIN

φD＋0.5MAX

静電容量許容差

Capacitance Tolerance

±20％

（20℃，

120Hz）

φD

0.5

2.0

2.5

6.3

0.6

3.5

漏れ電流

Leakage

Current(MAX)

I＝0.01CV又は3μAのいずれか大なる値以下

（定格電圧印加2分後)

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes)

φd

I＝漏れ電流(μA)

C＝静電容量(μF) V＝定格電圧(V)

Leakage Current Capacitance Rated Voltage

定格電圧(V)

120Hz）

10 16 25 35 50 63 100

（20℃，

Rated Voltage

tanδ

0.45 0.35 0.30 0.22 0.19 0.17 0.15

損失角の正接 (tanδ)

Dissipation Factor(MAX)

105℃,10000時間定格電圧プル重畳）

（リ

印加後、

下記項目を満足するこ

と。

After applying rated voltage with rated ripple current for 10000 ½ ½½ at 105℃, the capacitors shall meet the following requirements.

½½

◆リ

プル電流補正係数／

MULTIPLIER FOR RIPPLE CURRENT

周波数係数 Frequency Coeﬃcient

周波数

（Hz）

Frequency

耐

久

性

Endurance

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

定格電圧(V)

Rated Voltage

初期値の±25％以内

Within ±25％ of the initial value.

規格値の300％以下

Not more than 300％ of the speciﬁed value.

規格値以下

Not more than the speciﬁed value.

63 100

（120Hz）

120

0.42

0.55

0.70

0.60

0.75

0.85

10k

0.80

0.90

0.95

100k≦

1.00

1∼10μF

Coeﬃcient

係数

22∼33μF

47∼330μF

½温特性

Low Temperature

Stability

（インピーダンス比）

Impedance Ratio(MAX)

（−25℃）（20℃） 8

◆標準品一覧表／STANDARD SIZE

Size φD×L(mm), Ripple Current (mA r.m.s./105℃, 100kHz)

(V.DC)

(1A)

(1C)

(1E)

Cap

(μF)

100

220

330

100

220

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

5×11

6.3×11

Rated Ripple

Current

130

210

330

130

210

330

130

210

(V.DC)

(1V)

Cap

(μF)

100

2.2

3.3

4.7

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

130

210

330

135

190

270

(V.DC)

(1J)

Cap

(μF)

2.2

3.3

4.7

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

170

240

150

230

(1H)

100

(2A)

◆副記号／OPTION

記号

Code

PETスーブ

PET Sleeve

リ

Ｅ

ＦC

◆呼称方法／PART NUMBER

□□□

定格電圧

Rated Voltage

YXM

シーズ名

リ

Series

□□□□□

静電容量

Capacitance

静電容量許容差

Capacitance Tolerance

□□□

副記号

Option

□□

リー

ド加工記号

Lead Forming

D×L

ケースサイズ

Case Size

±0.5

φd

50YXM22MEFCFA5X11 Related Products

	50YXM22MEFCFA5X11	50YXM1MEFCFA5X11	50YXM1MEFCKC5X11	50YXM22MEFCKC5X11	50YXM10MEFCFA5X11	50YXM10MEFCKC5X11
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	22 µF	1 µF	1 µF	22 µF	10 µF	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	0.011 mA	0.003 mA	0.003 mA	0.011 mA	0.005 mA	0.005 mA
length	11 mm	11 mm	11 mm	11 mm	11 mm	11 mm
Manufacturer's serial number	YXM	YXM	YXM	YXM	YXM	YXM
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V
ripple current	60.5 mA	10.5 mA	10.5 mA	60.5 mA	37.8 mA	37.8 mA
series	YXM	YXM	YXM	YXM	YXM	YXM
surface mount	NO	NO	NO	NO	NO	NO
Delta tangent	0.19	0.19	0.19	0.19	0.19	0.19
Terminal pitch	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	rubycon	-	-	rubycon	rubycon	rubycon
