395430602 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395430602

395430602: Description5.00mm; CategoryThe connector terminals; File Size182KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395430602 Overview

5.00mm

395430602 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	_compli
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

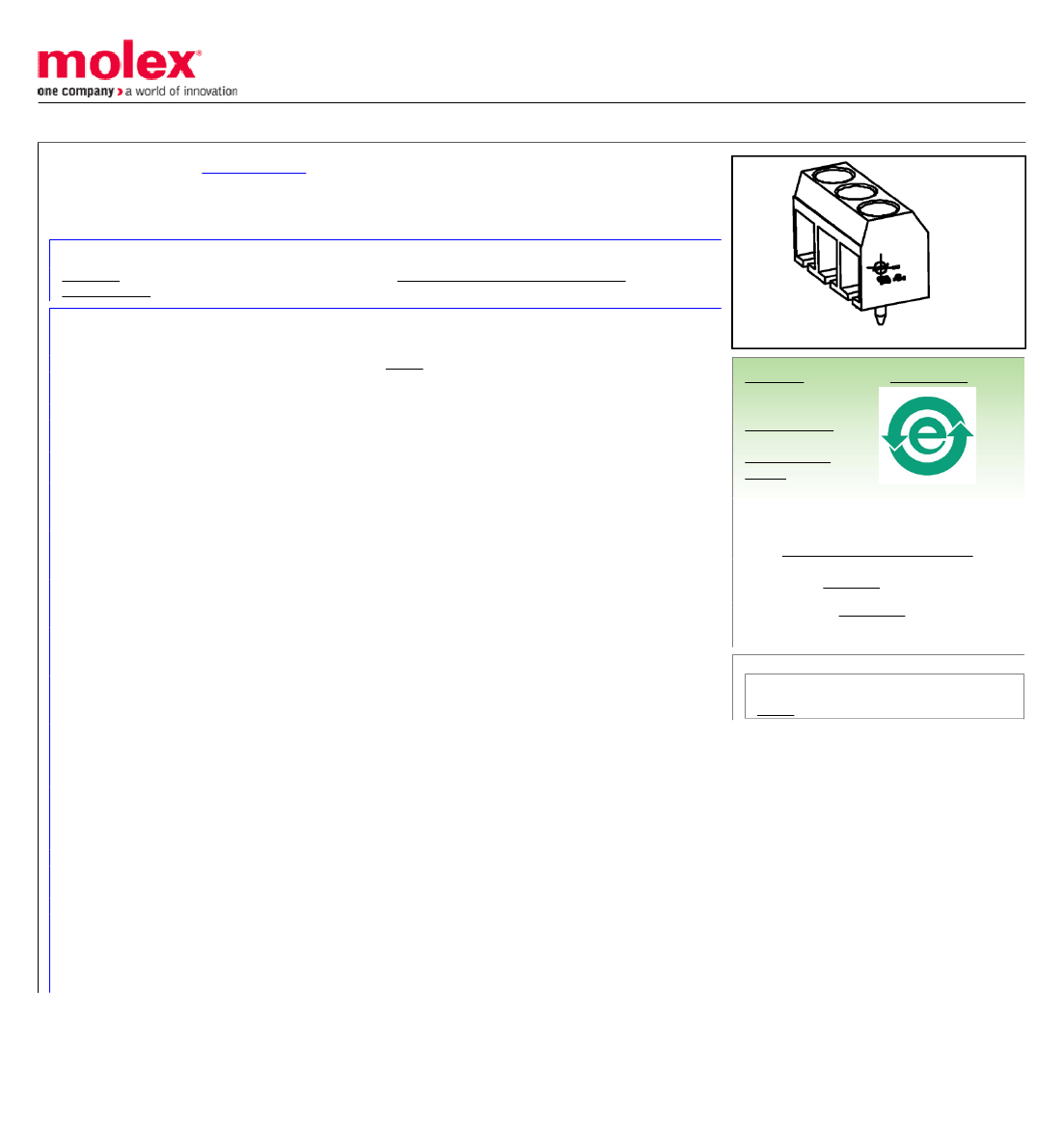

0395430602

Active

5.00mm (.197") Pitch Eurostyle™ Vertical Fixed Mount PCB Terminal Block, Low

Profile, 2 Circuits

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39543

Wire-to-Board

One Piece

USA-355

ESE, Eurostyle™Fixed Mount

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

None

Vertical

0.114 In

2.90 mm

0.080 In

2.00 mm

0.197 In

5.00 mm

N/A

-40°C to +105°C

14, 16, 18, 20, 22

0.33 - 2.08

Search Parts in this Series

39543Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Wave Capable (TH only)

135

260

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-39501-002, SD-39543-004

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
