REVISION AR
DO NOT
SCALE FROM
THIS PRINT
NOTES:
AR
AR
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM CONTACT PUSHOUT FORCE: 1 LB.
3. MAXIMUM ALLOWABLE BOW .003[0.08] IN/IN AFTER ASSEMBLY.
4. FOR A 1 POSITION SINGLE ROW ALL SPACERS ARE TO BE LBS-S.
5. SPACERS SHALL BE ASSEMBLED AS SHOWN WITH SNAP GROOVES AWAY FROM SSW BODY.
6. SINGLE ROW, 33 POS PART TO USE 31 POS AND 2 POS SPACERS.
ESW-1XX-XX-X-X-XX-XX
LOCKING LEAD OPTION
-LL (SEE FIG 4, SHT 2)
(N/A ON 1 OR 2
POSITION SINGLE ROW)
POLARIZING OPTION
INDICATES POS
(SEE FIG 3, SHT 2)
ROW SPECIFICATION
-S: SINGLUE (USE SSW-50-S)
-D: DOUBLE (USE SSW-50-D)
PLATING SPECIFICATION
-G: 20µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-T: MATTE TIN ON ENTIRE PIN.
(STANDARD INSERTION FORCE ONLY)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 30µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-E: 50µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
CONTACT STYLE
SOLDER TAIL
STANDARD INSERTION USE C-8-X-X
LOW INSERTION USE C-17-X-X
(SEE TABLE 1)
BODY LENGTH SPEC
POSITIONS 01 THRU 36 (SEE FIG 1)
(SEE NOTE 4 FOR ONE POSITION
SINGLE ROW)
(FOR 33 POS, SEE NOTE 6)
LEAD STYLE SPECIFICATION
(SEE TABLE 1)
C
(NO OF POS x .100[2.54] + .020[0.54]±.010[0.25]
.100 2.54 REF
.095 2.41 REF
"C"±.010[0.25]
C
"D"±.010[0.25]
SSW-XX-X
SIB-SSB-32
(SEE NOTES 4 &5)
C
"B"±.010[0.25]
2 MAX SWAY
(EITHER DIRECTION)
.031 0.79 x .016[0.41] REF
(NO OF POS x .100[2.54]
+.005[0.13]
-.015[0.38]
LBS-36-S
CONTACT
2 MAX SWAY
(EITHER DIRECTION)
ESW-1XX-XX-X-S SHOWN

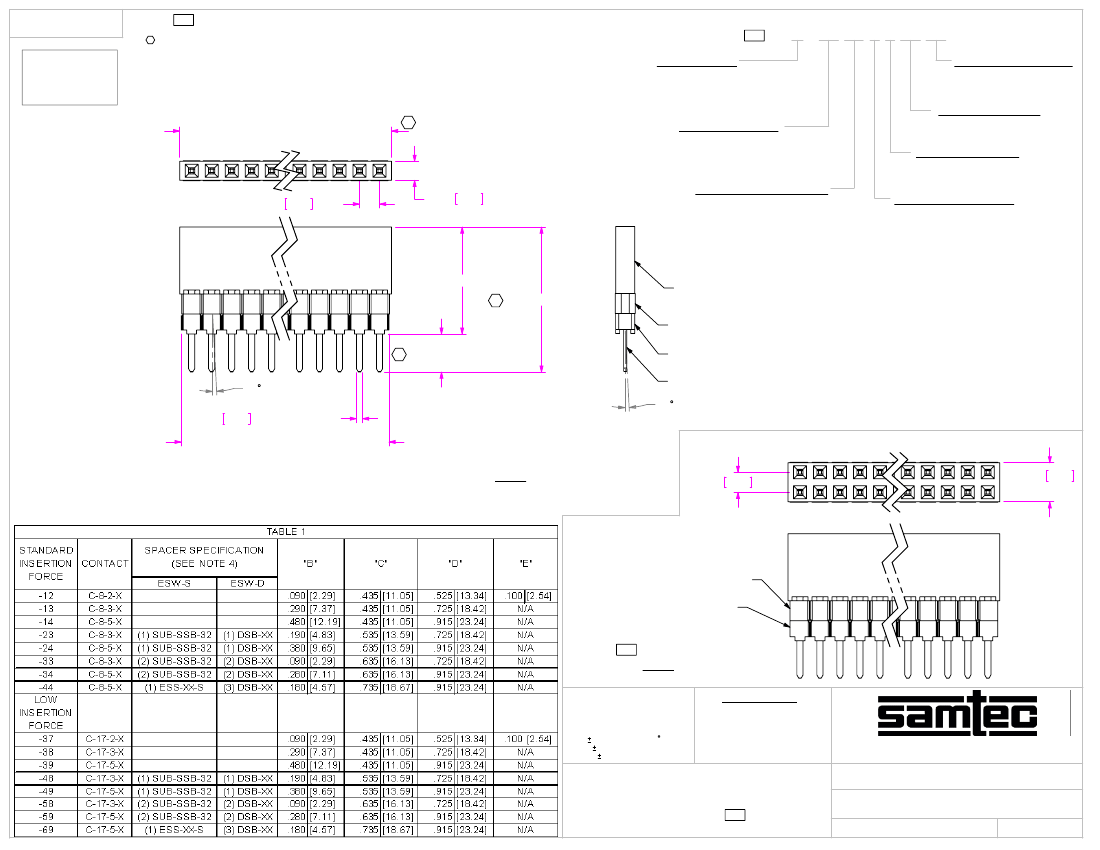

FIG 1
.100 2.54 REF
.195 4.95
REF
DSB-XX
(SEE NOTE 5)
ESW-XX-D
AR
ESW-1XX-XX-X-D SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
FIG 2
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
SSW: LCP, UL 94 VO, COLOR: BLACK
SSB, ESS, DSS: PBT, UL 94 V0, COLOR: BLACK
LBS: HTN, UL 94 V0, COLOR: BLACK
CONTACT: PHOS BRONZE
ESW STRIP ASM.
AR
ESW-1XX-XX-X-X-XX-XX
07/16/1985
SHEET
1
OF
2
F:\DWG\MISC\MKTG\ESW-1XX-XX-X-X-XX-XX-MKT.SLDDRW
BY:
JORDAN
REVISION AR
PK-06-N
PK-06-N
.04 0.9
.008
- .000
0.20
+.005
+0.13
0.00
(TYP)
"B"±.010[0.25]
AR
AR

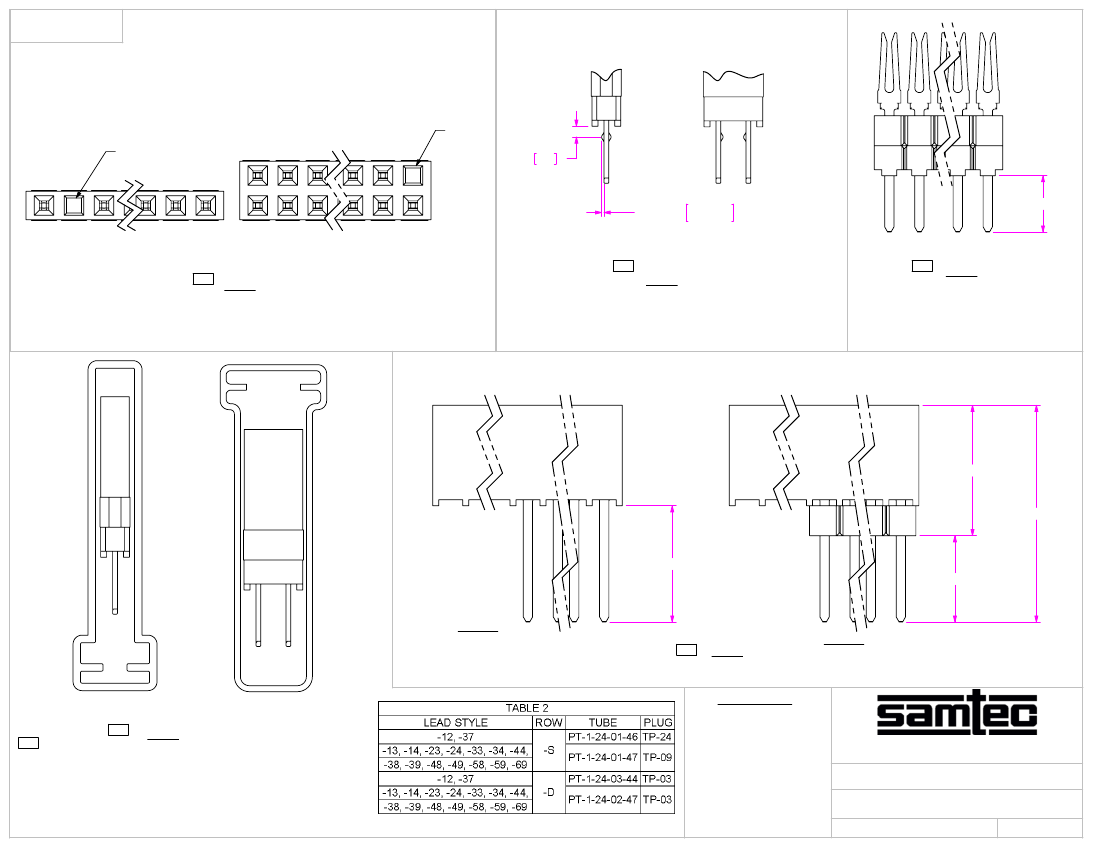

POLARIZATION LOCATION
INSERT PK-06-N INTO SPECIFIED POS AND BREAK OFF TAB
(ESW-1XX-XX-X-X-02 SHOWN)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 3
LOCKING LEAD OPTION
LOCATED ON OR ABOUT THE CENTERLINE
(N/A IN 1 OR 2 POSITION SINGLE ROW)
FIG 4
AR
FIG 5
IN PROCESS 'A'
(LEAD STYLES -13, -14, -23, -24, -33, -34,
-44, -38, -39, -48, -49, -58, -59, -69)
"C"±.010[0.27]
"D"±.010[0.27]
"B" + "E"
"B"±.010[0.27]
STEP 1
STEPS:
1. MACHINE FILL SSW-50-D TO 36 POS.
2. MOUNT ESW-36-D.
3. ROTO CUT TO POS. (SEE FIG 1)
AR
FIG 6
IN PROCESS 'B'
(LEAD STYLES -12 & -37)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
STEP 2
AR
FIG 7
AR
TUBE VIEWS
NOTE:
FOR -12 & -37 LEAD STYLES, TUBE PACKAGE -05 THRU -36
POSITIONS ONLY
FOR -13, -23, -33, -38, -48 & -58 LEAD STYLES, TUBE PACKAGE
-08 THRU -36 POSITIONS ONLY.
FOR -14, -24, -34, -39, -44, -49, -59, & -69 LEAD STYLES TUBE
PACKAGE -05 THRU -36 POSITIONS ONLY.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
ESW STRIP ASM.
ESW-1XX-XX-X-X-XX-XX
07/16/1985
SHEET
2
OF
2
F:\DWG\MISC\MKTG\ESW-1XX-XX-X-X-XX-XX-MKT.SLDDRW
BY:
JORDAN
