ET60S-05-30-09-L-VP-GP

Description
Board Connector, Female, Straight, Press Fit Terminal, Guide Slot, Black Insulator
CategoryThe connector    The connector
File Size451KB,4 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

ET60S-05-30-09-L-VP-GP Overview

Board Connector, Female, Straight, Press Fit Terminal, Guide Slot, Black Insulator

ET60S-05-30-09-L-VP-GP Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
body width0.709 inch
subject depth0.566 inch
body length4.305 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance15 mΩ
Contact styleHYBRID
Dielectric withstand voltage900VAC V
Durability100 Cycles
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial numberET60S
Mixed contactsYES
Installation option 1GUIDE SLOT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Plating thickness10u inch
Rated current (signal)24 A
reliabilityCOMMERCIAL
Terminal length0.111 inch
Termination typePRESS FIT
REVISION E
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
24
09
"B" REF
(SEE TABLE 1, SHT 3)

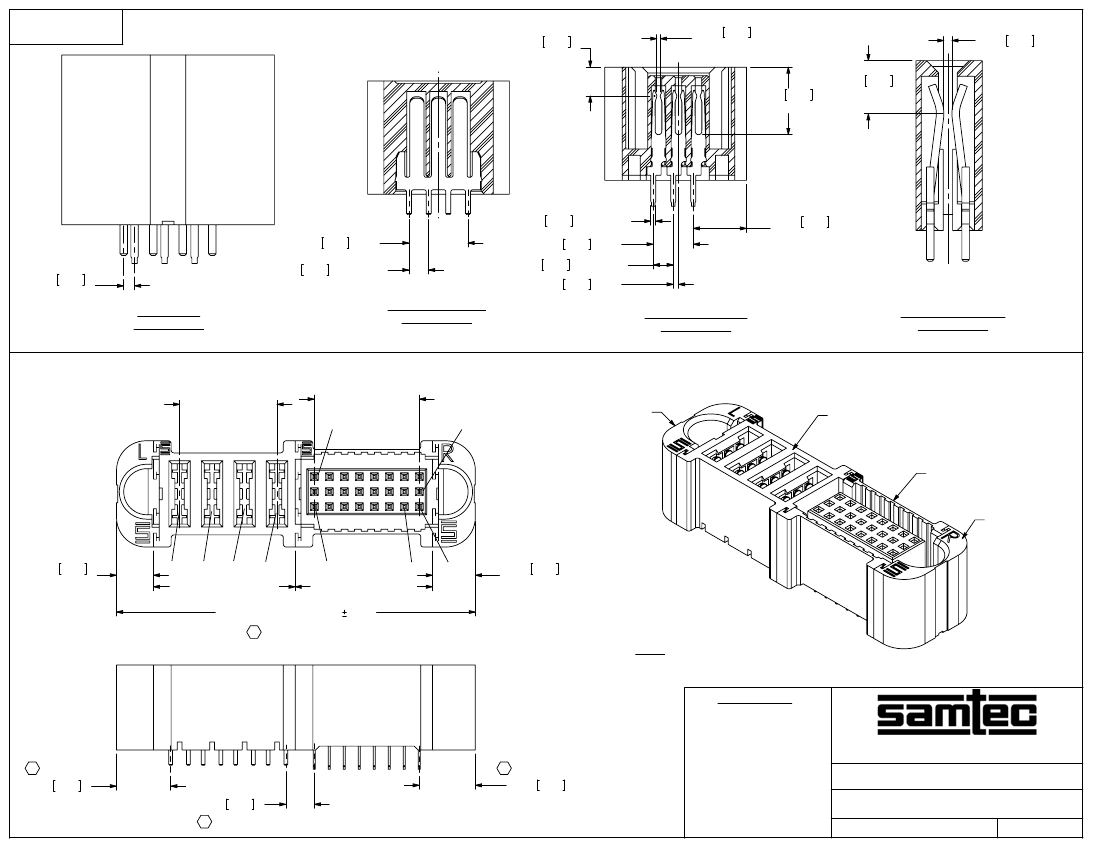

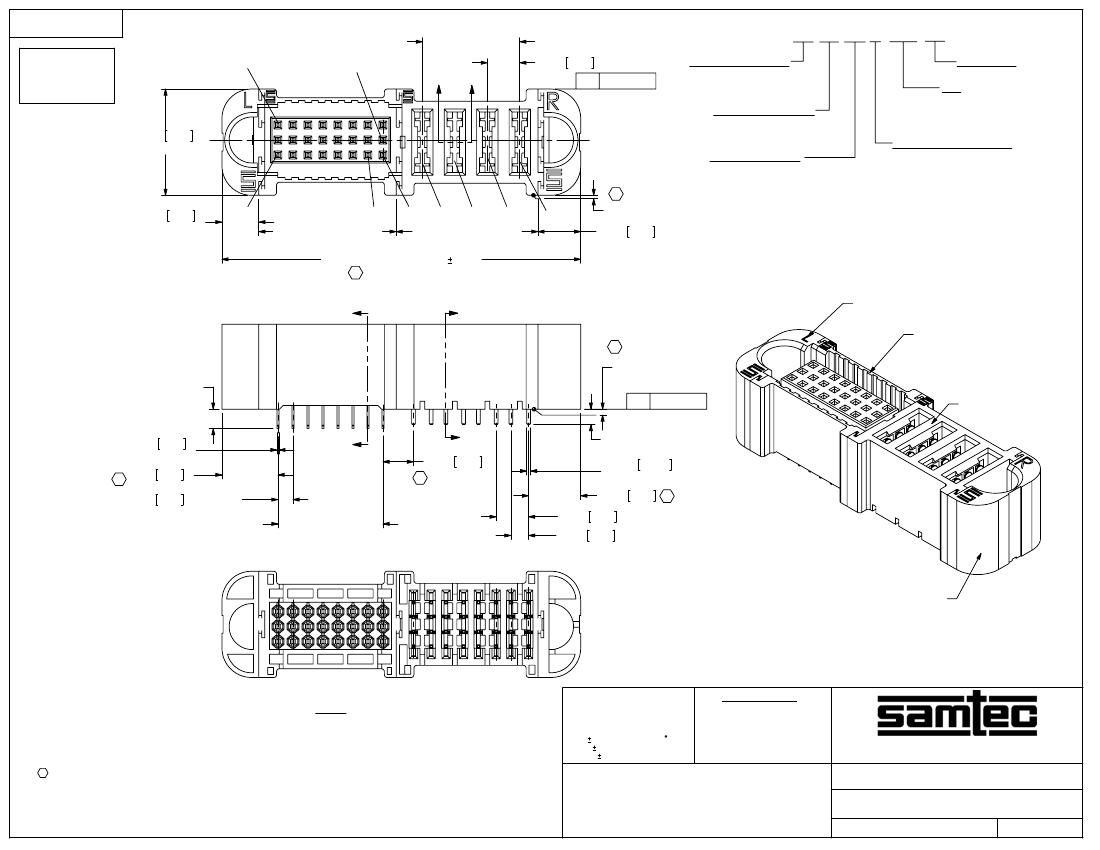

ET60S-XX-XX-XX-X-VXX-GP
5.50 .217 REF (TYP)
S/S 0.20[.008]
POWER POS (RIGHT)
-00, *-01, -02, -03, -04, *-05,
-06, *-07, *-08, *-09, *-10
SIGNAL POS (TOTAL)
-00, *-06, *-12, *-18,
-24,*-30, *-36
POWER POS (LEFT)
-00, *-01, -02, -03, -04, *-05,
-06, *-07, *-08, *-09, *-10
GUIDE POST
TAIL
-VT1: VT-TH, .062" PCB
*-VT2: VT-TH, .093" PCB
-VP: PRESS FIT
PLATING SPECIFICATION
-L: 10 µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30 µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
"C" "C"
18.00 .709 C
L
REF
6.25 .246
REF
08
02
"C" REF
(SEE TABLE 2, SHT 3)
01
P04
P03
P02
C
P01
0.00±0.20[.008] (TYP)
7.25 .285 REF
"A" REF
(SEE TABLE 1, SHT 3)
(* = NOT TOOLED)
(** = NON-RELEASED FOR PRODUCTION)
("A" + "C" + 13.50[.531]) 0.20
C
"A"
"B"
C
0.00±0.10[.004]
(TYP)
T/B 0.20[.008]
ET60S-VT-L-G
SUB-ET60S-XX-X-VT-S
"E" REF
(SEE TABLE 3,
SHT 3)
SUB-ET60S-XX-X-VT1-DC
0.32 .013
REF (TYP)
C 9.49 .374
2.54 .100 REF (TYP)
"A"
C
"D" REF
(SEE TABLE 2, SHT 3)
"B"
5.17 .204
"F" REF
(SEE TABLE 3, SHT 3)
0.635 .0250
SQ REF (TYP)
8.82 .347 C
5.50 .217 REF (TYP)
3.00 .118 REF (TYP)
ET60S-VT-R-G
ET60S-04-24-00-X-VT1-GP SHOWN
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 3.0 LBS FOR SIGNAL & POWER PINS.
3. CONTACT SAMTEC FOR CONNECTOR PRESS FIT INSTRUCTIONS AND REQUIRED FIXTURES.
4. MAXIMUM BURR ALLOWANCE: 0.038[.0015].
5. ASSEMBLIES TO BE PACKAGED IN TRAYS.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
INSULATOR: LCP, COLOR: BLACK
SIGNAL CONTACT: COPPER ALLOY
POWER CONTACT: COPPER ALLOY
F:\DWG\MISC\MKTG\ET60S-XX-XX-XX-X-VXX-GP-MKT.SLDDRW
VERTICAL SOCKET ET60 POWER ASSEM
BY:
ROY LUO
ET60S-XX-XX-XX-X-VXX-GP
08/02/2011
SHEET
1
OF
4
